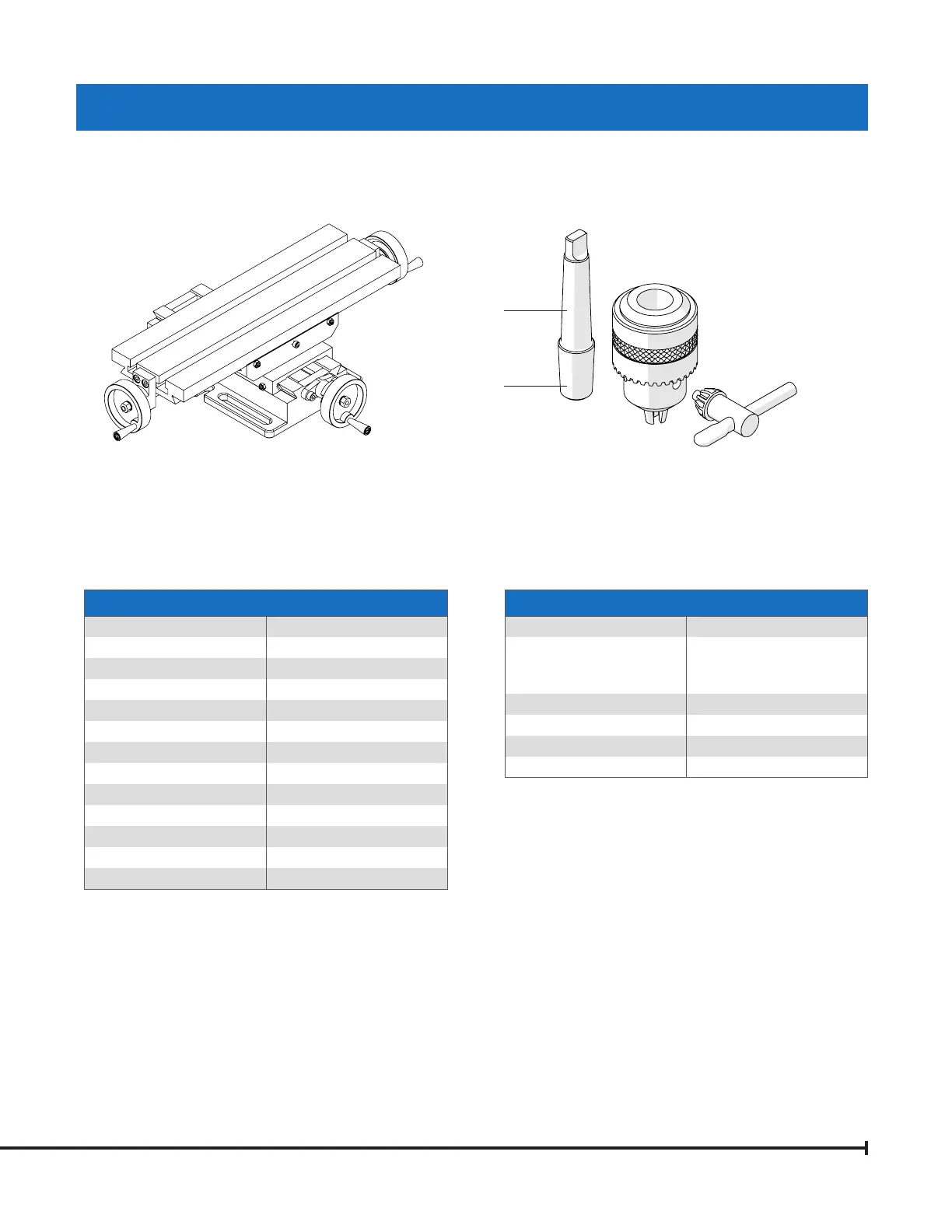

MILLING TABLE
The 9400 is a drill press designed for drilling
and tapping. It can provide support for those
quick and light milling jobs and is heavy, precise
and accurate.
The JT4 drill chuck is designed for heavy-duty drilling
applications. The chuck and arbor is ground with high
precision for accuracy and efciency. For best results,
tighten the chuck using ALL 3 chuck pilot holes.
Milling Table Specications
Part # 1003
Action Screw with ball bearings
X Travel 10.63"
Y Travel 4.72"
Cross Travel 7.5"
Longitudinal Travel 11"
Table Length 18.62"
Table Width 6.14"
Base Length 12"
Base Width 8.19"
Height 5.28"
Longitudinal T-Slots Two (2)
Weight 62 lbs
Drill Chuck Specications
Part # 8649
Description
Includes: Drill Chuck
(8649), Arbor (4981),
11 Point Key (8650)
Capacity 1/8"–3/4"
Chuck Taper JT4
Arbor Taper MT3 / JT4
Weight 5.78 lbs
DRILL CHUCK & ARBOR 8649
8650
8649
4981
ACCESSORIES
MT3
JT4
