7
1.800.383.5547
VARIABLE SPEED CONTROL BOX
SET UP
Important: Do not plug into
a GFCI circuit.
It is highly recommended to shift into High Torque
using the Torque Bolt Range ASSY. (For larger
diameter drills, tapping and hole saws, see page 8
for more information.)
1. Start Turn the Red Emergency Stop Button
clockwise (in the direction of the arrows) so that
the button will pop out and the read out window
will light up. Flip the Forward/Reverse switch to
the reset position, then to the desired direction of
forward or reverse.
2. Speed Change The black dial in the upper
left hand corner regulates the spindle speed.
(120 HZ = 100% of the spindle speed)
See page 9 for RPM matrix. It works in both
the forward and reverse mode.
3. Forward Toggle Switch Position (#4767)
Use the Forward Switch Position for standard
drilling, tapping and hole saw cutting.
4. Reverse Toggle Switch Position (#4767)
Use the Reverse Switch Position to retract a tap
or to tap a left hand thread. Keep downward
pressure on the Feed Handle when backing a tap
out of the work piece.
5. Stop/Reset Toggle Switch Position
(#4767) This setting stops the motor from either
forward or reverse rotation. Use this as the Stop
Switch while operating the drill press. Move the
Toggle Switch to reset position after a power
outage or after hitting the Red Emergency Stop
Button (#4819).
6. Stop The Red Emergency Stop Button stops
the machine and automatically disconnects
the machine from electrical power after a time
delay of about twenty seconds. Use this as
the Power Off switch at the end of the
work day.
NOTE: Avoid stalling the spindle and stopping
the motor under power. Turn Power off
immediately in a stalled motor condition. Clear
the jam mechanically. Repeated stalling abuse
is detectable and can lead to voiding
the warranty.

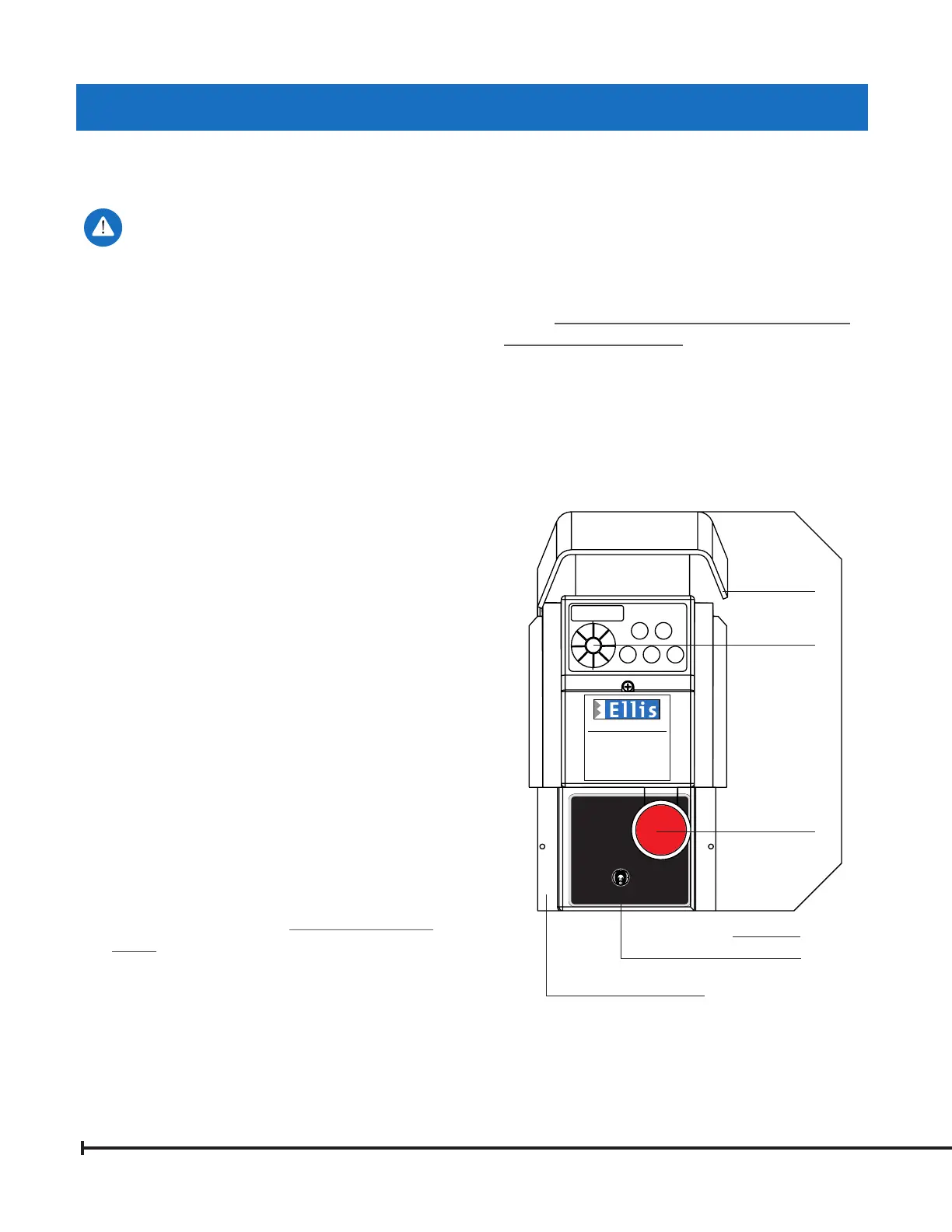

Variable Speed Control Box
EMERGENCY
STOP/OFF
STOP
RESET
REVERSE FORWARD
5061-2
Variable Speed
EMERGENCY STOP BUTTON
stops machine and turns
machine off with time delay.
- flip toggle to direction
of desired rotation.
- flip toggle to center to stop.
5062-1
4819
Red
Emergency
Stop Button
8154
Control
Bracket
4767 Toggle Switch
8151 Control Box Base
Speed
Dial
FWD–REV
