5
1.800.383.5547
Disconnect the power cord from the
wall outlet before any maintenance.

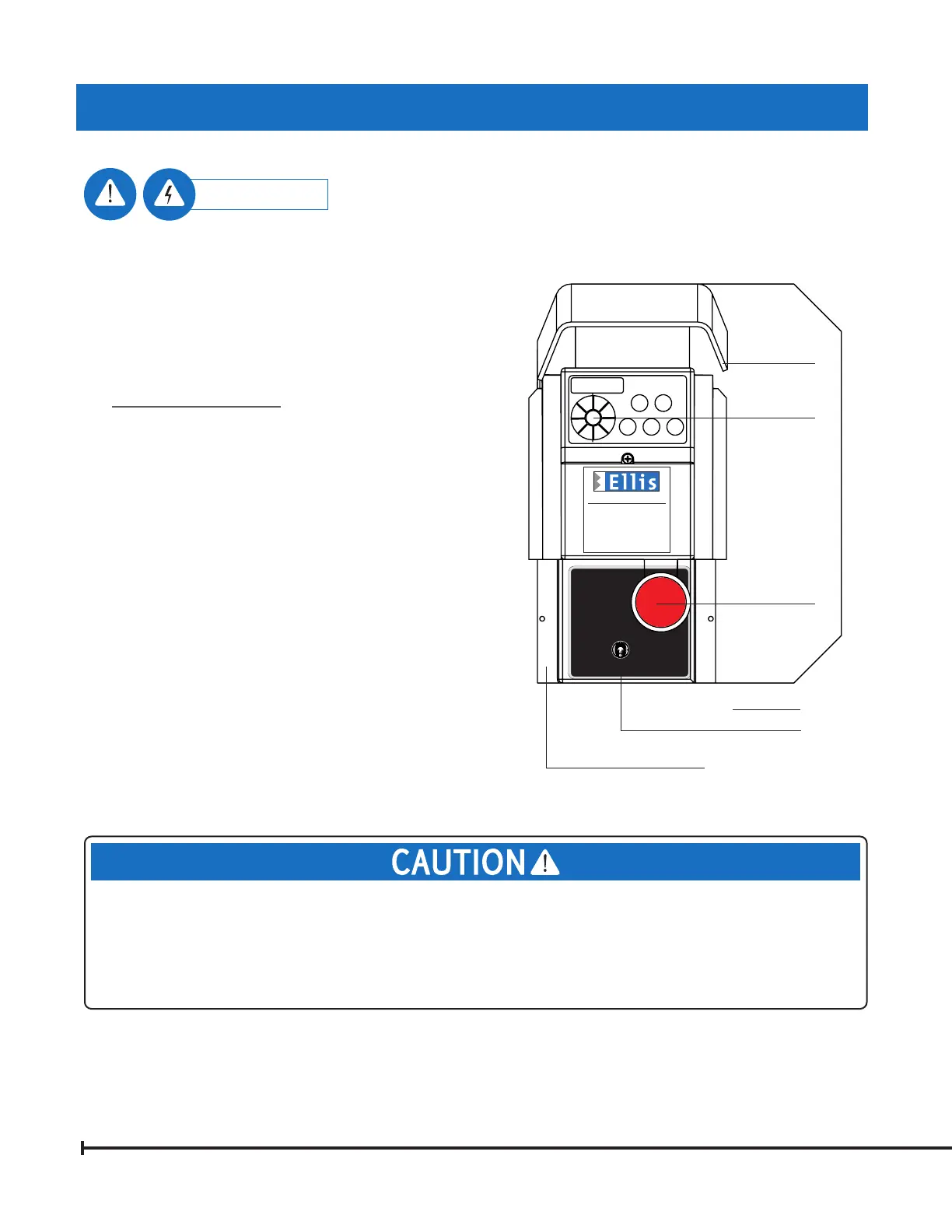

VARIABLE SPEED CONTROL BOX
1. Do not open the Variable Speed (VS) Control
Box. Tampering with the wiring or setting
will void the warranty. The circuit board is
not eld repairable. Do not touch or adjust
anything without calling Ellis Manufacturing Co.
for instructions. The circuits in the VS Control Box
are not isolated. Elements of the circuit board are
at 230 Volts. Direct contact with these circuits can
cause serious injury.
2. The control circuit is not fail-safe. A disconnect at
the wall outlet is the only way to reliably disable
the VS Control Box.
3. While power is ON or for some time after power-
OFF, do not touch the VS Control Box since the
VS Control box will be extremely hot. Doing so
can cause burns.
4. If you have problems with the Variable Speed
Control Box, contact the factory M–F,
7:30 am – 4:00 pm CST.
SAFETY
WARNING:
EMERGENCY
STOP/OFF
STOP
RESET
REVERSE FORWARD
5061-2
Variable Speed
EMERGENCY STOP BUTTON
stops machine and turns
machine off with time delay.
- flip toggle to direction
of desired rotation.
- flip toggle to center to stop.
5062-1
4819
Red
Emergency
Stop Button
8154
Control
Bracket
4767 Toggle Switch
8151 Control Box Base
Speed
Dial
Variable Speed Control Box
DO NOT WEAR:
JEWELRY, LOOSE CLOTHING, GLOVES
TIE BACK LONG HAIR WHEN OPERATING THIS EQUIPMENT
FWD–REV
