Elmo ST-1200 - 4. DRIVE BELT (Fig. 11)

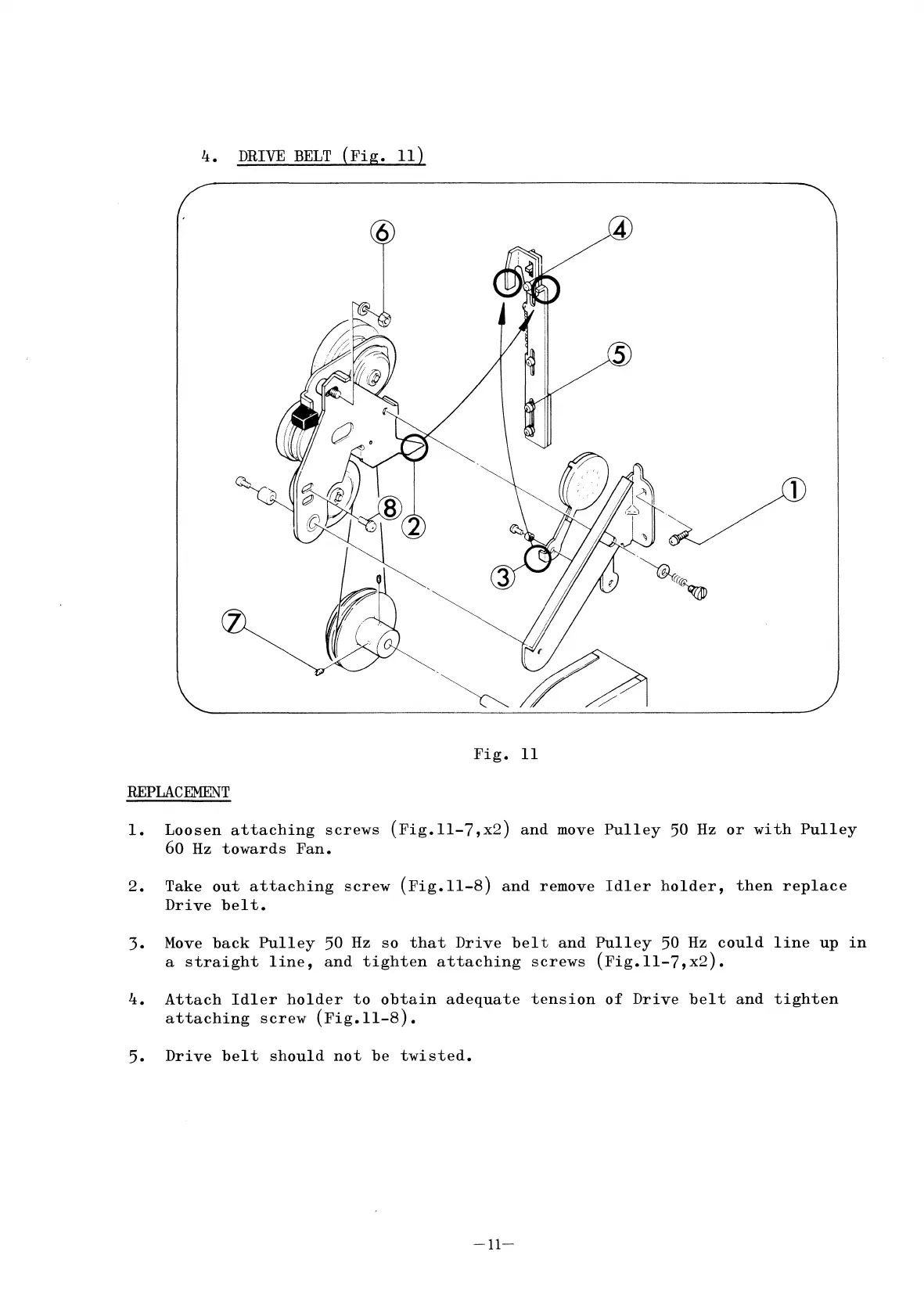

4. DRIVE BELT (Fig. 11)
4
1
Fig. 11
REPLACEMENT
1. Loosen attaching screws (Fig.11-7,x2) and move Pulley 50 Hz or with Pulley
60 Hz towards Fan.
2. Take out attaching screw (Fig.11-8) and remove Idler holder, then replace
Drive belt.
3. Move back Pulley 50 Hz so that Drive belt and Pulley 50 Hz could line up in
a straight line, and tighten attaching screws (Fig.11-7,x2).
4. Attach Idler holder to obtain adequate tension of Drive belt and tighten
attaching screw (Fig.11-8).
5. Drive belt should not be twisted.
-11-
