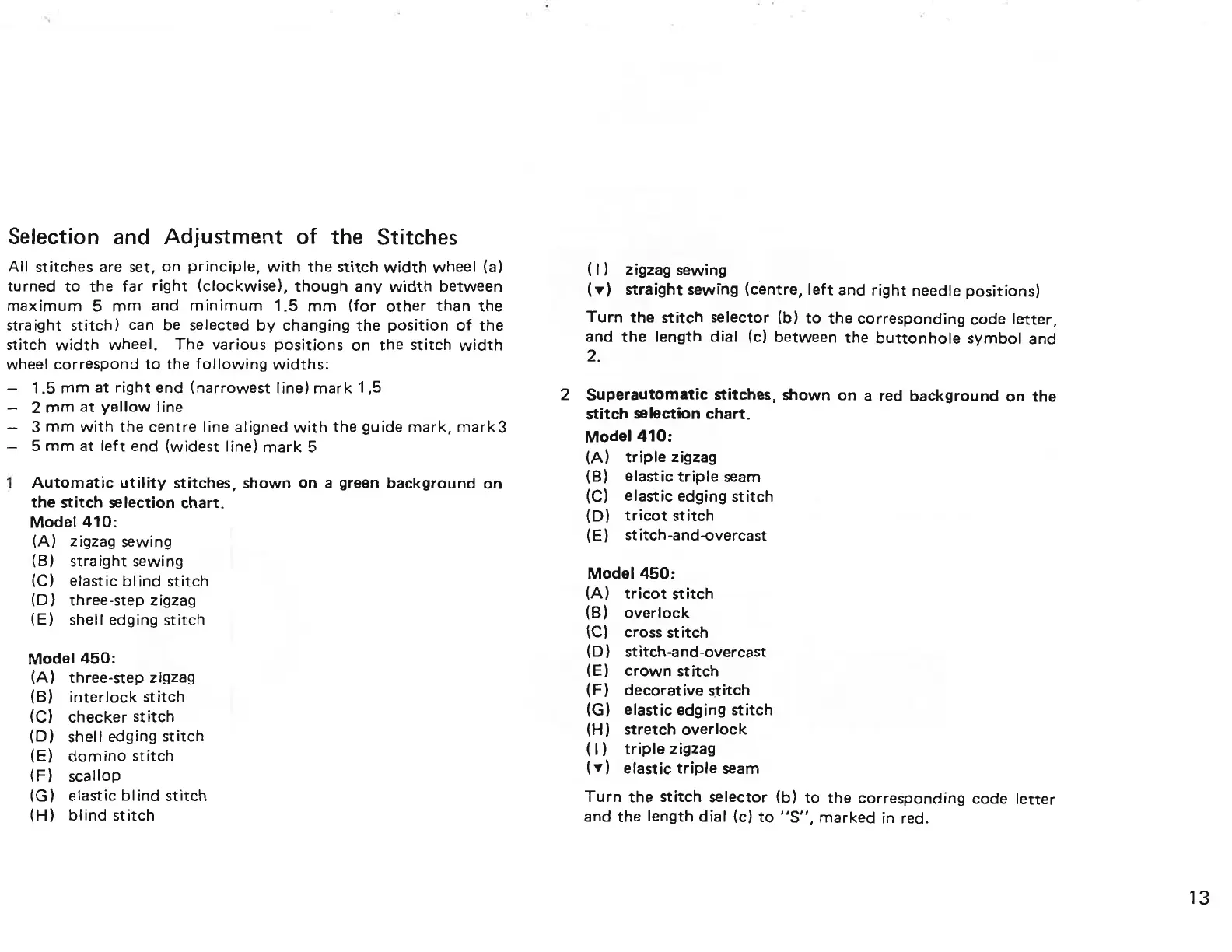

Selection and Adjustment of the Stitches
All stitches are set, on principle, with the stitch width wheel (a)
turned to the far right (clockwise), though any width between
maximum 5 mm and minimum 1.5 mm (for other than the
straight stitch) can be selected by changing the position of the
stitch width wheel. The various positions on the stitch width
wheel correspond to the following widths:
— 1.5 mm at right end (narrowest line) mark 1,5
— 2 mm at yellow line
— 3 mm with the centre line aligned with the guide mark, mark3
— 5 mm at left end (widest line) mark 5
1 Automatic utility stitches, shown on a green background on
the stitch selection chart.
Model 410:
(A) zigzag sewing
(B) straight sewing
(C) elastic blind stitch
(D) three—step zigzag
(E) shell edging stitch
Model 450:
(A) three—step zigzag
(B) interlock stitch
(C) lshecker stitch
(D) shell edging stitch
(E) domino stitch
(F) scallop
(G) elastic blind stitch
(H) Wind stitch
(l) zigzag sewing
(v) straight sewing (centre, left and right needle positions)
Turn the stitch selector (b) to the corresponding code letter,
and the length dial (c) between the buttonhole symbol and
2.
Superautomatic stitches, shown on a red background on the
stitch selection chart.
Model 410:
(A) triple zigzag
(B) elastic triple seam
(C) elastic edging stitch
(D) tricot stitch
(E) stitch—and-overcast
Model 450:
(A) tricot stitch
(B) overlock
(C) cross stitch
(D) st itch -a nd—overcast
(E) crown stitch
(F) decorative stitch
(G) elastic edging stitch
(H) stretch overlock
(I) triple zigzag
(V) elastic triple seam
Turn the stitch selector (b) to the corresponding code letter
and the length dial (c) to marked in red.
13
