Access the Measurement Summary
The Measurement Summary summarizes all your measurement readings. The most
important p arameters you will need to focus o n in t his w indow are Phase Order
(for 3 phase systems) & DSP Synchronization:
Phase Order: Confirms the order of the voltage phases starts from V
1
& are
moving in a cl ockwise direction. I f t he P hase O rder is incorrect ( not 123)
recheck your Voltage Connections & that they are connected in the correct
order.
DSP Synchronization: Confirms t hat th e uni t is s ynchronized w ith th e
signals of the device. If this is ON it means that the device is reading all the
signals in a synchronized manner, & if it is OFF it means that the device is
not reading the signals. In this instance recheck all your Connections.
See PQ M onitoring for all t he d efinitions & s ubsequent p arameter
calculations that appear on this window.

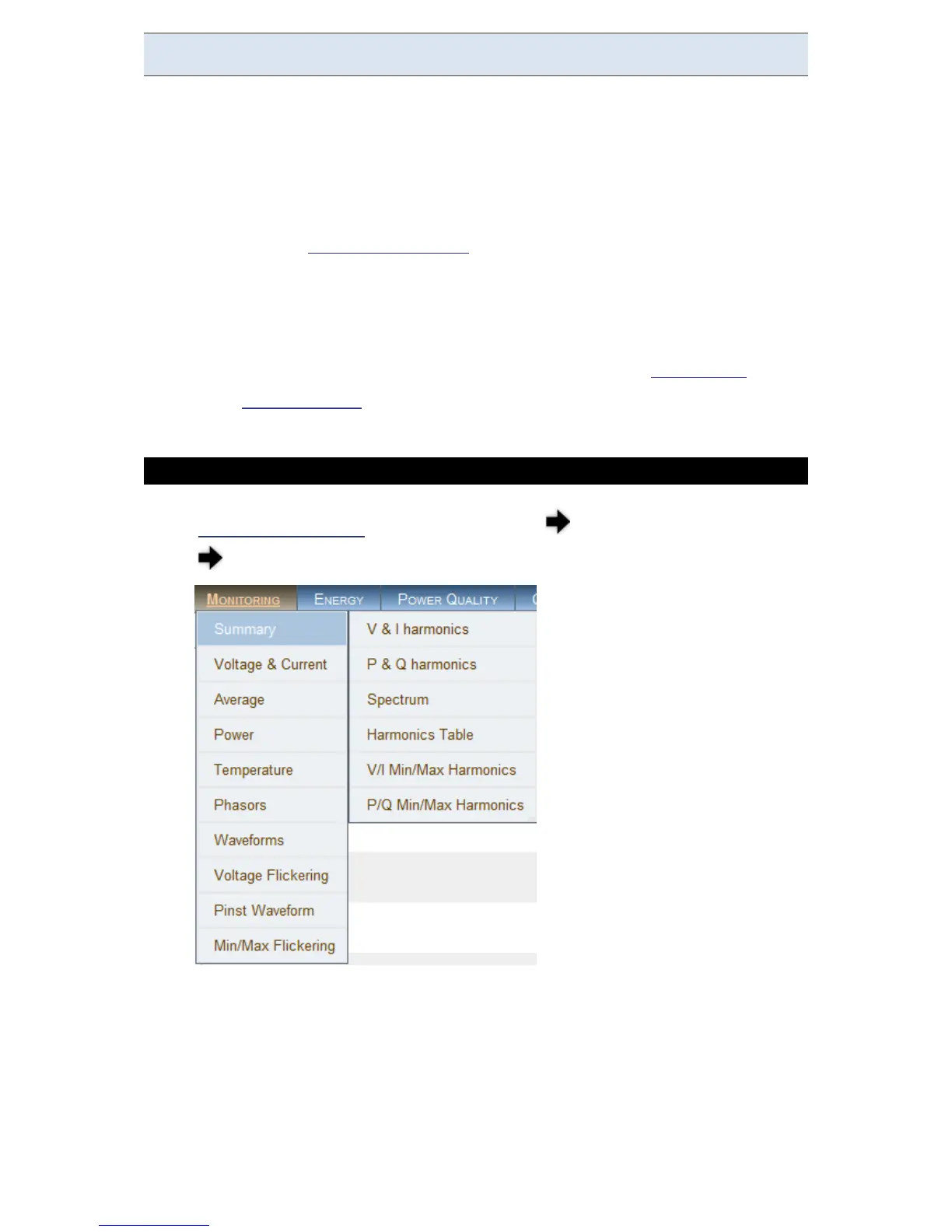

ACCESS THE SUMMARY WINDOW
Access your G4K Unit via the Web Interface Open Monitoring
Summary:
