Elstat ems55advanced User Manual

alignment dimensions notes
Z gap
0mm (0in) to 5mm (0.2in)
+/- 2mm (0.07in)

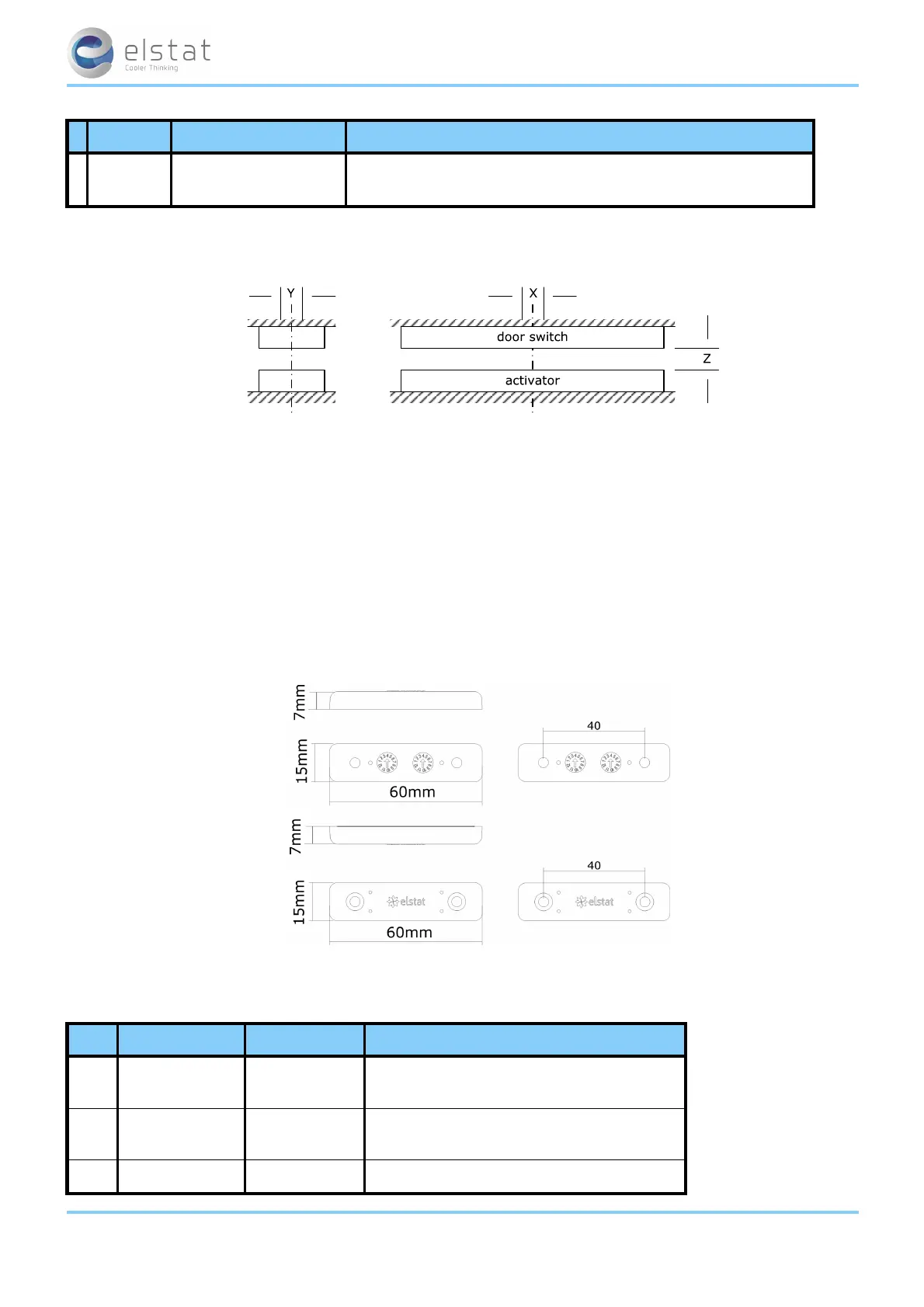

The diagram shows the horizontal, vertical, and gap alignment between the door switch and the activator for open and closed
doors.
4.2 how to mount the enhanced door switch
Door switches are usually mounted with the door switch on the cooler and the activator on the door. Door switches and activ-
ators must be fixed using counter sunk screws or bolts with the following characteristics:
l Head: countersunk head maximum diameter 6.0mm (0.236in) and minimum diameter 5.0mm(0.196 in).
l Thread: maximum diameter 3.0mm (0.118in).
The screws must be tightened to a maximum torque of 0.5Nm (0.37lb
f
ft).
Caution:
Door switch kits supplied by elstat must not be installed using rivets. Using rivets invalidates the warranty.
The alignment of the door switch and activator is critical for the correct operation of the door switch. The table below details
the alignment tolerances.
alignment dimensions notes
X horizontal
0mm (0in)
+/- 20mm (0.7in)
measured when the door is closed and the gap
(z-dimension) is correct.
Y vertical
0mm (0in)
+/- 10mm (0.4in)
measured when the door is closed and the gap
(z-dimension) is correct.
Z gap
0mm (0in) to
ems55advanced and ems55Radvanced / General Use
17 of 84
