Elstat ems55advanced - technical data and product approvals; dimensional drawings and relay data; temperature sensor input ranges; environmental ratings and approvals

11 technical data ems55advanced
Technical data for the ems55advanced and ems55Radvanced.

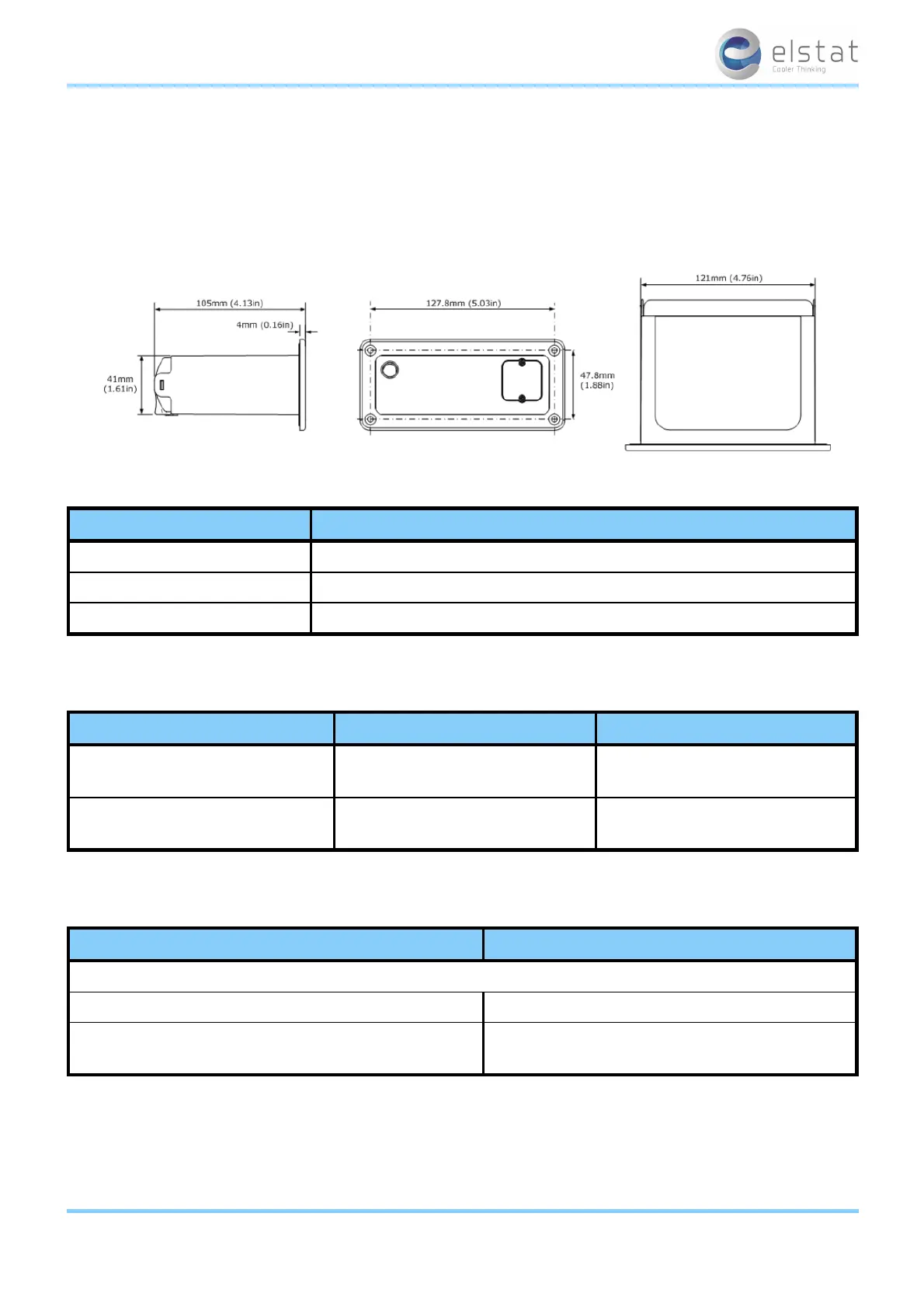

Dimensional drawings:
Controller relays:
relay IEC 60730 rating @ 100-120VAC and 220-240VAC 50/60Hz
compressor 10 (10) A, p.f. 0.6
light 4 (4) A, p.f. 0.6
evaporator fan 4 (4) A, p.f. 0.6
Temperature sensors:
sensor input range (
o
C) input range (
o
F)
appliance sensor
-10
o
C to 23.3
o
C
+/- 0.5
o
C
14
o
F to 74
o
F
+/- 1
o
C
condenser sensor
-10
o
C to 23.3
o
C
+/- 5
o
C
122
o
F to 257
o
F
+/- 10
o
F
Environmental ratings:
characteristic value
IP (Ingress Protection):
l controller
IPX5
maximum ambient
temperature
55
o
C (131
o
F)
ems55advanced and ems55Radvanced / General Use
