The control display module is available with either an integrated or a remote motion sensor. Both CDM
variants are made from food grade plastics and are safe for internal installation.

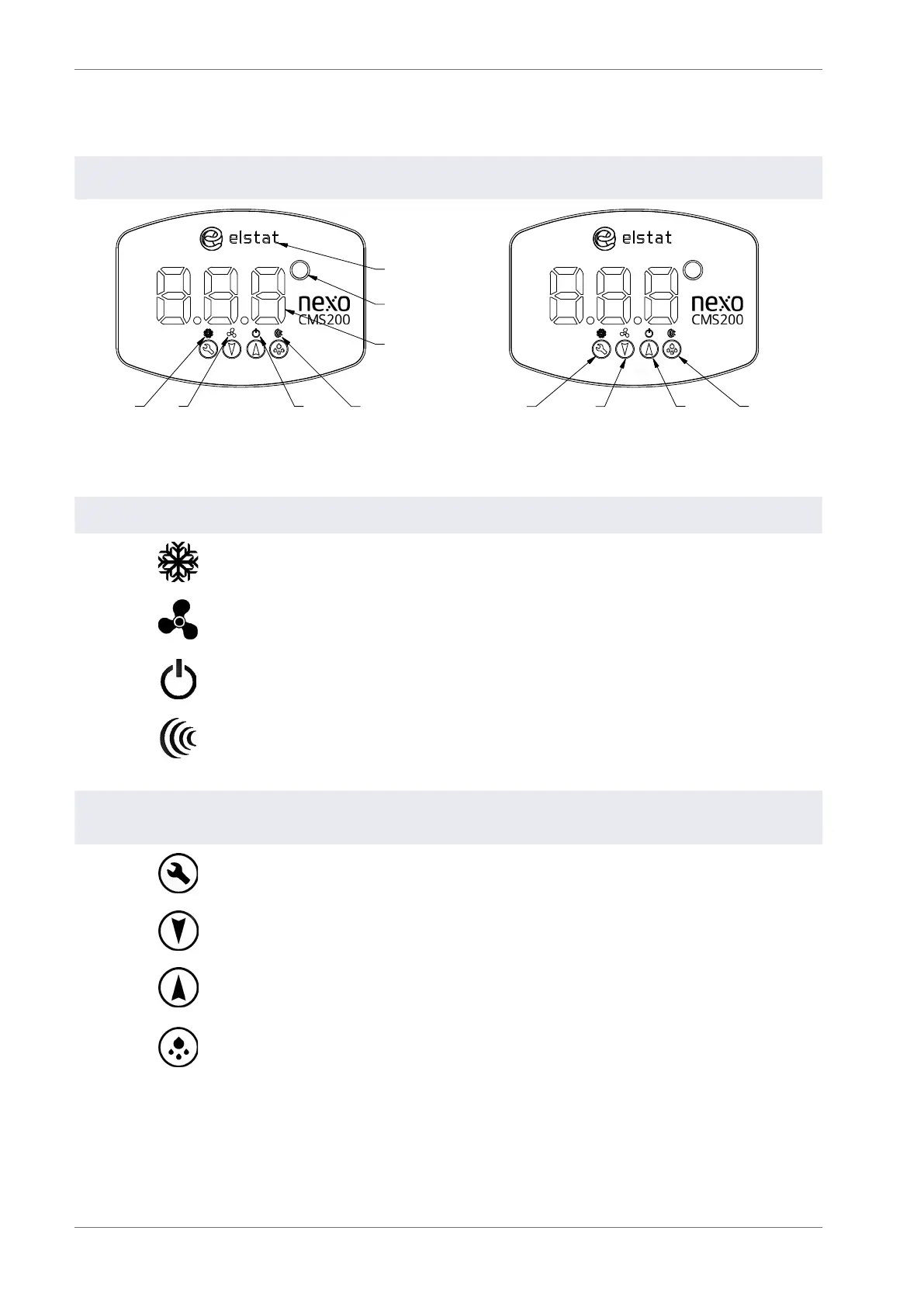

Controller with integrated motion detection
(IMD)
Controller with remote motion detection
(RMD)
1
9
11
10
2
3 4
5
6
7
8
This variant should always be installed where the
sensor can ‘see’ activity. It is recommended that the
CDM is installed externally on the cooler.
This variant of the CDM can be installed internally
on the cooler but the remote motion sensor must
be installed where it can ‘see’ activity.
Item LED Indicator Function
1
Compressor On when the compressor is running.
2
Evaporator fan On when evaporator fan is running.
3
Saving
temperature
disable
On if the saving mode temperature is disabled.
The controller maintains the Ready mode temperature at all times.
4
Motion On when motion is detected.
Item
Push
Button
Name Function
5
Set Accept/forward - selects menu options and parameters.
6
Down
Scrolls down menus. Decreases parameter values. Cancels the rSF,
d0 and Ht alarms.
7
Up Scrolls up menus. Increases parameter values.
8
Defrost
Return/backward - De-selects menu options and parameters.
Activates a manual defrost (only applicable if controller is set to
timed defrost and temp is below termination temp).
9 Logo Elstat logo
10 LED Display 3-digit 7-segment LED display
11 Sensor Motion sensor
