Elstat Nexo CMS200 User Manual

CMS200 Product Manual, Issue 6
www.nexo.com Page 7

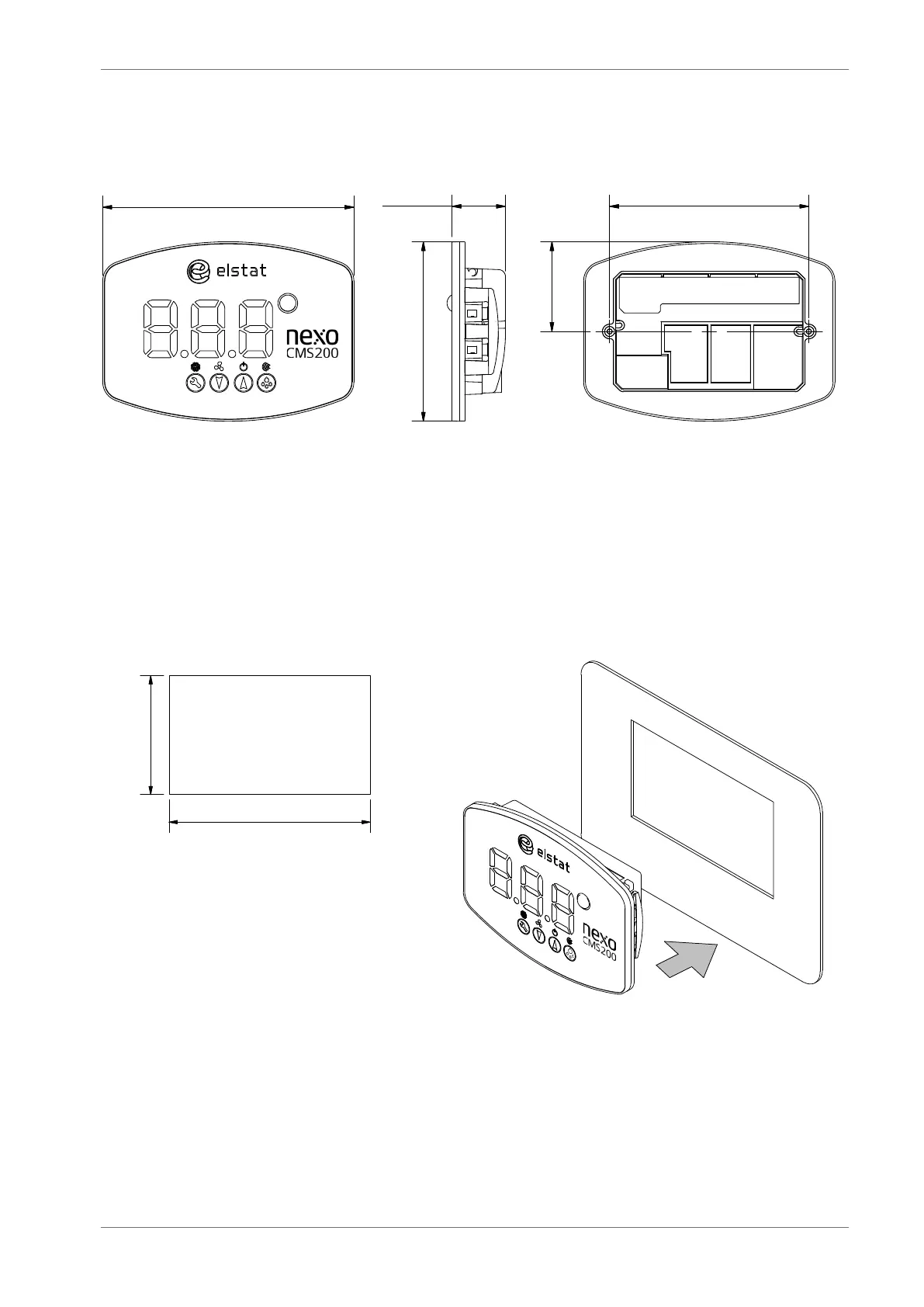

1.1.1 CDM Overall dimensions
The overall dimensions of the CDM are shown in the following diagram:
140 mm
30 mm
1
0
0
m
m
111 mm
5
0
m
m
1.1.2 CDM Mounting
The control display module is designed for panel mounting and is secured using the tted clips.
The aperture dimensions are as shown.
To mount the control display module simply
push in the unit into the aperture till it clicks into
place.
Check that the control display module is held rmly in position.
7
2
m
m
122 mm
7
2
m
m
122 mm
