Elstat Nexo CMS200 User Manual

CMS200 Product Manual, Issue 6
www.nexo.com Page 9

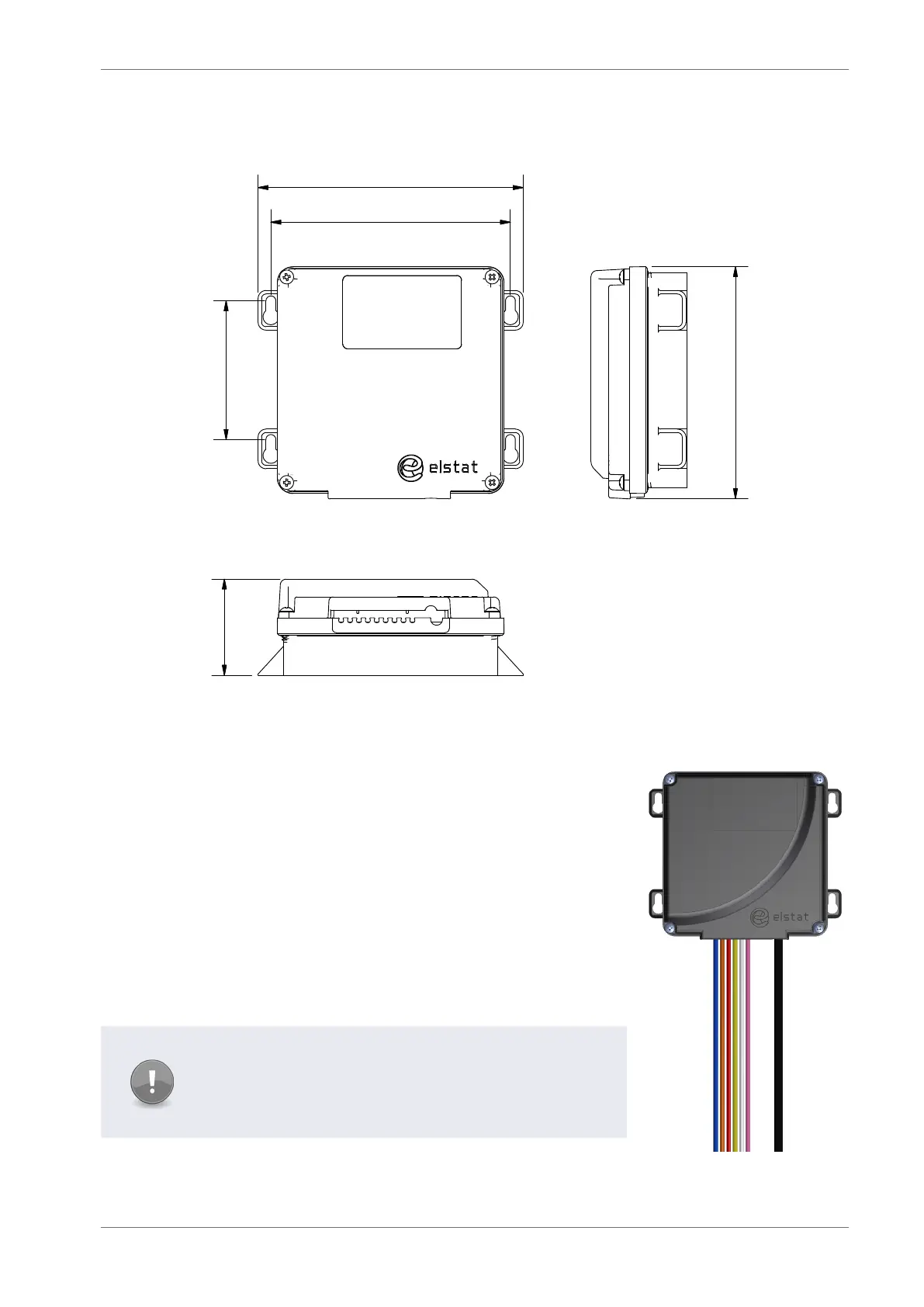

1.2.1 PSM Overall dimensions
The overall dimensions of the PSM are shown in the following diagram:
134 mm
121 mm
6
2
m
m
1
1
7
m
m
4
6
m
m
1.2.2 PSM Mounting
The power supply module is tted with the following cables:
` High voltage cable terminated with 6-way connector for connecting
to the compressor, lights, evaporator fan, and defrost heaters or
valves.
` Interface cable that connects to the control display module.
The power supply module must be mounted vertically with the cables
exiting vertically downwards.
The power supply module has an (Ingress Protection) IP rating of IPX5,
which means the power supply module is protected against water jets.
Note
The power supply module must be located in a non-
refrigerated area of the cooler and it must not be placed
in the hot exhaust ow of the condenser.
