EM TEST Compact NX5
Operating Manual V 1.06 56 / 143
4.3.6.6.

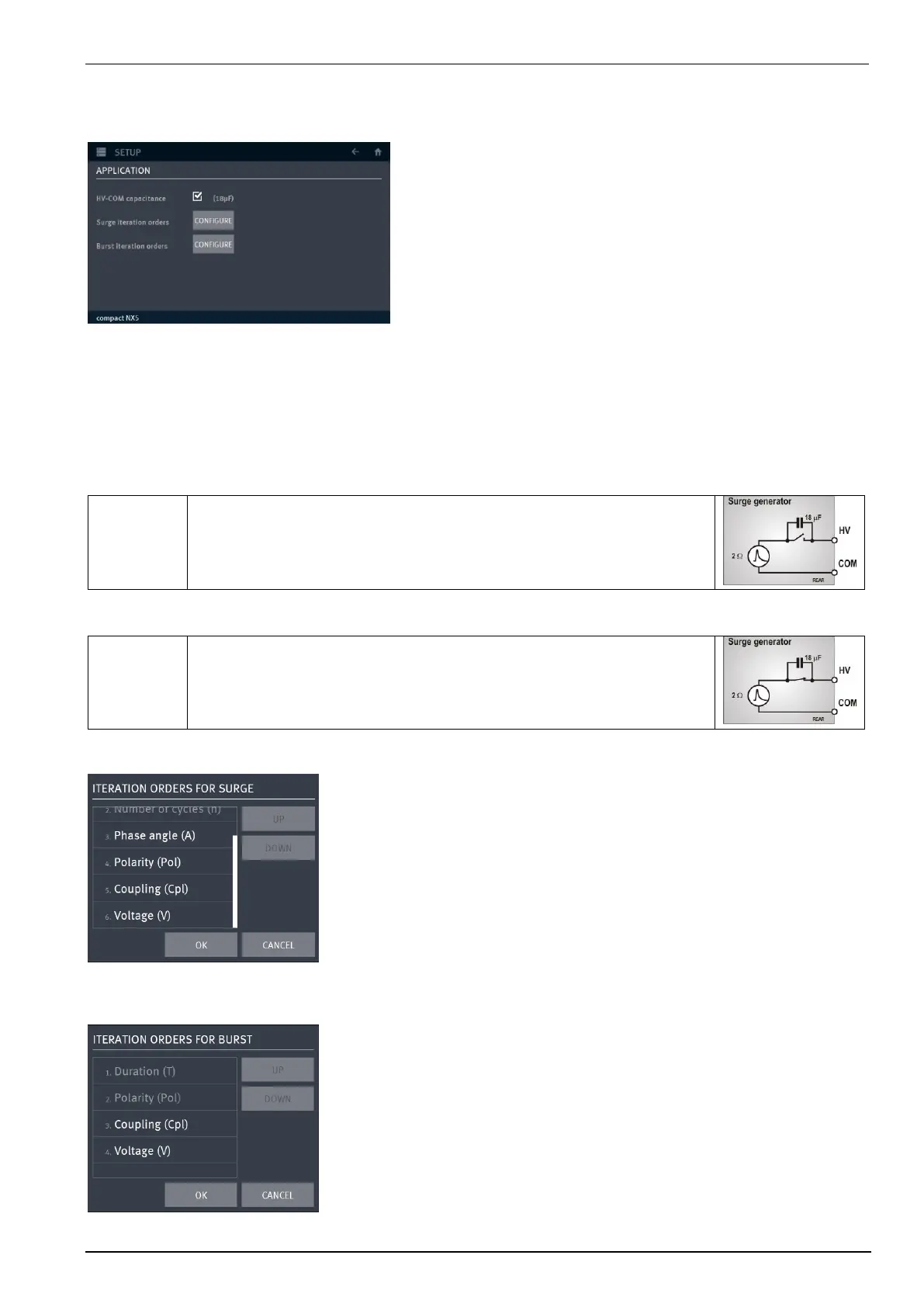

Setup / General /Application
HV – COM capacitance: HV – COM output at rear side
Direct or coupled with 18 µF
Surge Iteration orders: Definition of parameter iteration
Burst Iteration orders: Definition of parameter orders
Advanced decimal: Number of digits for transformer factors
HV – COM capacitance: HV – COM output at rear side
Default setting is “Enable”. When using an EM Test coupling device, the capacitor is automatically disabled.
The recognized connected EM TEST 3-phase CDN has already a built in 18 µF capacitor.
Enable: - Generator impedance 2 Ω + 18 µF coupling
Application:
- External CDN without 18 µF capacitors
- Other application where 18 µF is required (pulsed H- field, surge
verification at this output)
Disable: - Generator impedance is 2 Ω
Application:
- External CDN with built in 18 µF capacitors
- Verification of the HV-COM output
Surge Iteration orders:
Parameter Iteration orders for surge test
Default: Phase Angle, Polarity, Coupling, Voltage
1. Select any parameter for change
2. Change order with UP / DOWN
3. Press OK or Cancel
Note: The parameter “Repetition time” and “Number of cycles (n pulses)”
are fix parameters for the surge test and can’t be iterated.
Burst Iteration orders:
Parameter Iteration orders for burst test
Default: Coupling, Voltage
1. Select any parameter for change
2. Change order with UP / DOWN
3. Press OK or Cancel
Note: The parameter “Duration” and “Polarity” are fix parameters for the
burst test and can’t be iterated.
