Installation
Page 31
negative signals should be connected together
transmit signals should be connected to receive signals and vice
versa.
Please refer to your equipment manual for more information.
Both NMEA 0183 ports support multiplexing, which means that any data
received on port 1 will be automatically output on port 2, and vice versa.
This can be useful when connecting to a chartplotter that only has a single
NMEA 0183 port, so a sensor can be connected to port 2 on the transceiver,
where the received sensor data will combine with AIS data and get output on
port 1.

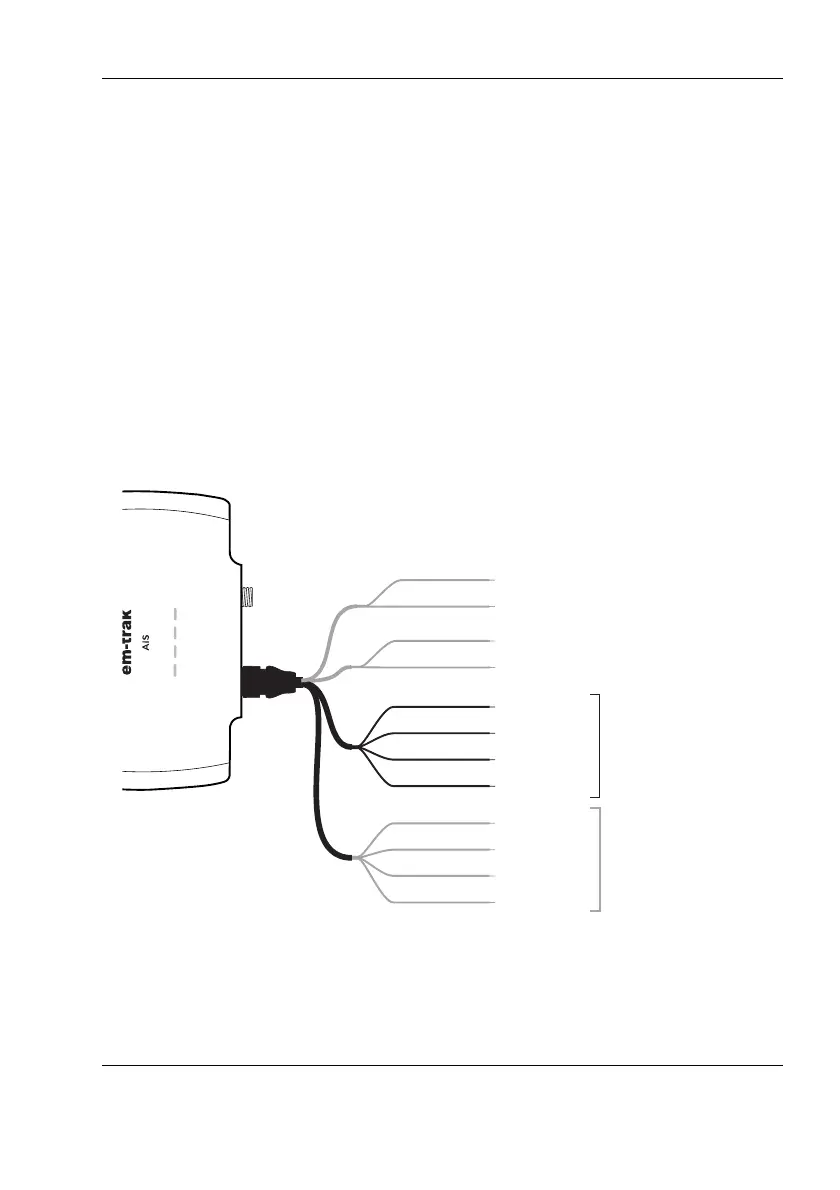

Figure 16 Connecting to your chartplotter
Transmit +
Transmit –
Power in +
Power in –
Switch connection
Switch connection
Receive +
Receive –
Brown
Blue
Light green
Orange
Red
Black
White
Green
Purple
Pink
Grey
Yellow
Transmit +
Transmit –
Receive +
Receive –
NMEA 0183
Port 1
38,400baud
(chart plotter)
NMEA 0183
Port 2
4,800baud
(other NMEA0183 device)
