Chapter 3 33

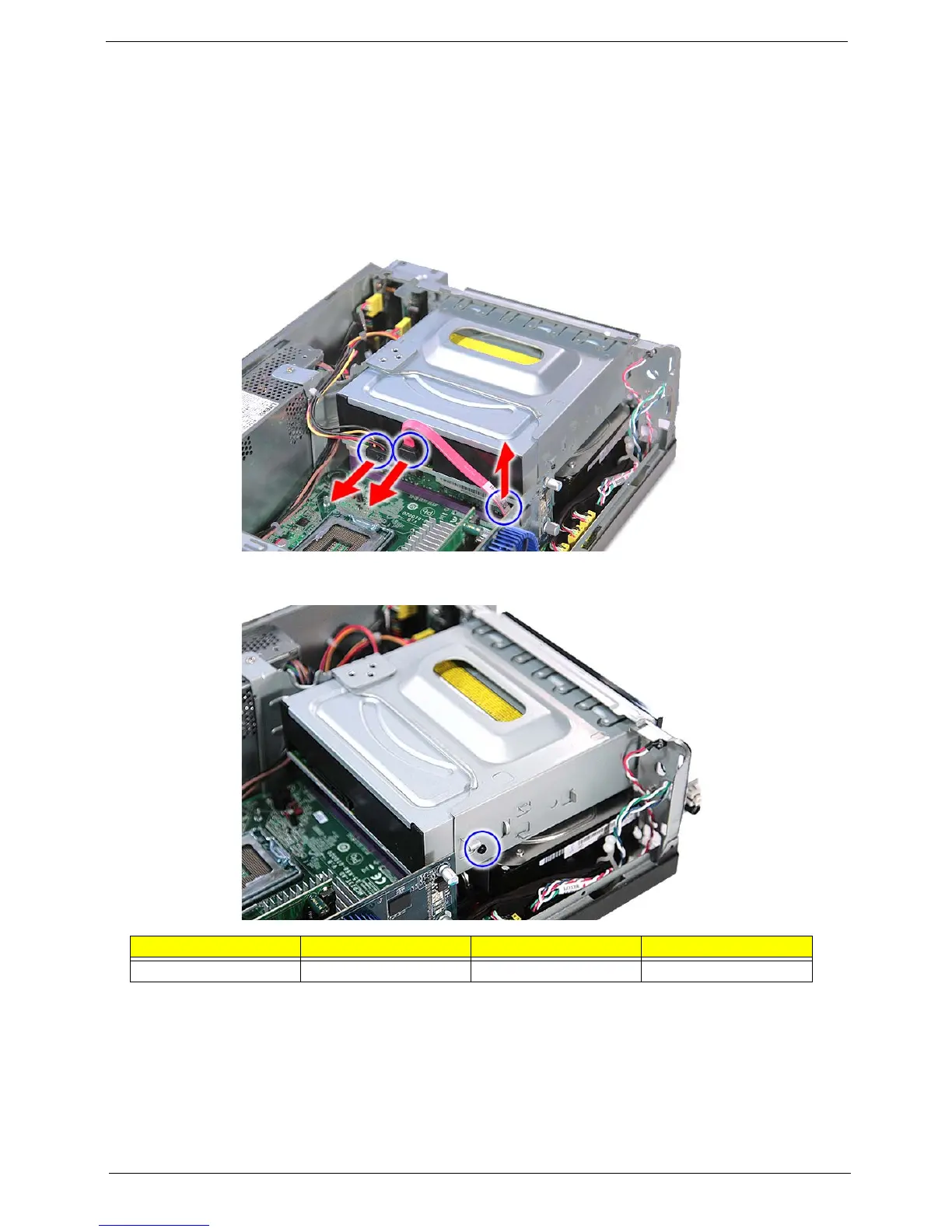

Removing the Optical Drive
1. See “Removing the Side Panel” on page 27.
2. See “Removing the Front Bezel” on page 28.
3. See “Removing the Heat Sink Fan Assembly” on page 29.
4. See “Removing the Processor” on page 31.
5. Disconnect the data and power cables from the rear of the optical drive and the mainboard.
6. Remove the screw (B) from the optical drive.
Screw (Quantity) Color Torque Part No.
M3xL5 (1) Black 5.5 to 6.5 kgf-cm 86.1A324.5R0
To Next Page
