Chapter 3 47
Removing the Power Switch and LED Cable Assembly
1. See “Removing the Side Panel” on page 27.
2. See “Removing the Front Bezel” on page 28.
3. See “Removing the Heat Sink Fan Assembly” on page 29.
4. See “Removing the Processor” on page 31.
5. See “Removing the Optical Drive” on page 33.
6. See “Removing the Hard Disk Drive” on page 35.
7. See “Removing the Memory Modules” on page 40.
8. See “Removing the Front I/O and Card Reader Boards” on page 41.
9. See “Removing the TV Tuner Card” on page 41.
10. See “Removing the Front I/O and Card Reader Boards” on page 41.
11. See “Removing the Mainboard” on page 45.

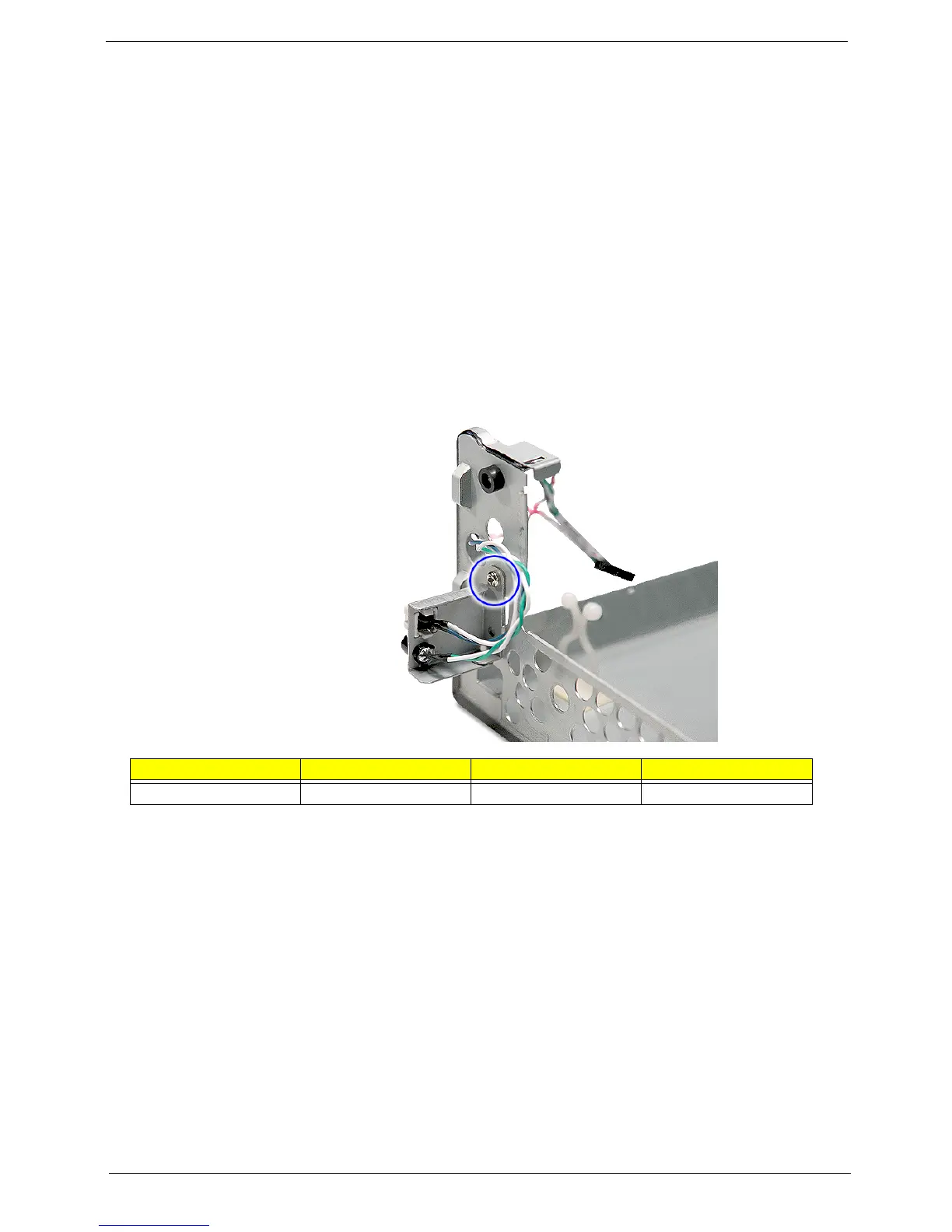

12. Remove the screw (C) that secures the LED bracket to the chassis.
Screw (Quantity) Color Torque Part No.
#6-32 L6 BZN (1) Silver 5.7 to 6.3 kgf-cm 86.00J44.C60
To Next Page
