48 Chapter 3

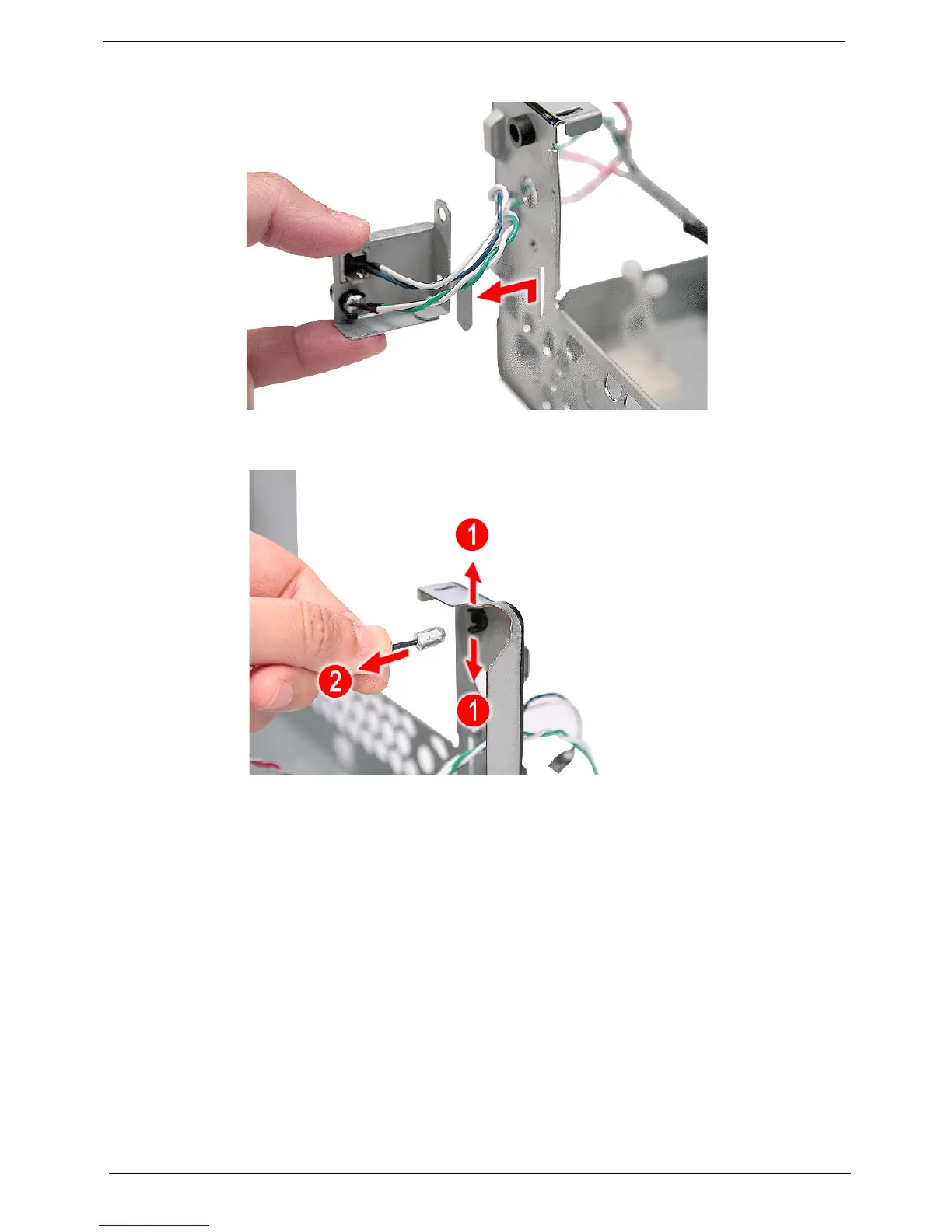

13. Pull the LED bracket up and lift up from the chassis.
14. Release the two locking tabs (1) and gently pull the HDD LED cable out (2).
