Chapter 3 45
Removing the Mainboard
1. See “Removing the Side Panel” on page 27.
2. See “Removing the Front Bezel” on page 28.
3. See “Removing the Heat Sink Fan Assembly” on page 29.
4. See “Removing the Processor” on page 31.
5. See “Removing the Optical Drive” on page 33.
6. See “Removing the Hard Disk Drive” on page 35.
7. See “Removing the Memory Modules” on page 40.
8. See “Removing the Front I/O and Card Reader Boards” on page 41.
9. See “Removing the TV Tuner Card” on page 41.
10. See “Removing the Front I/O and Card Reader Boards” on page 41.

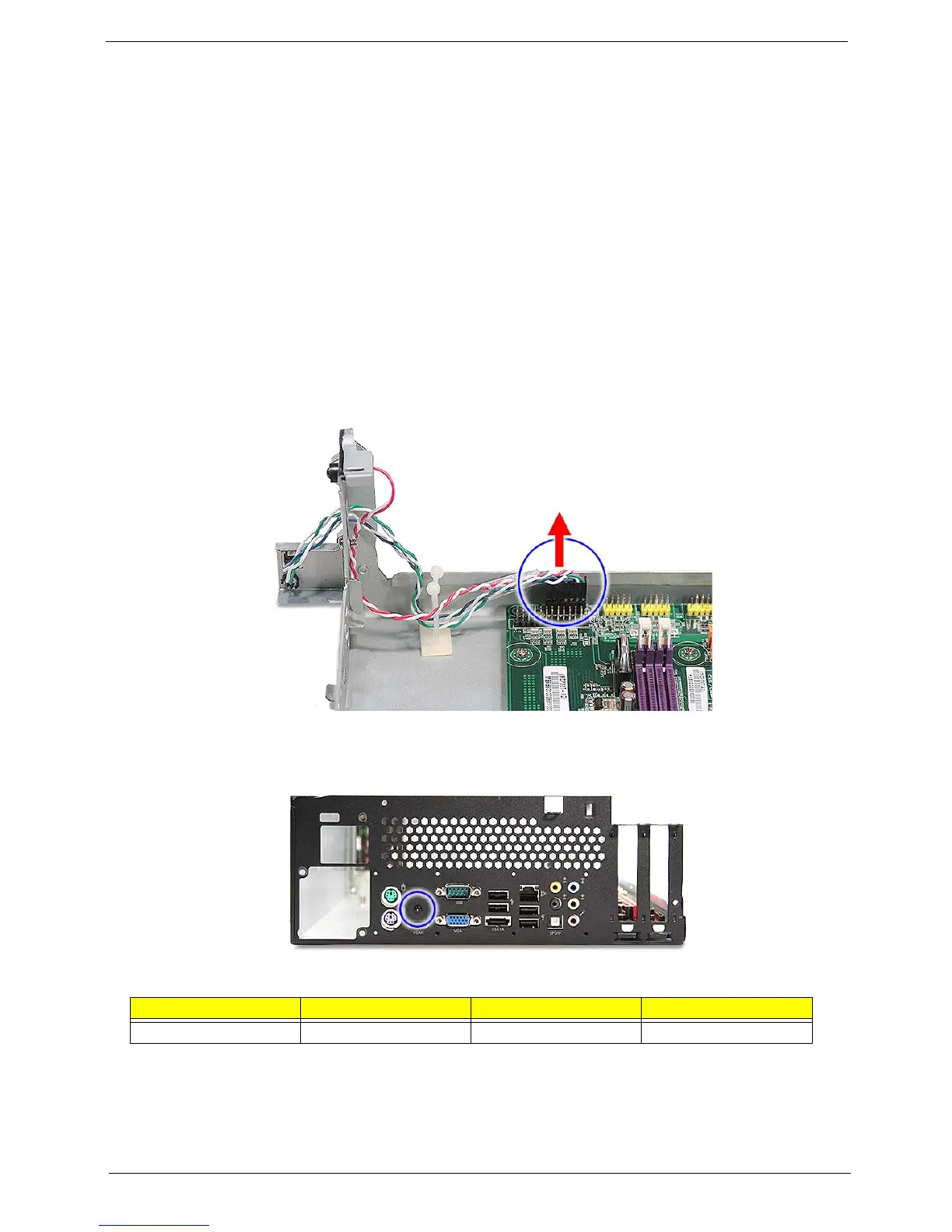

11. Disconnect the LED cable from the mainboard.
12. Remove the screw (B) on the rear panel.
Screw (Quantity) Color Torque Part No.
M3xL5 (1) Black 5.5 to 6.5 kgf-cm 86.1A324.5R0
To Next Page
