Removing the Front I/O and Card Reader Boards
1. See “Removing the Side Panel” on page 27.
2. See “Removing the Front Bezel” on page 28.
3. See “Removing the Heat Sink Fan Assembly” on page 29.
4. See “Removing the Processor” on page 31.
5. See “Removing the Optical Drive” on page 33.
6. See “Removing the Hard Disk Drive” on page 35.
7. See “Removing the Memory Modules” on page 40.

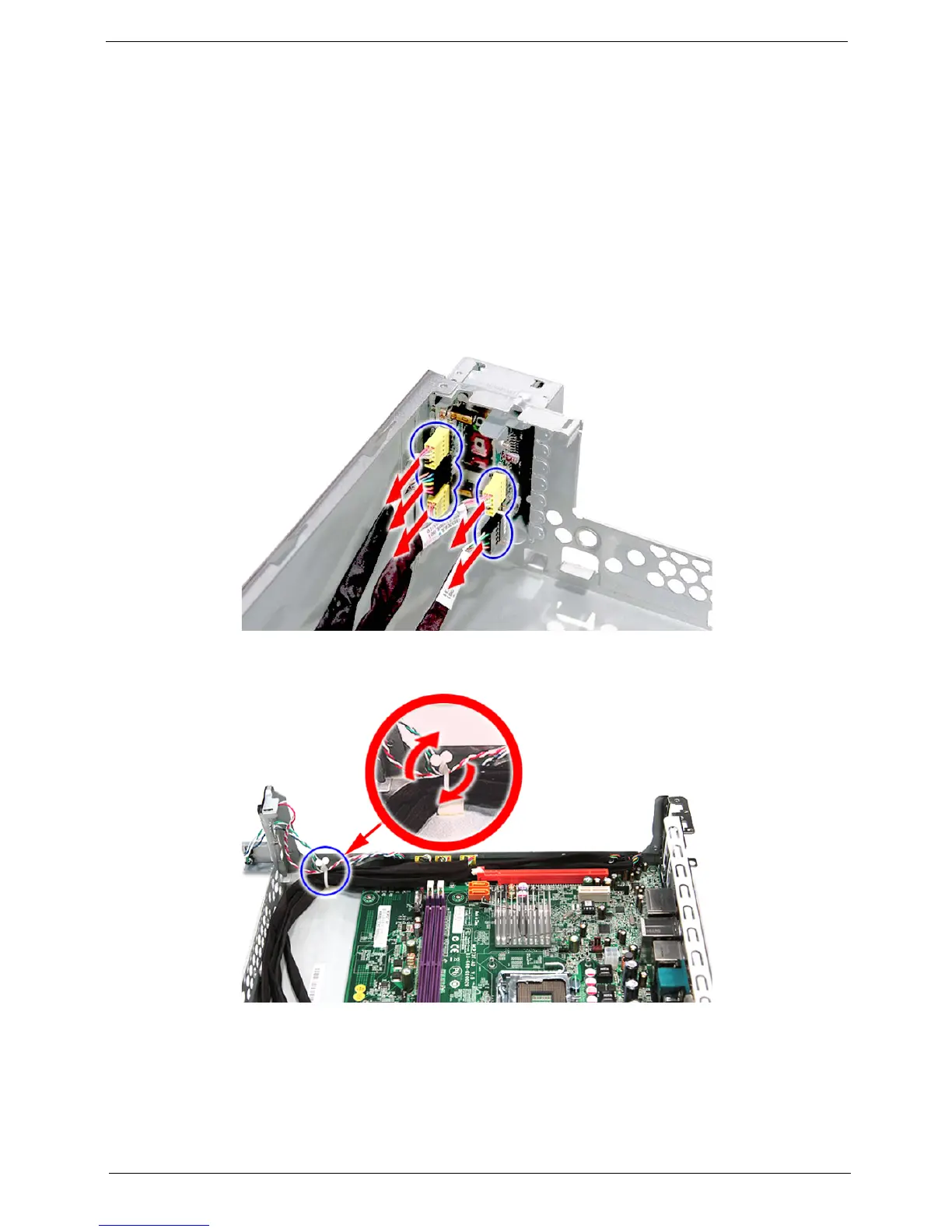

8. Disconnect one end of the USB, 1394, and audio cables from the I/O and card reader boards.
9. Open the cable retention clip.
