Buzz ESC

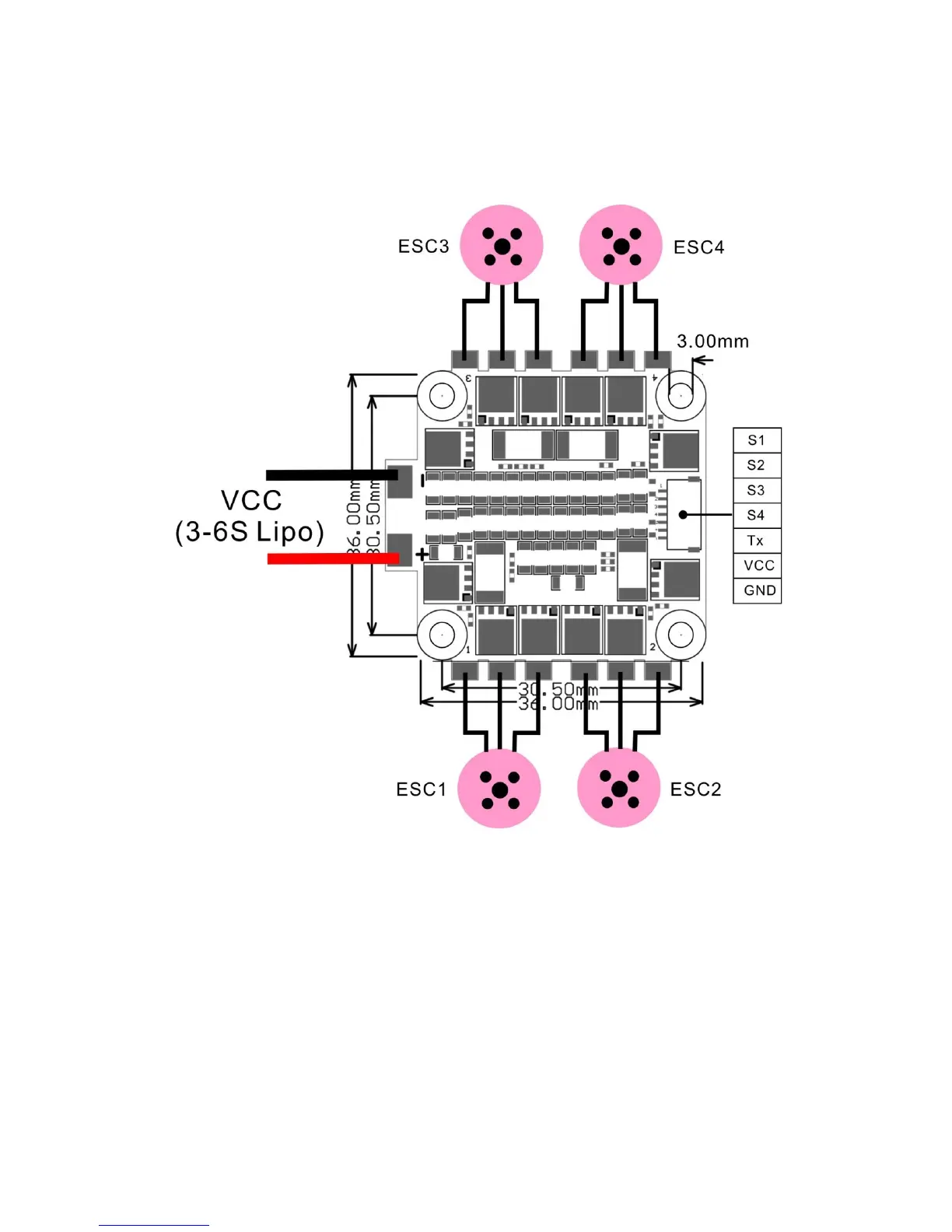

ESC Schematic and pinout Diagram.
The Buzz is using 4-in-one 45A 32-bit ESC. Buzz supports 3-6S Lipo.
Recommended 1300-1800 mAh 4S.
Signal Wires: S1-S4 is the signal input of ESC1-ESC4. Tx is ESC telemetry output
connected to UART 3 RX on the Buzz Flight Controller.
