4.9 SP8: CAN
There is one CAN interface on the board. It is connected to FLEXCAN2 and CANFD of the i.MX
RT1062 (these two peripherals share the same pins vis pin multiplexing - only one can be active at the
same time). The interface has on-board ESD protection via U9. See picture below for locating relevant
components.

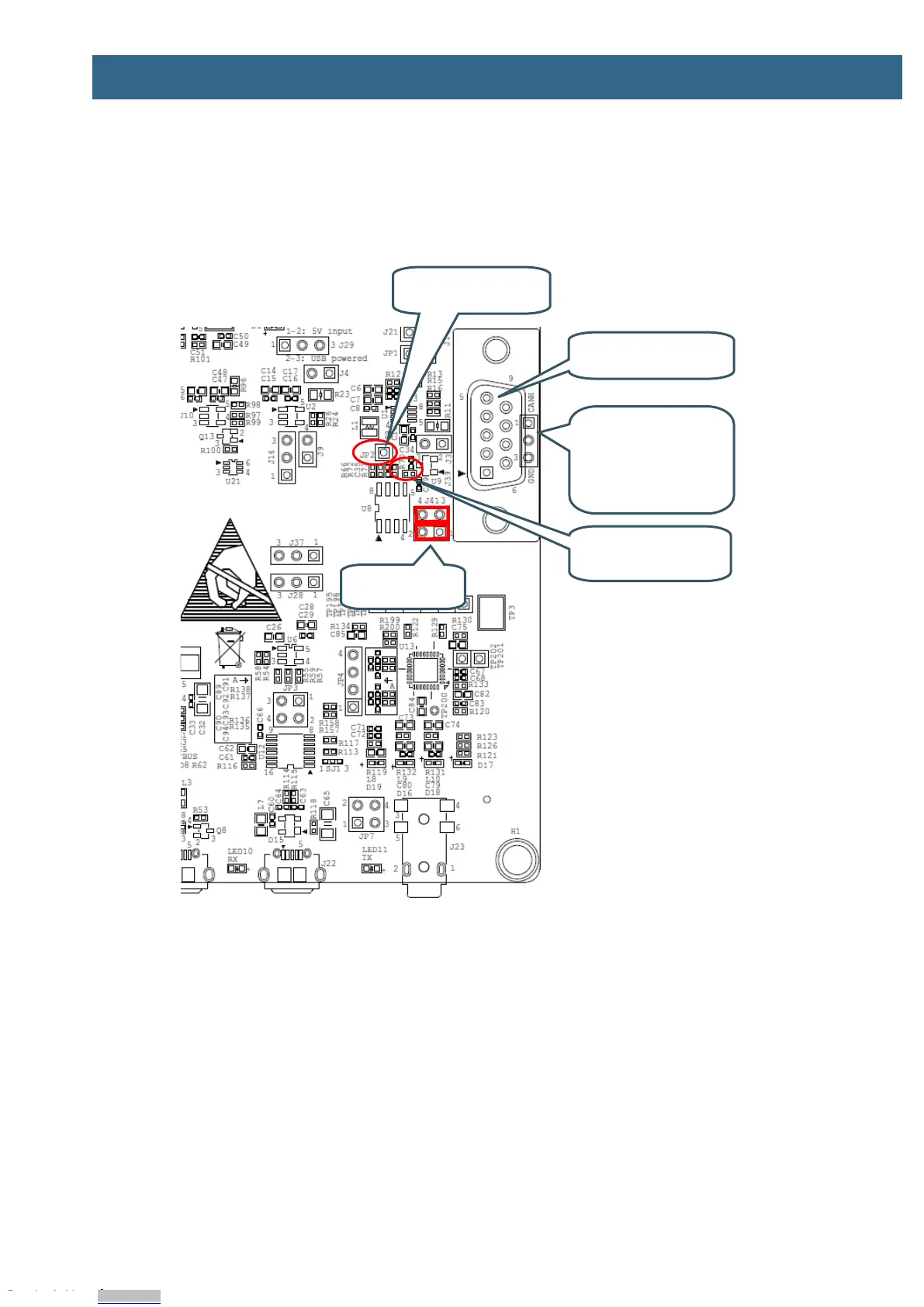

Figure 21 – CAN Interface
CAN part of Connector
J14
From top to bottom:
CANH
CANL
GND
Termination Resistors
R71
R70
CAN standby ctrl
JP2
Isolation jumpers
J4
DSUB9M CAN Connector
J39
