Embla Sandman - Headbox; Connectors; Figure 1. the SD32+ System

SD32+ System Introduction
DC Expansion Box

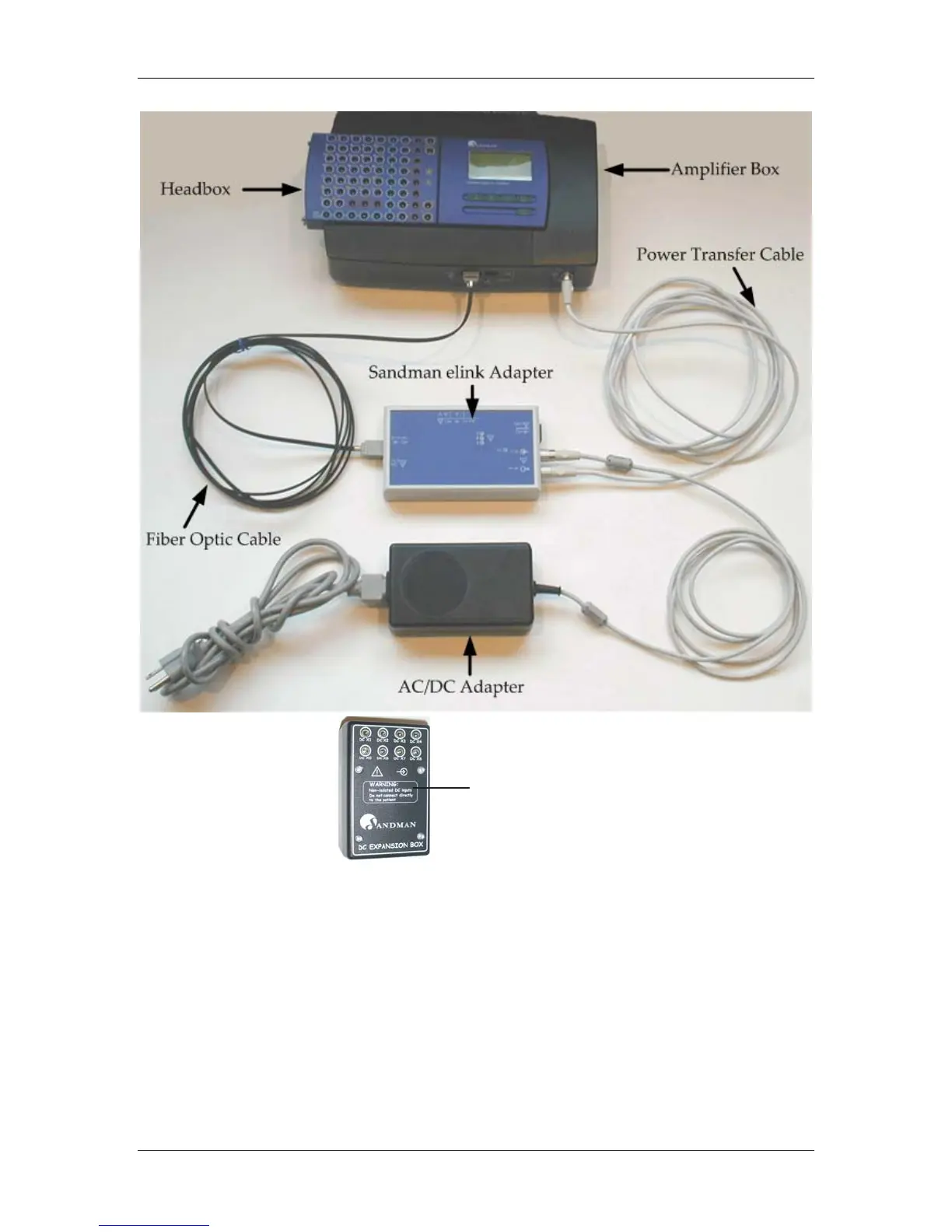

Figure 1. the SD32+ system
3.2. headbox
Patient electrodes and sensors plug into the SD32+ amplifier headbox. There are 68 input sockets
that accept 1.5-mm electrode safety plugs including 32 AC monopolar input sockets, 8 pairs of
AC bipolar input sockets, 3 neutral input sockets, 13 isolated ground input sockets, 2 temperature
input sockets, and 2 calibration signal output sockets.
connectors
The Headbox has two different ports that can be used to interface with the SD32+ amplifier.
