SD32+ System Introduction
3.3. amplifier
The SD32+ amplifier has two sockets, five ports, a graphic LCD display, and five menu control
buttons as illustrated in Figure 6. SD32+ amplifier’s external connections (front) and Figure 7. SD32+
amplifier’s external connections (back).

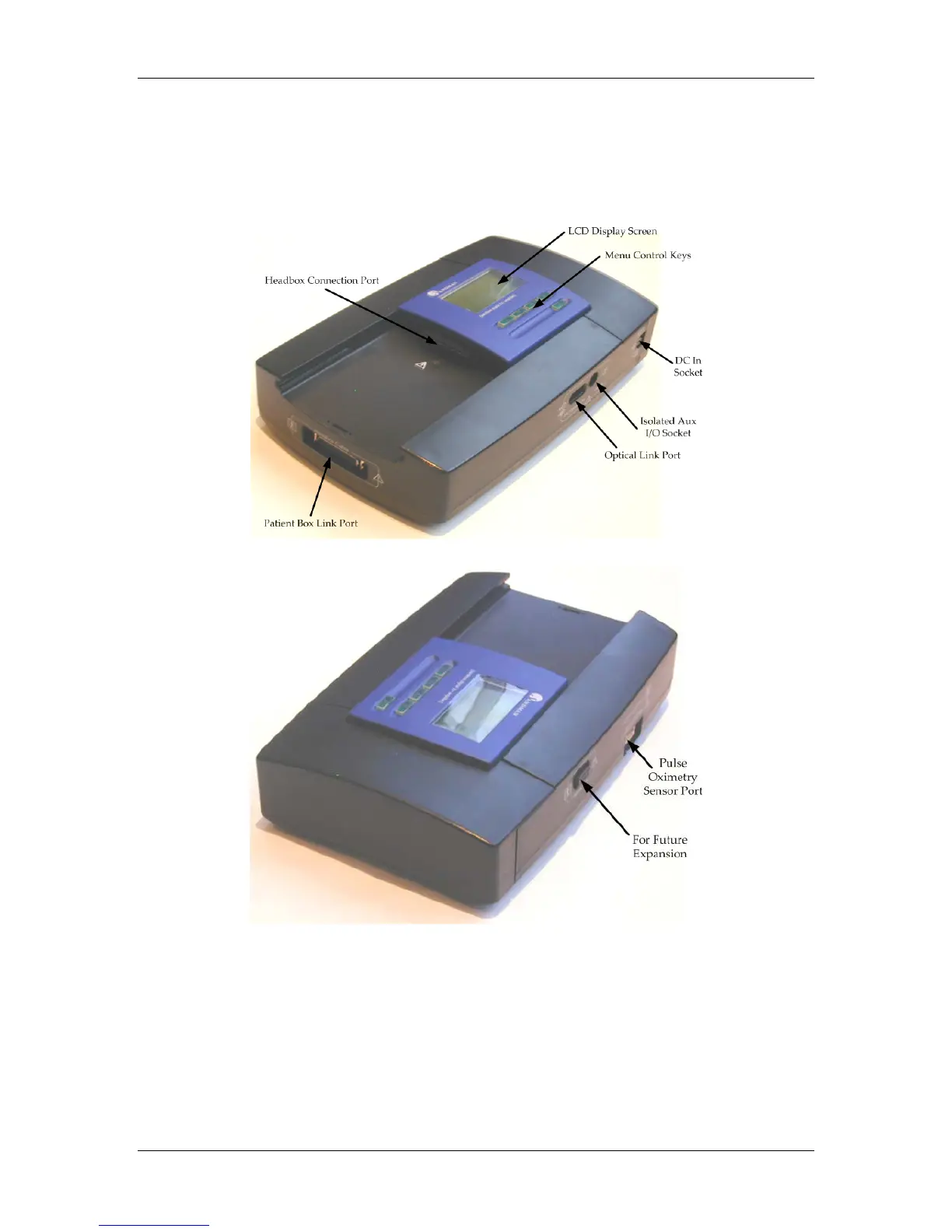

Figure 6. SD32+ amplifier’s external connections (front)
Figure 7. SD32+ amplifier’s external connections (back)
15
