14 EMC VNX5500 Parts Location Guide
Disk processor enclosure (DPE)
SP

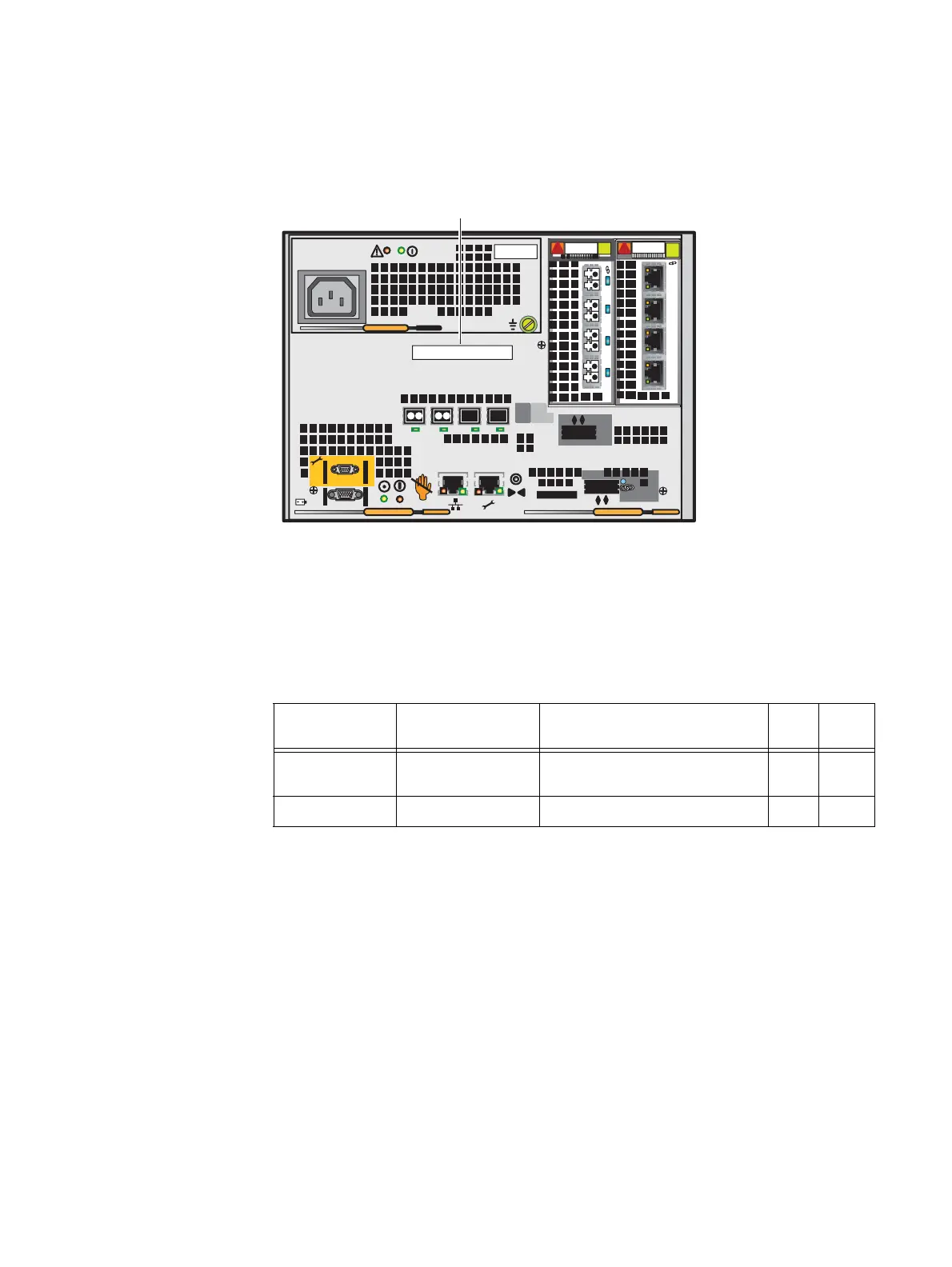

Figure 9 shows the part number label location on the SP.
Figure 9 Example of the SP
Table 6 lists the part number label location, part number, description, and whether it is a
FRU or CRU.
To access the SP CPU, you must first remove the SP from the 3U DPE (Figure 10 on
page 15). Then, you must remove the power supply/cooling fan modules (Figure 11 on
page 15).
X4
2
3
4
5
6Gb
SAS
8Gb
bre
1
0 X4
6Gb SAS
0123
PART NUMBER
REV A09 A
0
123
PART NUMBER
REV A09 A
SP part number (P/N) label
VNX-000613
Table 6 SP CPU part number
Part number label
location (Figure 9) Part number Description FRU CRU
110-140-402B SP 2.0-GHz CPU with 12 GB of
memory
110-140-420B SP 2.0 GHz CPU without memory 
