EMC VNX5500 - DPE 3 U, 25 (2.5-Inch) Disk Drive

Disk processor enclosure (DPE)
EMC VNX5500 Parts Location Guide 11
DPE 3U, 25 (2.5-inch) disk drive
Figure 6 shows the front view of the DPE 3U, 25 (2.5-inch) disk drives.
Note: You can visually distinguish disk module kinds by their type, capacity, and speed
labels, and by the design of the latch and handle on each disk module (Figure 6).

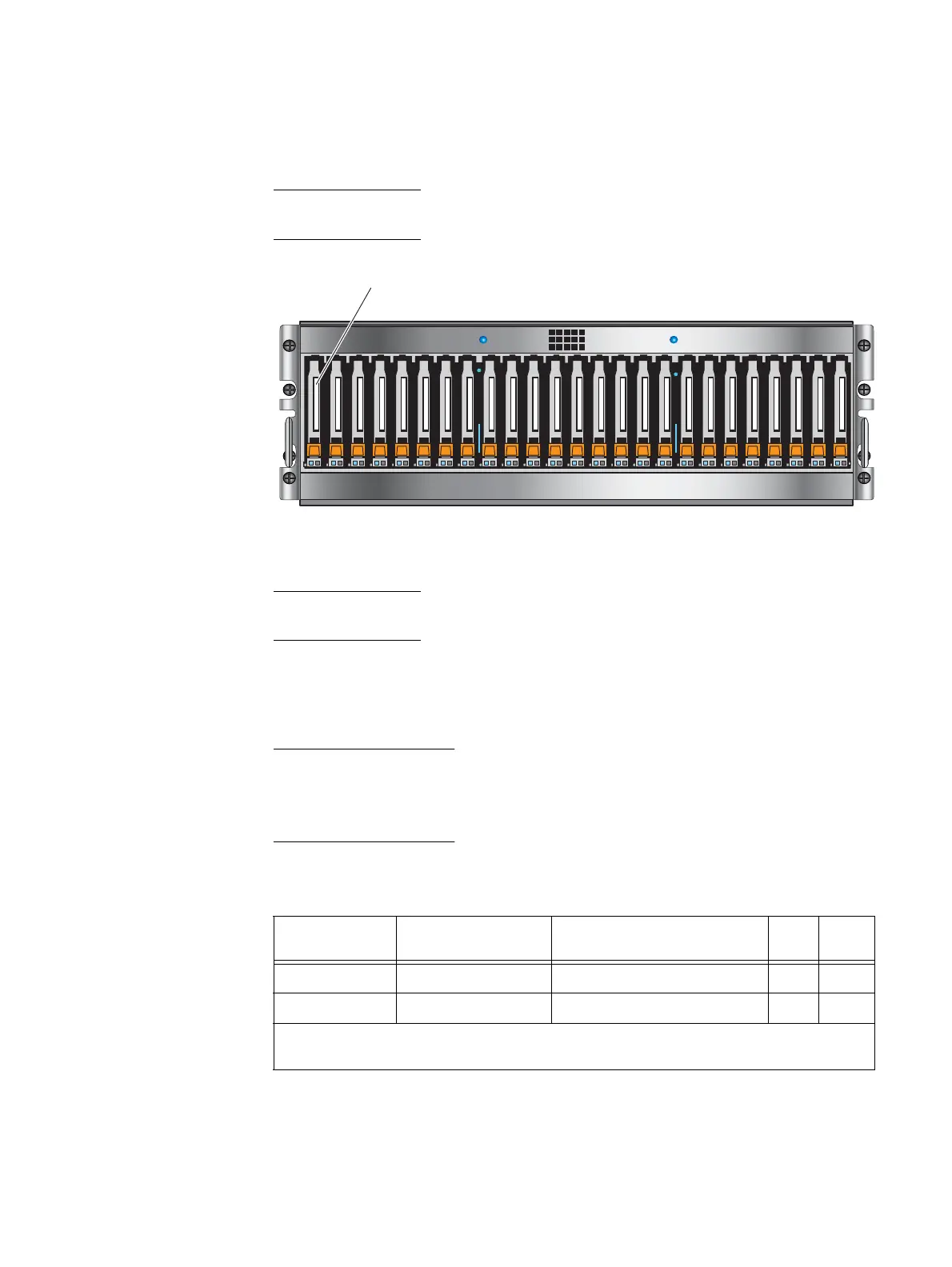

Figure 6 Example of the DPE 3U, 25 (2.5-inch) disk drive (front view)
Note: Figure 6 is for illustrative purposes only. The front of the disk modules may be a little
different than the ones in your particular cabinet.
Table 3 is an example of the parts available for the 3U, 25 (2.5-inch) DPE and lists the part
number label location, part number, description, and whether it is a FRU or CRU.
IMPORTANT
Due to the extensive variety of disk module types, Table 3 only lists two disk types. EMC
recommends that you refer to the latest
EMC VNX5500, VNX5700, and VNX7500 Series
Storage Systems Disk and OE Matrix
Guide to ensure that you have the correct part for
your configuration.
24
0
12345678910 11 12 13 14 15 16 17 18 19 20 21 22 23 24
0
Part Number Label
VNX-000603
Table 3 DPE 3U, 25 (2.5-inch) disk module part numbers
Part number label
location (Figure 6) Part number Description (see note) FRU CRU
005048946 300 GB, 6 Gb/s SAS, 10k rpm 
005049250 600 GB, 6 Gb/s SAS, 10k rpm 
Note: The description field describes the disk module type, capacity, drive type, and spindle
speed (rpm).
