EMC VNX5500 - SP Power Supply;Cooling Module

Disk processor enclosure (DPE)
EMC VNX5500 Parts Location Guide 13
SP power supply/cooling module

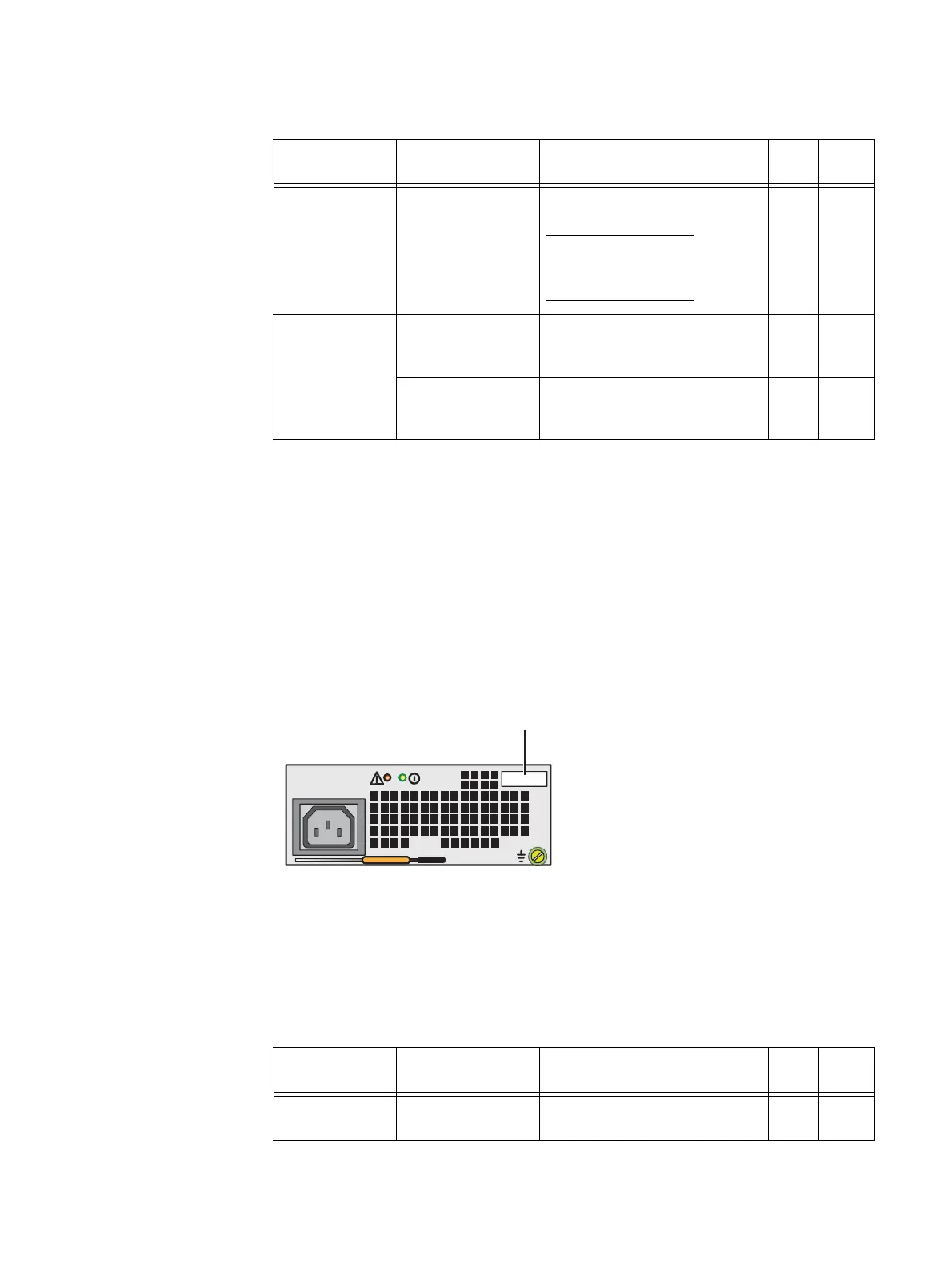

Figure 8 shows the part number label location on the power supply/cooling module used
in the Block and File VNX5500 platform SPs (A and B).
Figure 8 Example of a power supply module/cooling
Table 5 lists the part number label location, part number, description, and whether it is a
FRU or CRU.
100-562-718 I/O module filler includes Do Not
Remove label
Note: This filler panel is only used
when the SP I/O module slots are
empty.
4 110-140-402B SP 2.0-GHz CPU, with 12 GB of
memory (for a closer view, see
Figure 9 on page 14)
110-140-420B SP 2.0-GHz CPU, without memory
(for a closer view, see Figure 9 on
page 14)

1. This part is not shown in the example DPE illustration in Figure 7 on page 12. For a closer view, go to
Figure 21 on page 25.
2. This part is not shown in the example DPE illustration in Figure 7 on page 12. For a closer view, go to
Figure 22 on page 26.
3. This part is not shown in the example DPE illustration in Figure 7 on page 12. For a closer view, go to
Figure 23 on page 27.
4. This part is not shown in the example DPE illustration in Figure 7 on page 12. For a closer view, go to
Figure 28 on page 32.
Table 4 DPE chassis, SP, management module, and I/O module part numbers (continued)
Part number label
location (Figure 7) Part number Description FRU CRU
Part number (P/N) label
VNX-000608
Table 5 Power supply module/cooling fan part number
Part number label
location (Figure 8) Part number Description FRU CRU
071-000-529 1U AC/DC, 875W, dual power
supply

