1. MACHINE AND FEATURES
18
2
3 - 17
4
BUTTON HOLER ZIGZAG WIDTH
WW
14
5
, I-
10
9 15 16
13 6
7
11
12

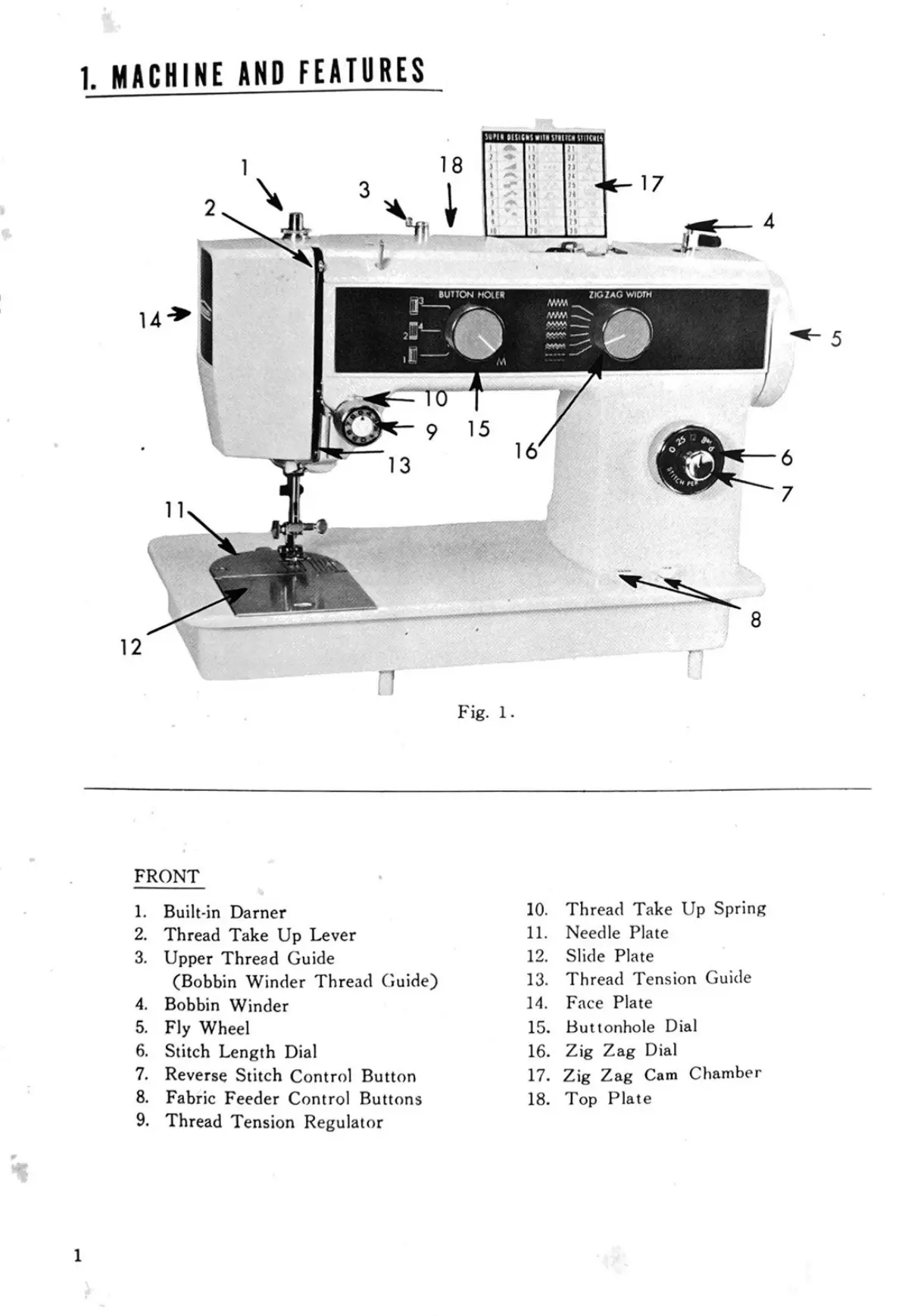

Fig. 1.
FRONT
1. Built-in Darner
2. Thread Take Up Lever
3. Upper Thread Guide
(Bobbin Winder Thread Guide)
4. Bobbin Winder
5. Fly Wheel
6. Stitch Length Dial
7. Reverse Stitch Control Button
8. Fabric Feeder Control Buttons
9. Thread Tension Regulator
10. Thread Take Up Spring
11. Needle Plate
12. Slide Plate
13. Thread Tension Guide
14. Face Plate
15. Buttonhole Dial
16. Zig Zag Dial
17. Zig Zag Cam Chamber
18. Top Plate
1
