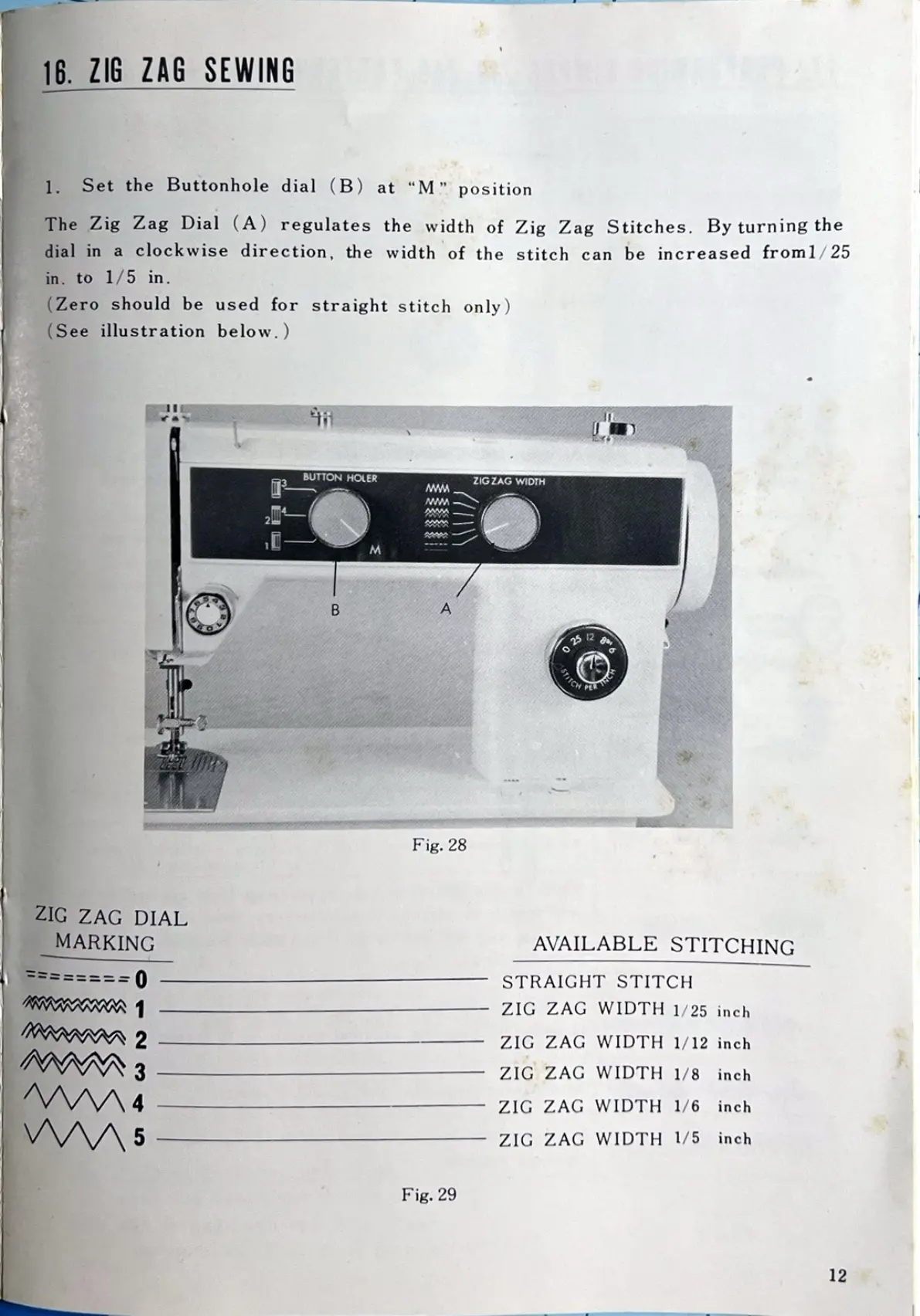

16. ZIG ZAG SEWING
1. Set the Buttonhole dial (B) at "M" position
The Zig Zag Dial (A) regulates the width of Zig Zag Stitches. By turning the
dial in a clockwise direction, the width of the stitch can be increased from / 25
in. to 1/5 in.
(Zero should be used for straight stitch only)
(See illustration below.)
9?
BUTTON HOLER ZIGZAG WIDTH
25 12
THON TH
Fig. 28
ZIG ZAG DIAL
MARKING
======== 0
2
3
4
5
AVAILABLE STITCHING
STRAIGHT STITCH
ZIG ZAG WIDTH 1/25 inch
ZIG ZAG WIDTH 1/12 inch
ZIG ZAG WIDTH 1/8 inch
ZIG ZAG WIDTH 1/6 inch
ZIG ZAG WIDTH 1/5 inch
Fig. 29
