EMDEKO LT-72 - Winding Bobbin

F
Fig. 7 Fig. 6

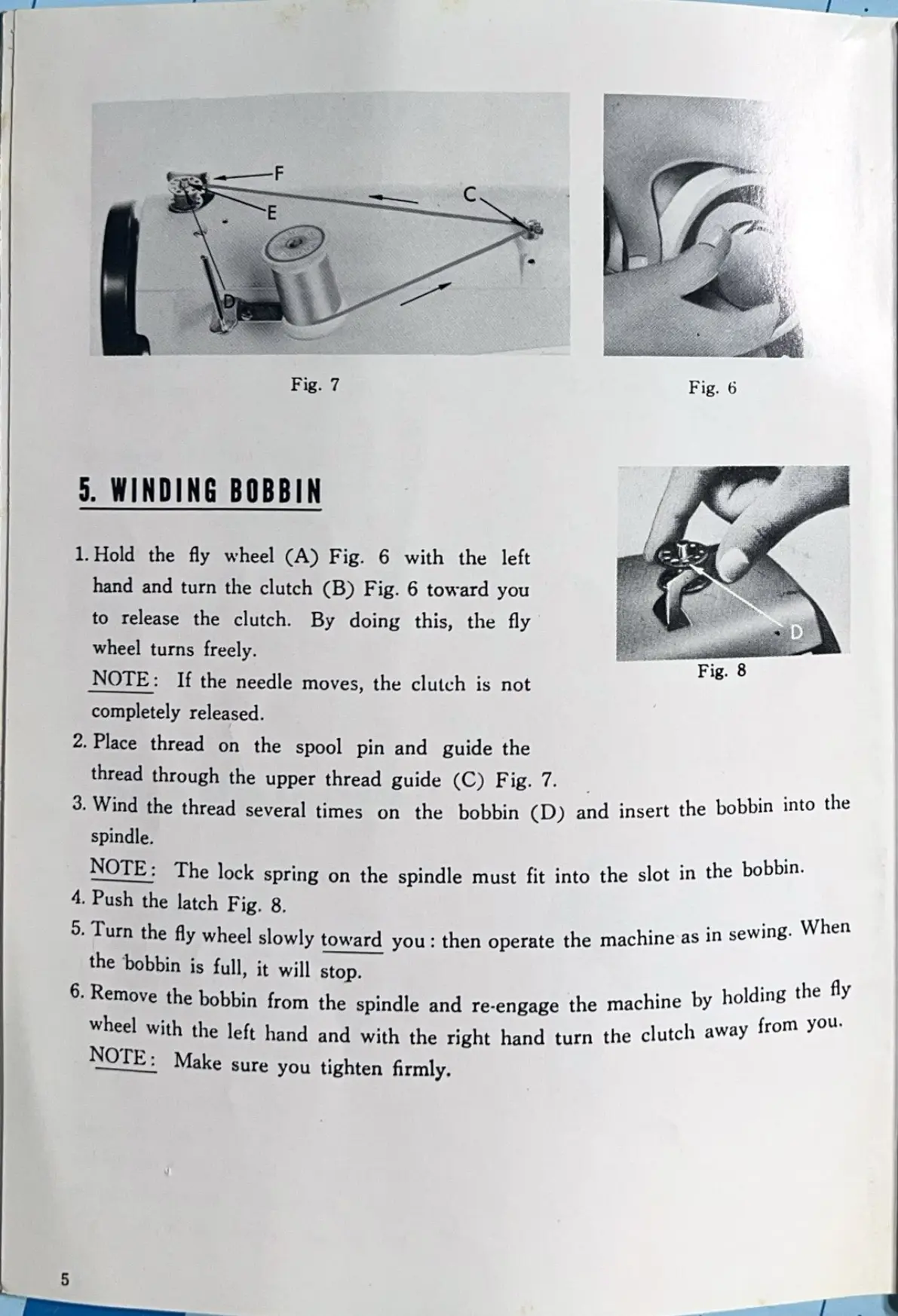

5. WINDING BOBBIN
1. Hold the fly wheel (A) Fig. 6 with the left
hand and turn the clutch (B) Fig. 6 toward you
to release the clutch. By doing this, the fly
wheel turns freely.
NOTE: If the needle moves, the clutch is not
Fig. 8
completely released.
2. Place thread on the spool pin and guide the
thread through the upper thread guide (C) Fig. 7.
3. Wind the thread several times on the bobbin (D) and insert the bobbin into the
spindle.
NOTE: The lock spring on the spindle must fit into the slot in the bobbin.
4. Push the latch Fig. 8.
5. Turn the fly wheel slowly toward you: then operate the machine as in sewing. When
the bobbin is full, it will stop.
6. Remove the bobbin from the spindle and re-engage the machine by holding the fly
wheel with the left hand and with the right hand turn the clutch away from you.
NOTE: Make sure you tighten firmly.
5
