NEEDLE
FLAT SIDE
Fig. 4
B
-C
Fig. 5

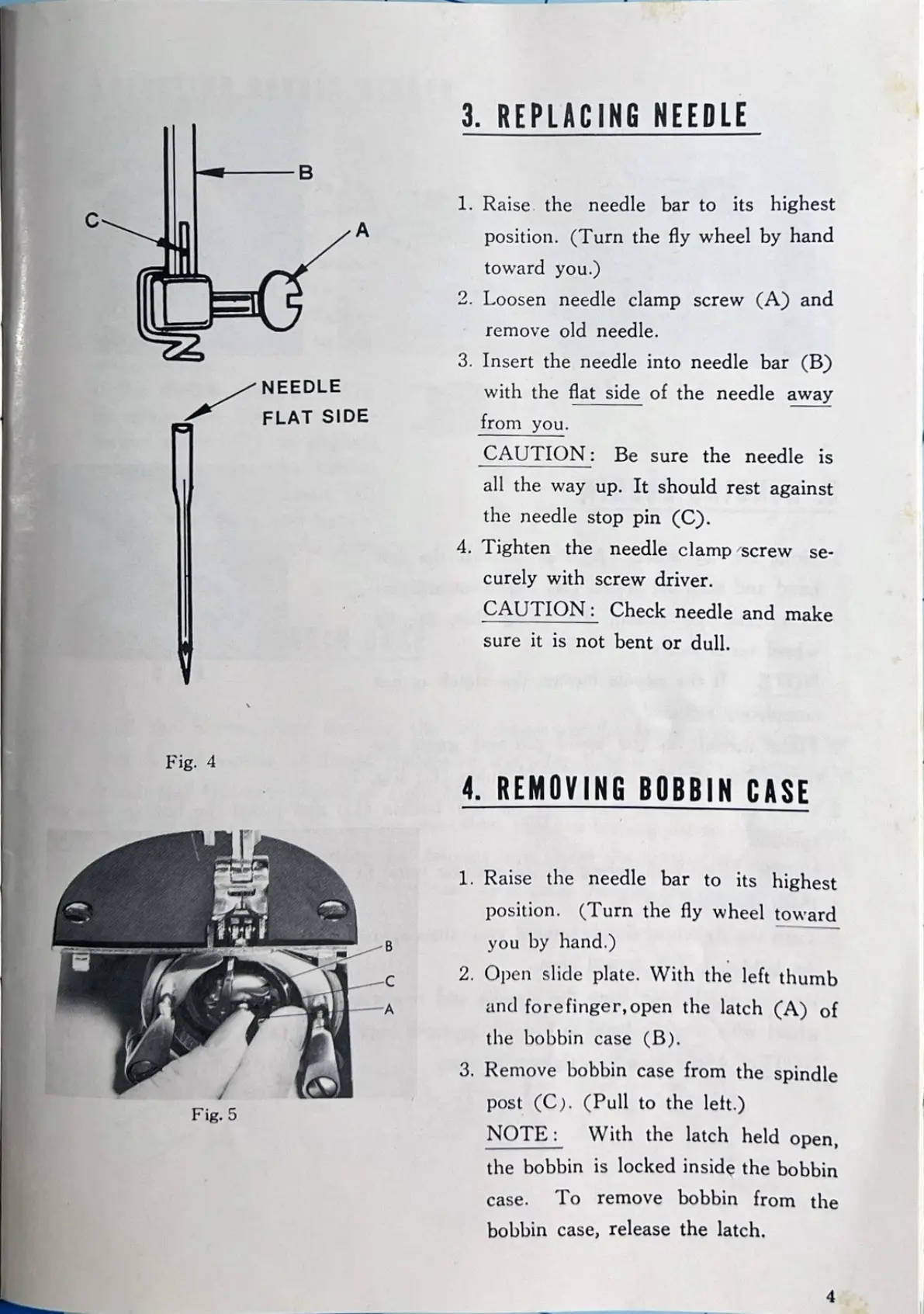

3. REPLACING NEEDLE
1. Raise. the needle bar to its highest
position. (Turn the fly wheel by hand
toward you.)
2. Loosen needle clamp screw (A) and
remove old needle.
3. Insert the needle into needle bar (B)
with the flat side of the needle away
from you.
CAUTION: Be sure the needle is
all the way up. It should rest against
the needle stop pin (C).
4. Tighten the needle clamp screw se-
curely with screw driver.
CAUTION: Check needle and make
sure it is not bent or dull.
4. REMOVING BOBBIN CASE
1. Raise the needle bar to its highest
position. (Turn the fly wheel toward
you by hand.)
2. Open slide plate. With the left thumb
and forefinger, open the latch (A) of
the bobbin case (B).
3. Remove bobbin case from the spindle
post (C). (Pull to the lett.)
NOTE: With the latch held open,
the bobbin is locked inside the bobbin
case. To remove bobbin from the
bobbin case, release the latch.
