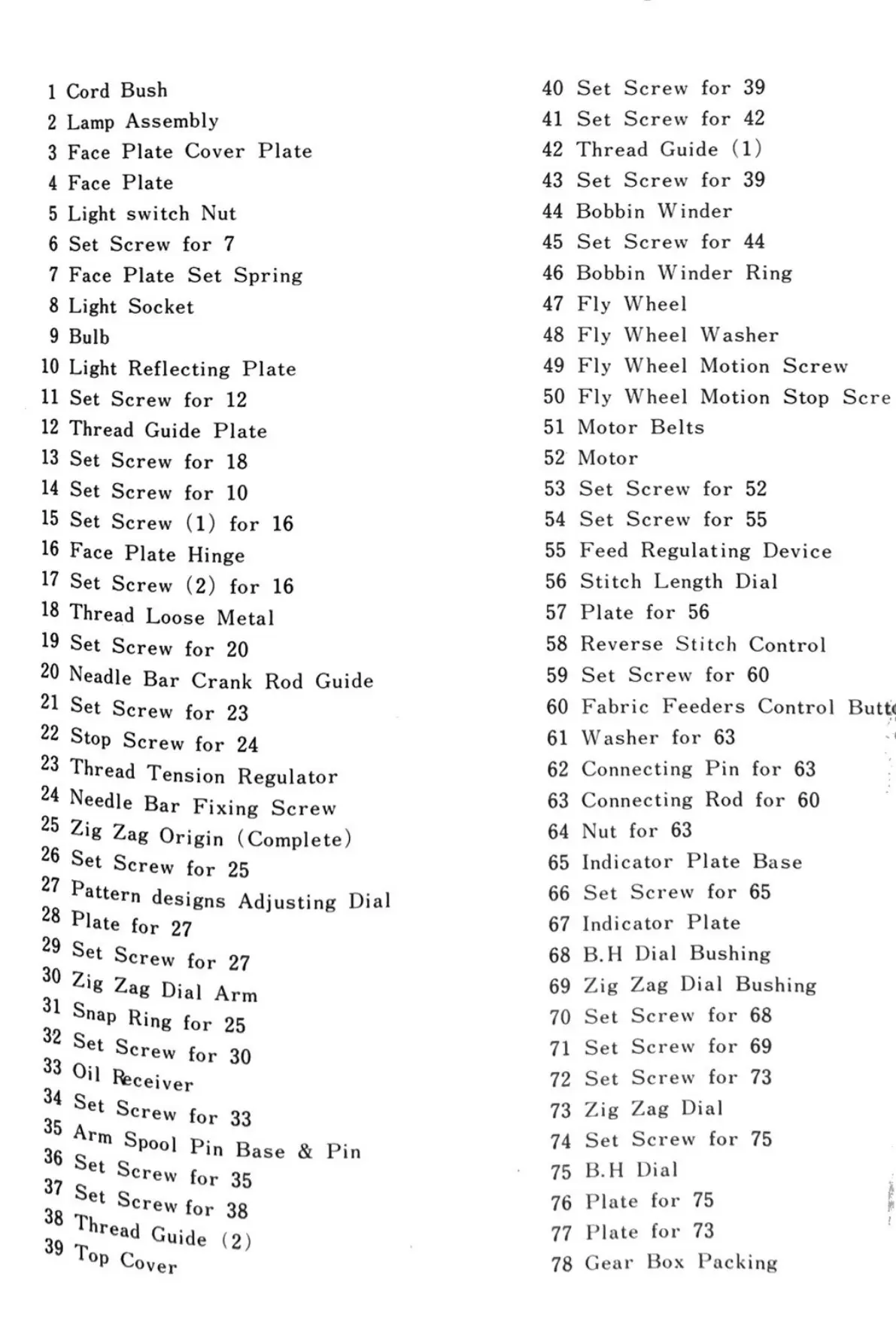

EMDEKO LT-72 - Page 34

1 Cord Bush
2 Lamp Assembly
3 Face Plate Cover Plate
4 Face Plate
5 Light switch Nut
6 Set Screw for 7
7 Face Plate Set Spring
8 Light Socket
9 Bulb
10 Light Reflecting Plate
11 Set Screw for 12
12 Thread Guide Plate
13 Set Screw for 18
14 Set Screw for 10
15 Set Screw (1) for 16
16 Face Plate Hinge
17 Set Screw (2) for 16
18 Thread Loose Metal
19 Set Screw for 20
20 Neadle Bar Crank Rod Guide
21 Set Screw for 23
22 Stop Screw for 24
23 Thread Tension Regulator
24 Needle Bar Fixing Screw
25 Zig Zag Origin (Complete)
26 Set Screw for 25
27 Pattern designs Adjusting Dial
28 Plate for 27
29 Set Screw for 27
30 Zig Zag Dial Arm
31 Snap Ring for 25
32 Set Screw for 30
33 Oil Receiver
34 Set Screw for 33
35 Arm Spool Pin Base & Pin
36 Set Screw for 35
37 Set Screw for 38
38 Thread Guide (2)
39 Top Cover
40 Set Screw for 39
41 Set Screw for 42
42 Thread Guide (1)
43 Set Screw for 39
44 Bobbin Winder
45 Set Screw for 44
46 Bobbin Winder Ring
47 Fly Wheel
48 Fly Wheel Washer
49 Fly Wheel Motion Screw
50 Fly Wheel Motion Stop Scre
51 Motor Belts
52 Motor
53 Set Screw for 52
54 Set Screw for 55
55 Feed Regulating Device
56 Stitch Length Dial
57 Plate for 56
58 Reverse Stitch Control
59 Set Screw for 60
60 Fabric Feeders Control Butt
61 Washer for 63
62 Connecting Pin for 63
63 Connecting Rod for 60
64 Nut for 63
65 Indicator Plate Base
66 Set Screw for 65
67 Indicator Plate
68 B.H Dial Bushing
69 Zig Zag Dial Bushing
70 Set Screw for 68
71 Set Screw for 69
72 Set Screw for 73
73 Zig Zag Dial
74 Set Screw for 75
75 B.H Dial
76 Plate for 75
77 Plate for 73
