EMDEKO LT-72 - Page 37

154.
57
58.
197

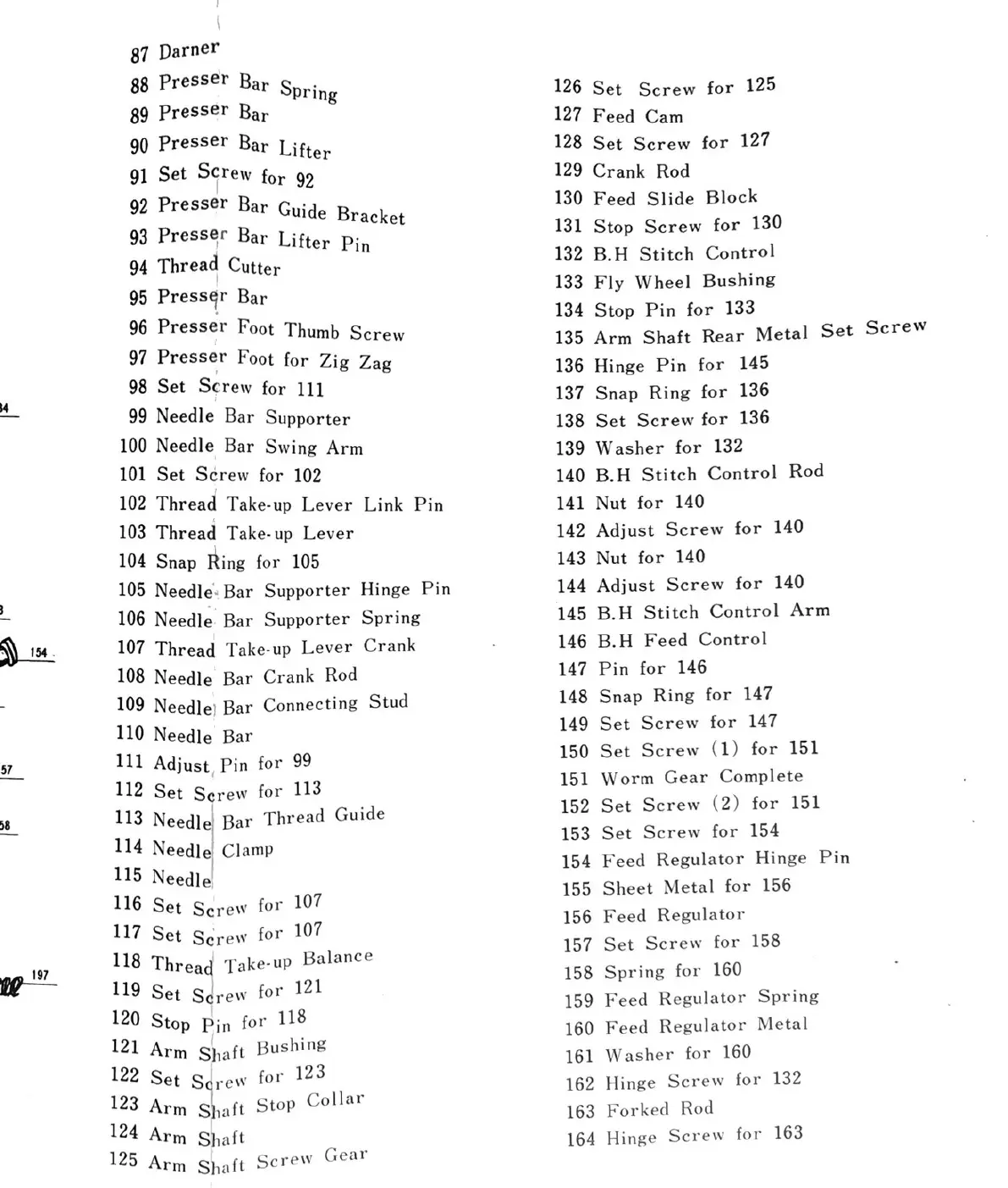

87 Darner
88 Presser Bar Spring
89 Presser Bar
90 Presser Bar Lifter
91 Set Screw for 92
92 Presser Bar Guide Bracket
93 Presser Bar Lifter Pin
94 Thread Cutter
95 Presser Bar
96 Presser Foot Thumb Screw
97 Presser Foot for ZigZag
98 Set Screw for 111
99 Needle Bar Supporter
100 Needle Bar Swing Arm
101 Set Screw for 102
102 Thread Take-up Lever Link Pin
103 Thread Take-up Lever
104 Snap Ring for 105
105 Needle Bar Supporter Hinge Pin
106 Needle Bar Supporter Spring
107 Thread Take-upLever Crank
108 Needle Bar Crank Rod
109 Needle Bar Connecting Stud
110 Needle Bar
111 Adjust, Pin for 99
112 Set Screw for 113
113 Needle Bar Thread Guide
114 Needle Clamp
115 Needle
116 Set Screw for 107
117 Set Screw for 107
118 Thread Take-up Balance
119 Set Screw for 121
120 Stop Pin for 118
121 Arm Shaft Bushing
122 Set Screw for 123
123Arm Shaft Stop Collar
124 Arm Shaft
125 Arm Shaft Screw Gear
126 Set Screw for 125
127 Feed Cam
128 Set Screw for 127
129 Crank Rod
130 Feed Slide Block
131 Stop Screw for 130
132 B.H Stitch Control
133 Fly Wheel Bushing
134 Stop Pin for 133
135 Arm Shaft Rear Metal Set Screw
136 Hinge Pin for 145
137 Snap Ring for 136
138 Set Screw for 136
139 Washer for 132
140 B.H Stitch Control Rod
141 Nut for 140
142 Adjust Screw for 140
143 Nut for 140
144 Adjust Screw for 140
145 B.H Stitch Control Arm
146 B.H Feed Control
147 Pin for 146
148 Snap Ring for 147
149 Set Screw for 147
150 Set Screw (1) for 151
151 Worm Gear Complete
152 Set Screw (2) for 151
153 Set Screwfor 154
154 Feed Regulator Hinge Pin
155 Sheet Metal for 156
156 Feed Regulator
157 Set Screw for 158
158 Spring for 160
159 Feed Regulator Spring
160 Feed Regulator Metal
161 Washer for 160
162 Hinge Screw for 132
163 Forked Rod
164 Hinge Screw for 163
