Emec MAX5 - Appendix: Conductivity Modules

To Next Page

To Previous Page

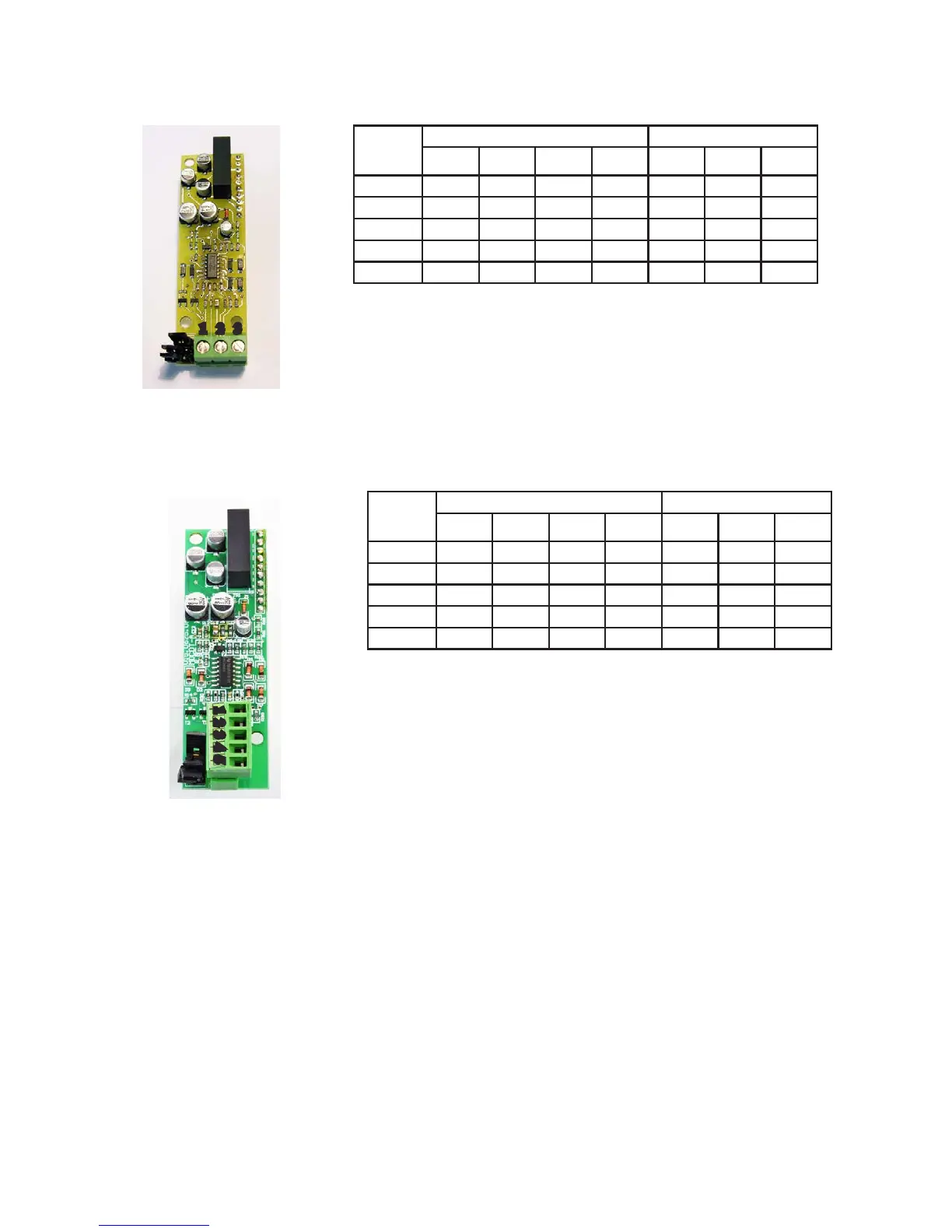

MDCD

1 2 3

Connect probe as follows:

Block n.1 :Shield

Block n.2 : Black (probe)

Block n.3 : Red (probe)

MAX5

Probe

Scale

PROBE TYPE JUMPERS SETTINGS

K Platinum Graphite Inox J3 J4 J5

0 - 300.0 uS 0.1 ECDHL/01 x ECDI/01 OPEN CLOSED CLOSED

0 - 3000 uS 1 ECDHL/1 ECDC/1 ECDI/1 OPEN CLOSED OPEN

0 - 30.00 mS 1 ECDHL/1 ECDC/1 x CLOSED OPEN OPEN

0 - 30.00 mS 10 ECDHL/10 ECDC/10 x OPEN OPEN OPEN

0 - 300.0 mS 10 ECDHL/10 ECDC/10 x CLOSED OPEN OPEN

CONDUCTIVITY modules

MDCDT

Connect probe as follows:

Block n.1 : Conductivity Probe (red)

Block n.2 : Conductivity Probe (hot-black)

Block n.3 : GND (Shield-blue)

Block n.4 : NTC 10Kohm 25°C Temperature Probe (white)

Block n.5 : NTC 10Kohm 25°C Temperature Probe (green)
