ES120 OPERATION MANUAL
IU ES120 2009-03-01 ENG.3.0
3. Accessories for electrosurgical operations
The system is equipped with high-quality surgical accessories permitting a variety
of treatment measures to be performed in general surgery, vascular surgery, gynaecology and
other fields.

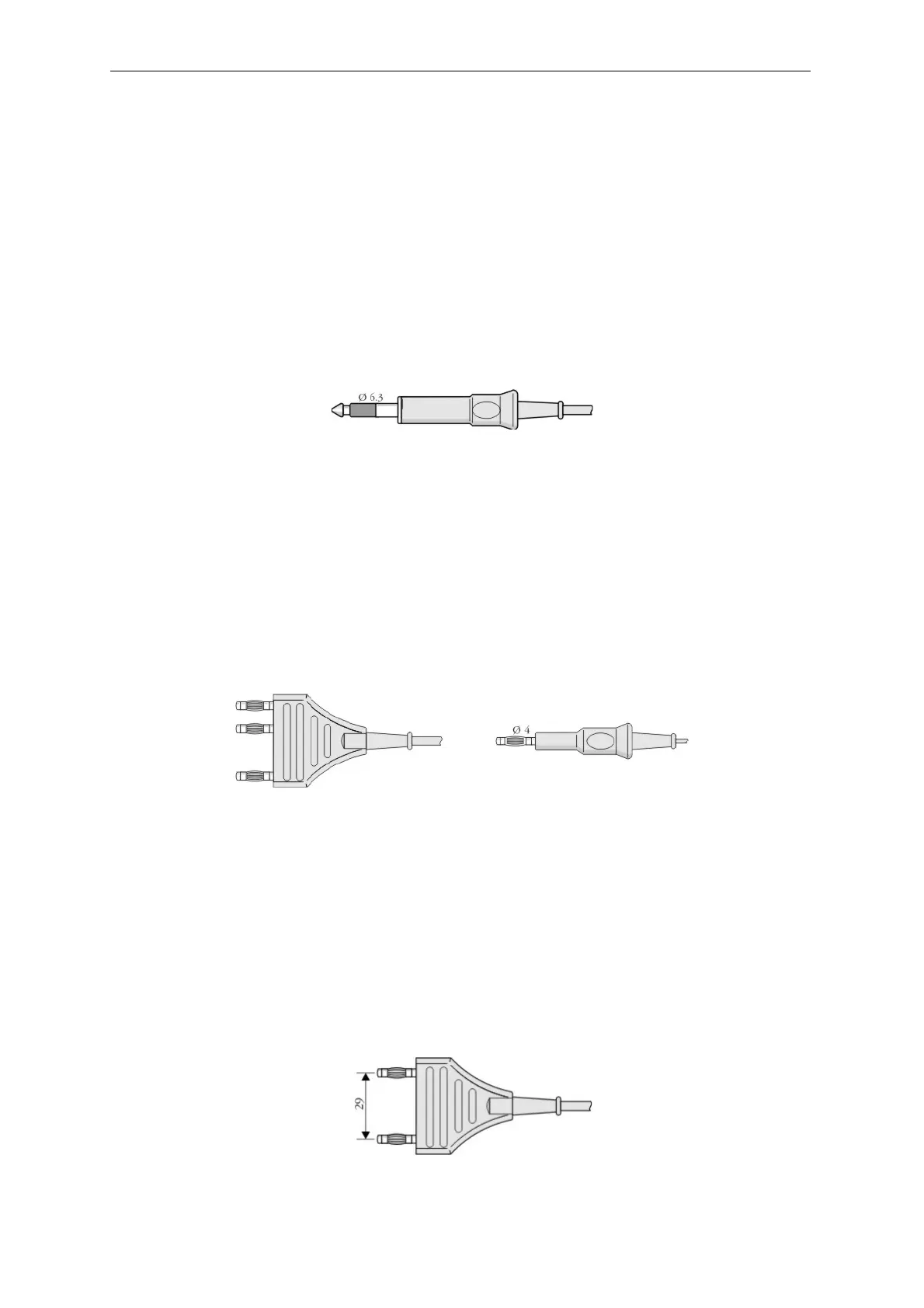

The connecting sockets for
the neutral electrode output (Fig. 3, pos.2)
is made
in accordance with the 6.3mm 1-pin standard.
Neutral electrode plug.
More information on the neutral electrode can be found in chapter '' 8.2 Neutral
electrode control''.
The socket of
the monopolar active electrode (Fig. 3, pos.3)
is also made
in accordance with the so-called 3-pin standard.
Active electrode plug. Monopolar endoscope plug.
Standard electrodes with the following diameters may be connected to the system :
•
4mm – using handles with 4mm diameter,
•
2.4mm – using handles with 2.4mm or 4 mm in diameter (with an adapter for
2.4 mm electrodes).
The bipolar output sockets
(Fig. 3, pos. 4)
are made according to 29 mm standard.
2-pin bipolar plug.
7
