50
Epsilon Ei DeviceNet Drive Reference Manual

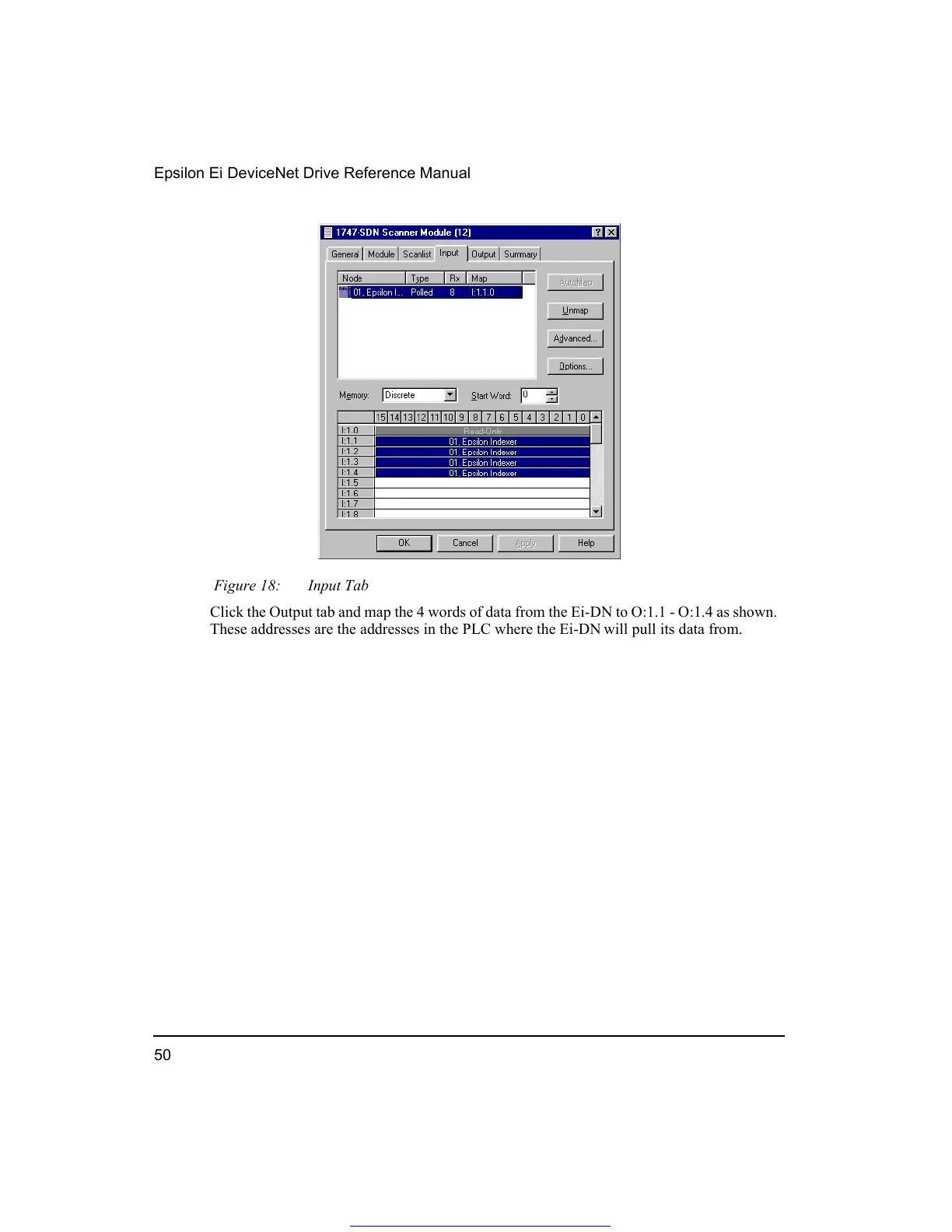

Figure 18: Input Tab
Click the Output tab and map the 4 words of data from the Ei-DN to O:1.1 - O:1.4 as shown.
These addresses are the addresses in the PLC where the Ei-DN
will pull its data from.
