51
Network Configuration Quick Start

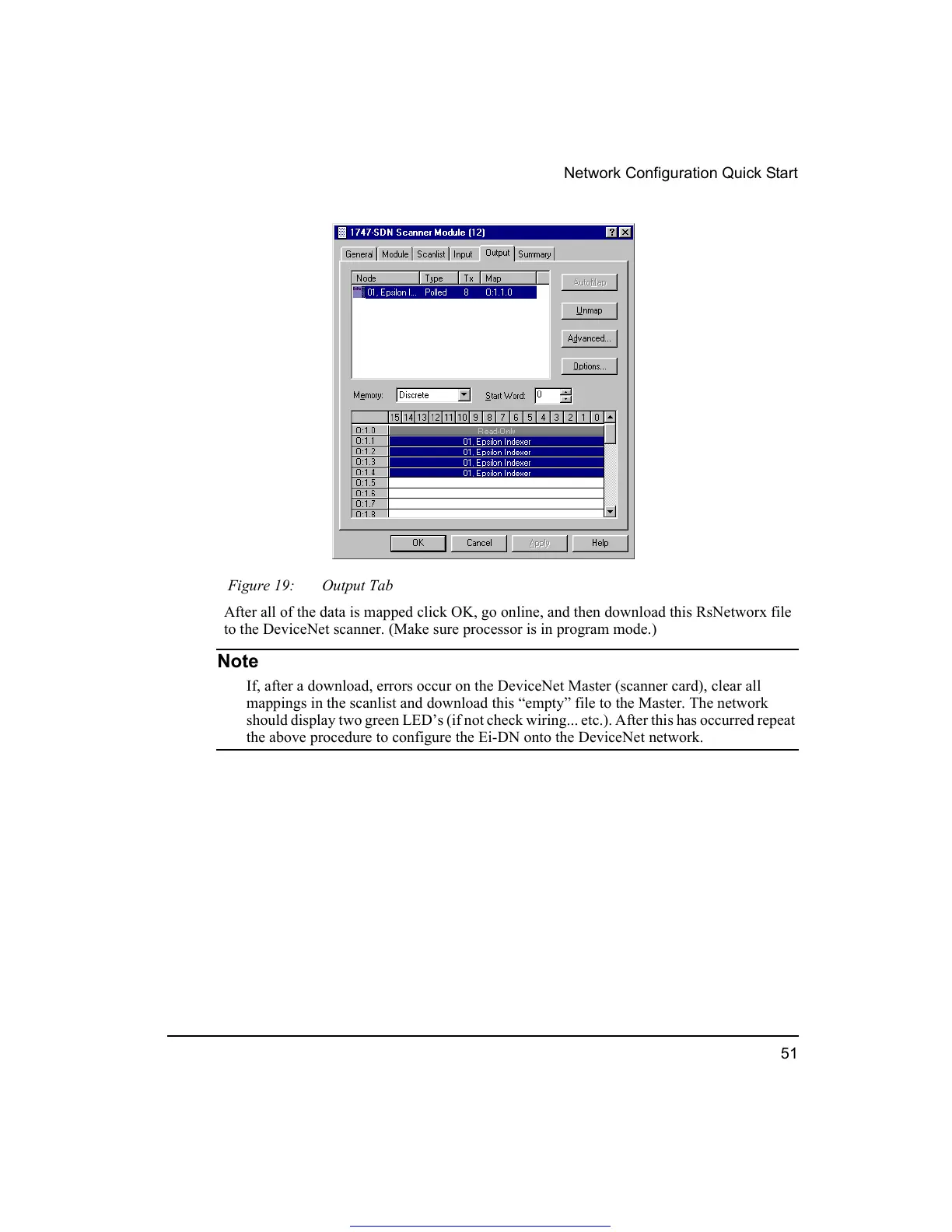

Figure 19: Output Tab
After all of the data is mapped click OK, go online, and then download this RsNetworx file
to the DeviceNet scanner. (Make sure processor is in program mode.)
Note
If, after a download, errors occur on the DeviceNet Master (scanner card), clear all
mappings in the scanlist and download this “empty” file to the Master. The network
should display two green LED’s (if not check wiring... etc.). After this has occurred repeat
the above procedure to configure the Ei-DN onto the DeviceNet network.
