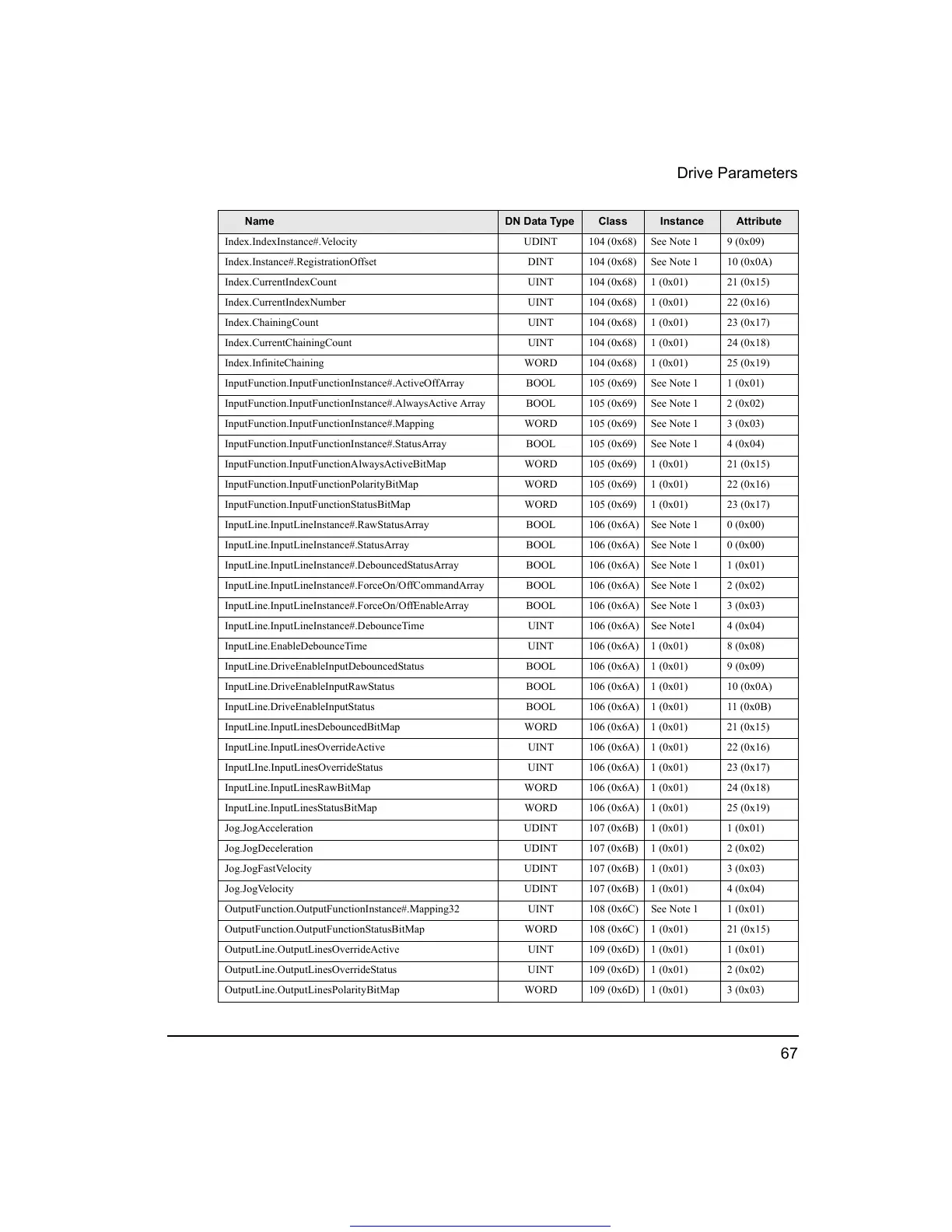

Drive Parameters

Index.IndexInstance#.Velocity UDINT 104 (0x68) See Note 1 9 (0x09)

Index.Instance#.RegistrationOffset DINT 104 (0x68) See Note 1 10 (0x0A)

Index.CurrentIndexCount UINT 104 (0x68) 1 (0x01) 21 (0x15)

Index.CurrentIndexNumber UINT 104 (0x68) 1 (0x01) 22 (0x16)

Index.ChainingCount UINT 104 (0x68) 1 (0x01) 23 (0x17)

Index.CurrentChainingCount UINT 104 (0x68) 1 (0x01) 24 (0x18)

Index.InfiniteChaining WORD 104 (0x68) 1 (0x01) 25 (0x19)

InputFunction.InputFunctionInstance#.ActiveOffArray BOOL 105 (0x69) See Note 1 1 (0x01)

InputFunction.InputFunctionInstance#.AlwaysActive Array BOOL 105 (0x69) See Note 1 2 (0x02)

InputFunction.InputFunctionInstance#.Mapping WORD 105 (0x69) See Note 1 3 (0x03)

InputFunction.InputFunctionInstance#.StatusArray BOOL 105 (0x69) See Note 1 4 (0x04)

InputFunction.InputFunctionAlwaysActiveBitMap WORD 105 (0x69) 1 (0x01) 21 (0x15)

InputFunction.InputFunctionPolarityBitMap WORD 105 (0x69) 1 (0x01) 22 (0x16)

InputFunction.InputFunctionStatusBitMap WORD 105 (0x69) 1 (0x01) 23 (0x17)

InputLine.InputLineInstance#.RawStatusArray BOOL 106 (0x6A) See Note 1 0 (0x00)

InputLine.InputLineInstance#.StatusArray BOOL 106 (0x6A) See Note 1 0 (0x00)

InputLine.InputLineInstance#.DebouncedStatusArray BOOL 106 (0x6A) See Note 1 1 (0x01)

InputLine.InputLineInstance#.ForceOn/OffCommandArray BOOL 106 (0x6A) See Note 1 2 (0x02)

InputLine.InputLineInstance#.ForceOn/OffEnableArray BOOL 106 (0x6A) See Note 1 3 (0x03)

InputLine.InputLineInstance#.DebounceTime UINT 106 (0x6A) See Note1 4 (0x04)

InputLine.EnableDebounceTime UINT 106 (0x6A) 1 (0x01) 8 (0x08)

InputLine.DriveEnableInputDebouncedStatus BOOL 106 (0x6A) 1 (0x01) 9 (0x09)

InputLine.DriveEnableInputRawStatus BOOL 106 (0x6A) 1 (0x01) 10 (0x0A)

InputLine.DriveEnableInputStatus BOOL 106 (0x6A) 1 (0x01) 11 (0x0B)

InputLine.InputLinesDebouncedBitMap WORD 106 (0x6A) 1 (0x01) 21 (0x15)

InputLine.InputLinesOverrideActive UINT 106 (0x6A) 1 (0x01) 22 (0x16)

InputLIne.InputLinesOverrideStatus UINT 106 (0x6A) 1 (0x01) 23 (0x17)

InputLine.InputLinesRawBitMap WORD 106 (0x6A) 1 (0x01) 24 (0x18)

InputLine.InputLinesStatusBitMap WORD 106 (0x6A) 1 (0x01) 25 (0x19)

Jog.JogAcceleration UDINT 107 (0x6B) 1 (0x01) 1 (0x01)

Jog.JogDeceleration UDINT 107 (0x6B) 1 (0x01) 2 (0x02)

Jog.JogFastVelocity UDINT 107 (0x6B) 1 (0x01) 3 (0x03)

Jog.JogVelocity UDINT 107 (0x6B) 1 (0x01) 4 (0x04)

OutputFunction.OutputFunctionInstance#.Mapping32 UINT 108 (0x6C) See Note 1 1 (0x01)

OutputFunction.OutputFunctionStatusBitMap WORD 108 (0x6C) 1 (0x01) 21 (0x15)

OutputLine.OutputLinesOverrideActive UINT 109 (0x6D) 1 (0x01) 1 (0x01)

OutputLine.OutputLinesOverrideStatus UINT 109 (0x6D) 1 (0x01) 2 (0x02)

OutputLine.OutputLinesPolarityBitMap WORD 109 (0x6D) 1 (0x01) 3 (0x03)
