72

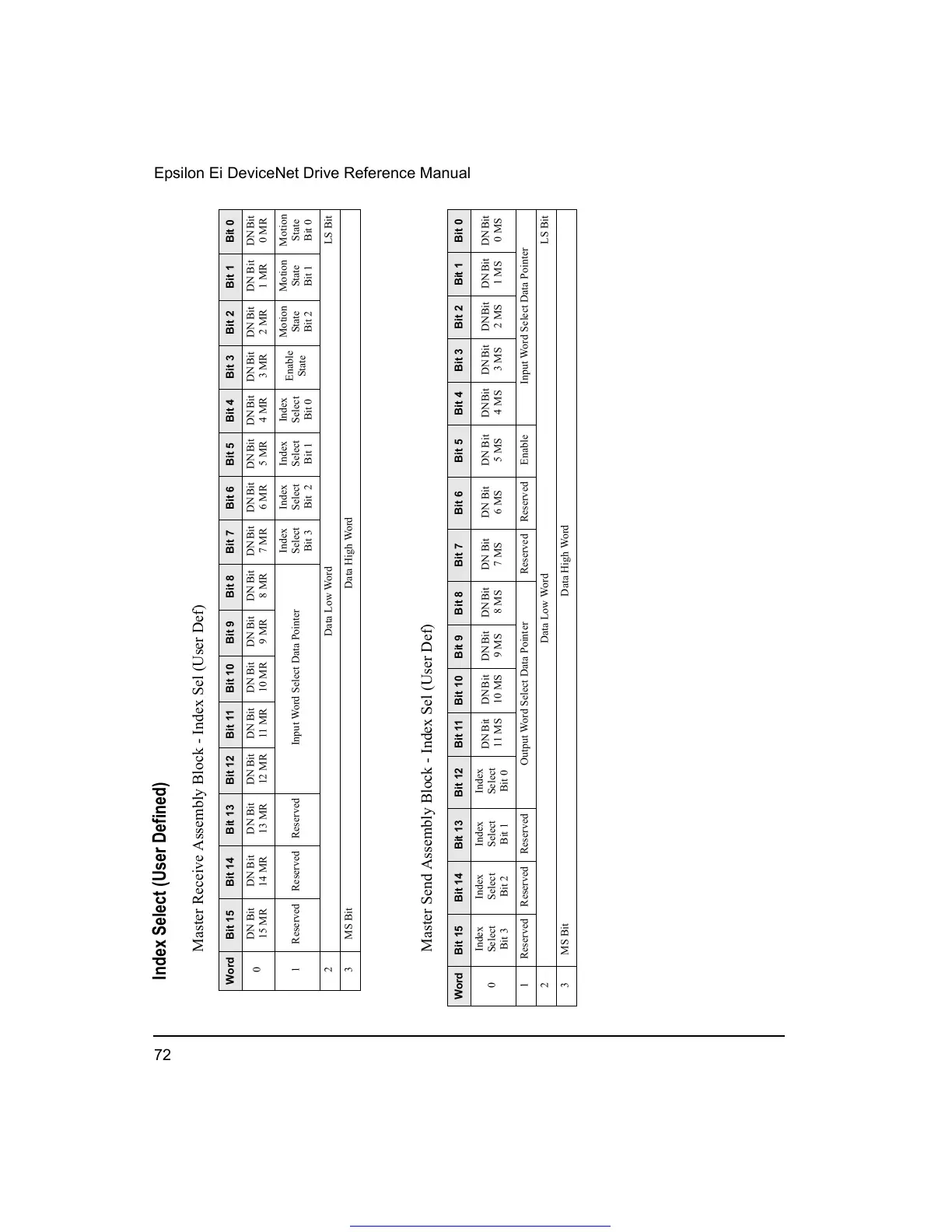

Epsilon Ei DeviceNet Drive Reference Manual
Index Select (User Defined)
Master Receive Assembly Block - Index Sel (User Def)
Master Send Assembly Block - Index Sel (User Def)
Word Bit 15 Bit 14 Bit 13 Bit 12 Bit 11 Bit 10 Bit 9 Bit 8 Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
0
DN Bit
15 MR
DN Bit
14 MR
DN Bit
13 MR
DN Bit
12 MR
DN Bit
11 MR
DN Bit
10 MR
DN Bit
9 MR
DN Bit
8 MR
DN Bit
7 MR
DN Bit
6 MR
DN Bit
5 MR
DN Bit
4 MR
DN Bit
3 MR
DN Bit
2 MR
DN Bit
1 MR
DN Bit
0 MR
1 Reserved Reserved Reserved Input Word Select Data Pointer
Index
Select
Bit 3
Index
Select
Bit 2
Index
Select
Bit 1
Index
Select
Bit 0
Enable
State
Motion
State
Bit 2
Motion
State
Bit 1
Motion
State
Bit 0
2 Data Low Word LS Bit
3 MS Bit Data High Word
Word Bit 15 Bit 14 Bit 13 Bit 12 Bit 11 Bit 10 Bit 9 Bit 8 Bit 7 Bit 6 Bit 5 Bit 4 Bit 3 Bit 2 Bit 1 Bit 0
0
Index
Select
Bit 3
Index
Select
Bit 2
Index
Select
Bit 1
Index
Select
Bit 0
DN Bit
11 MS
DN Bit
10 MS
DN Bit
9 MS
DN Bit
8 MS
DN Bit
7 MS
DN Bit
6 MS
DN Bit
5 MS
DN Bit
4 MS
DN Bit
3 MS
DN Bit
2 MS
DN Bit
1 MS
DN Bit
0 MS
1 Reserved Reserved Reserved Output Word Select Data Pointer Reserved Reserved Enable Input Word Select Data Pointer
2 Data Low Word LS Bit
3 MS Bit Data High Word
