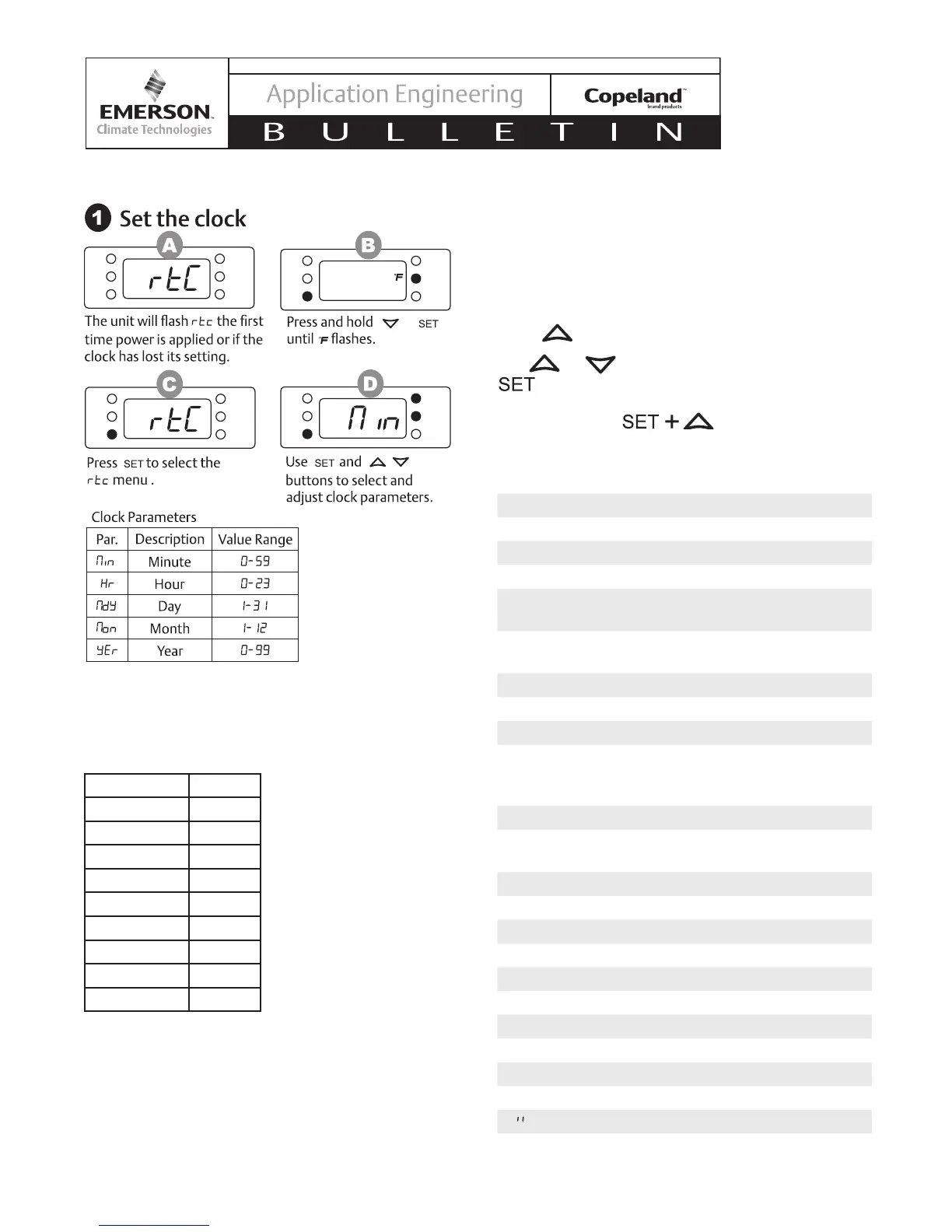

6.7. Changing Clock Setting
6.8. Refrigerant Selection
Using parameter REF set the refrigerant as follows
(refer to nameplate for approved refrigerants):
Refrigerant rEF
R-404A 404
R-507 507
R-134A 134
R-22 r22
R-407C 07C
R-407A 07A
R-407F 07F
R-448A 48A
R-449A 49A
+
6.9. Fast Access Menu
This menu allows viewing measured values from
various probes and view some outputs resulting from
these measurements. The values nP or noP stand for
probe not present or value not evaluated. Err means the
value is out of range, probe is damaged, not connected,
or incorrectly congured.
Press to enter the Fast Access Menu.
Use or arrows to select an entry, then press
to see the value or to go on with other value.
TO EXIT: Press or wait 60 seconds
without pressing the keys.
6.9.1. List of Fast Access Parameters:
 P1P Suction pressure
 P2t Condenser temperature
 P2P Not Used
 P3t Discharge line temperature
 P4t EVI heat exchanger vapor inlet temperature
(XFAL only)
 PSt EVI heat exchanger vapor outlet
temperature (XFAL only)
 P6t Ambient temperature
 P7t Liquid line temperature (XFAL only)
 5H Not used
 oPP Percentage of liquid injection (XFAP/
XFAM) or vapor injection (XFAL) valve
opening.
 LLS Not used
 Std Current condenser temperature target for
fan speed control
 A00 Fan speed percent
 d5o Not used
 L t Not used
 H t Not used
 tU1 Line voltage (1-phase)
 tU2 Line voltage (3-phase)
 tU3 Line voltage (3-phase)
 tA1 Current (1-phase)
 tA2 Current (3-phase)
 tA3 Current (3-phase)
 HM Menu
