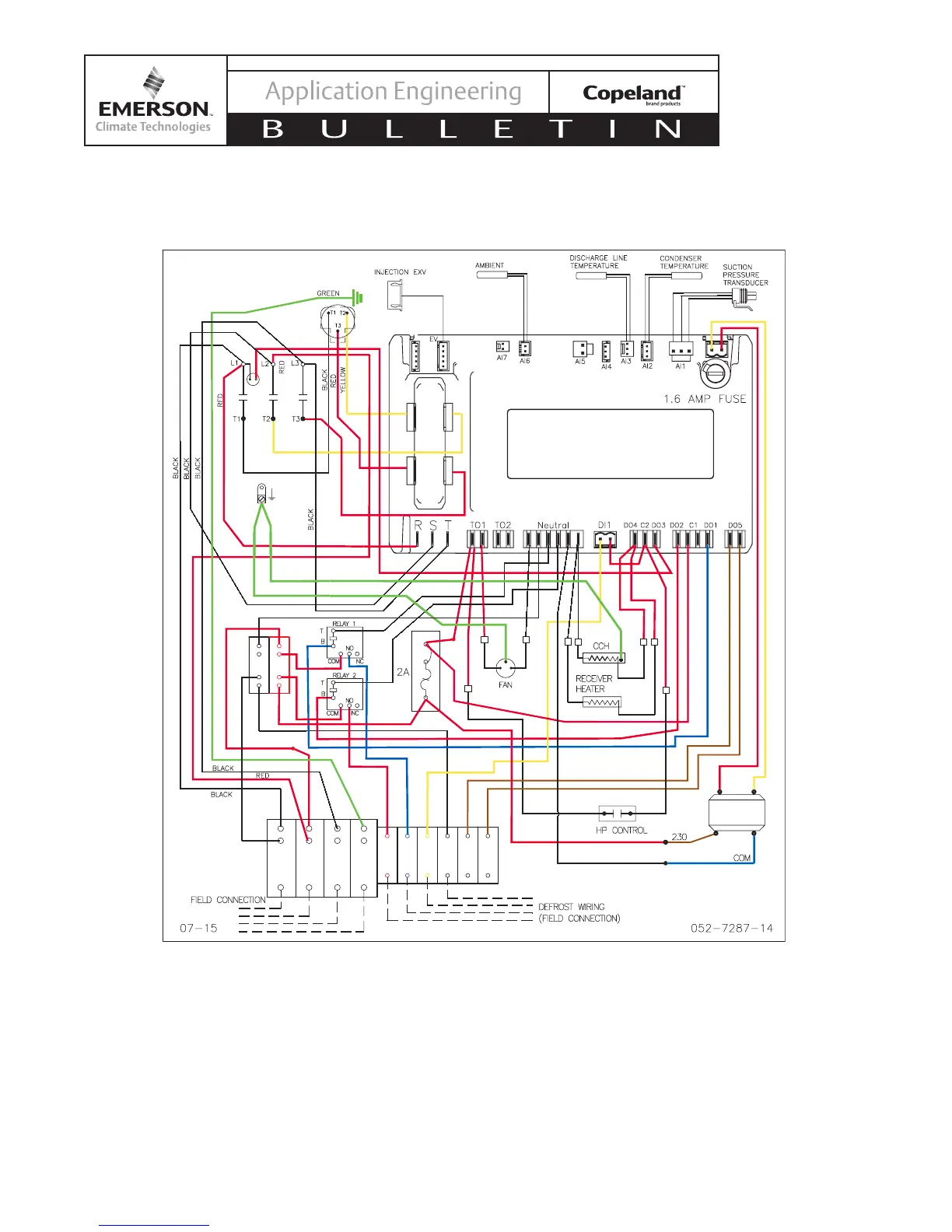

Emerson Copeland Scroll XFAM Series - Medium Temp 3-Phase 1.5-3 HP 1 Condenser Fan Wiring Diagram; Medium Temp 3-Phase Wiring (1 Fan)

Emerson Copeland Scroll XFAM Series
35 pages
Print Icon
To Next Page IconTo Next Page
To Next Page IconTo Next Page
To Previous Page IconTo Previous Page
To Previous Page IconTo Previous Page
Loading...
26
© 2016 Emerson Climate Technologies, Inc.
AE5-1412 R1
3
X
A
2
G
4 N
L2
A
1
L1
L3
052-7287-14
Medium Temp 3-Phase 1.5-3 HP
1 Condenser Fan
