Figure A-3
shows specifications for drilling and spot face grinding when mounting
accelerometers using the stud mount method, and
Figure A-4
shows the correct and
incorrect milling process.

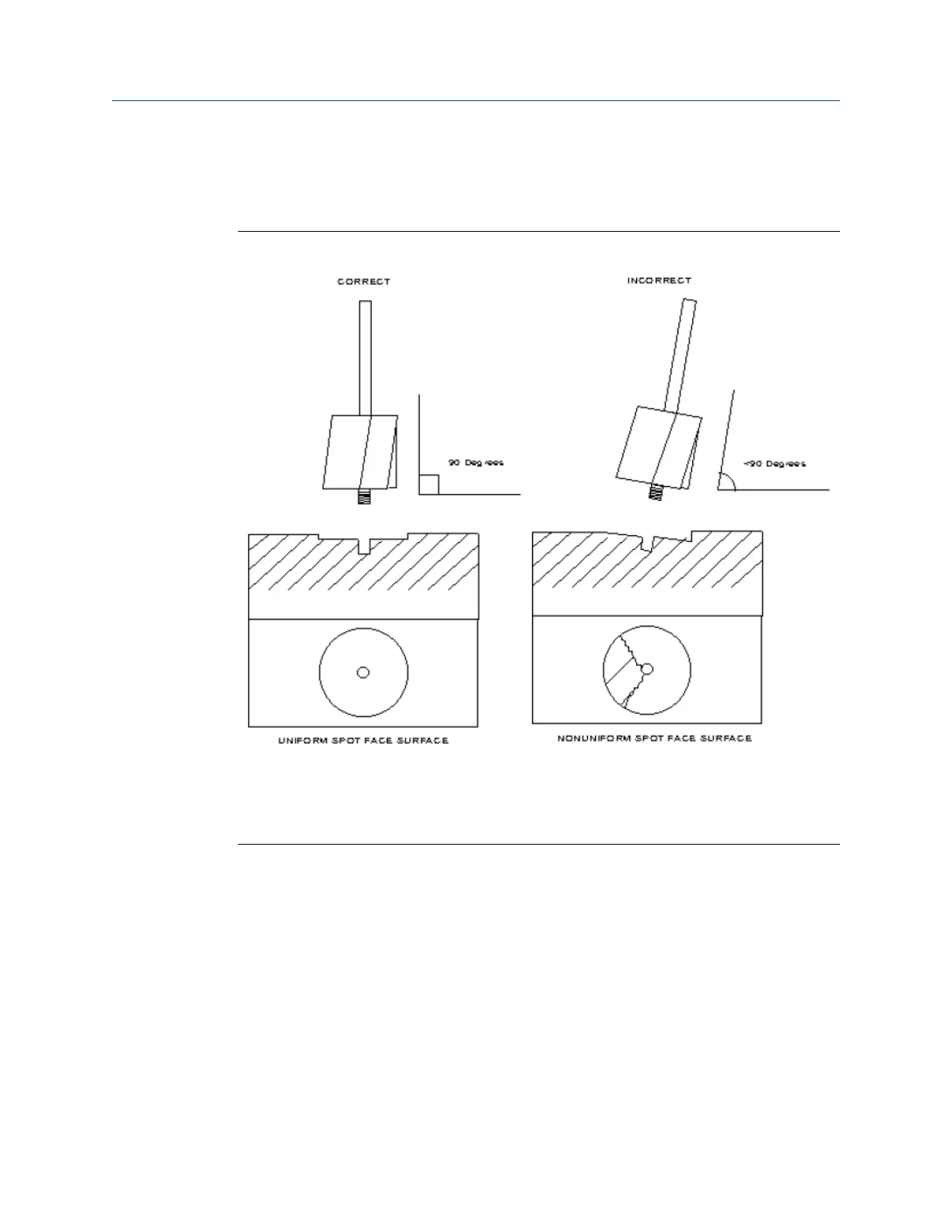

Correct and incorrect milling
Figure A-4:
Note
Properly align the drill so that the tapped hole is perpendicular to the mounting surface.
Specifications and reference data
MHM-97408, Rev 15
123
128
130
