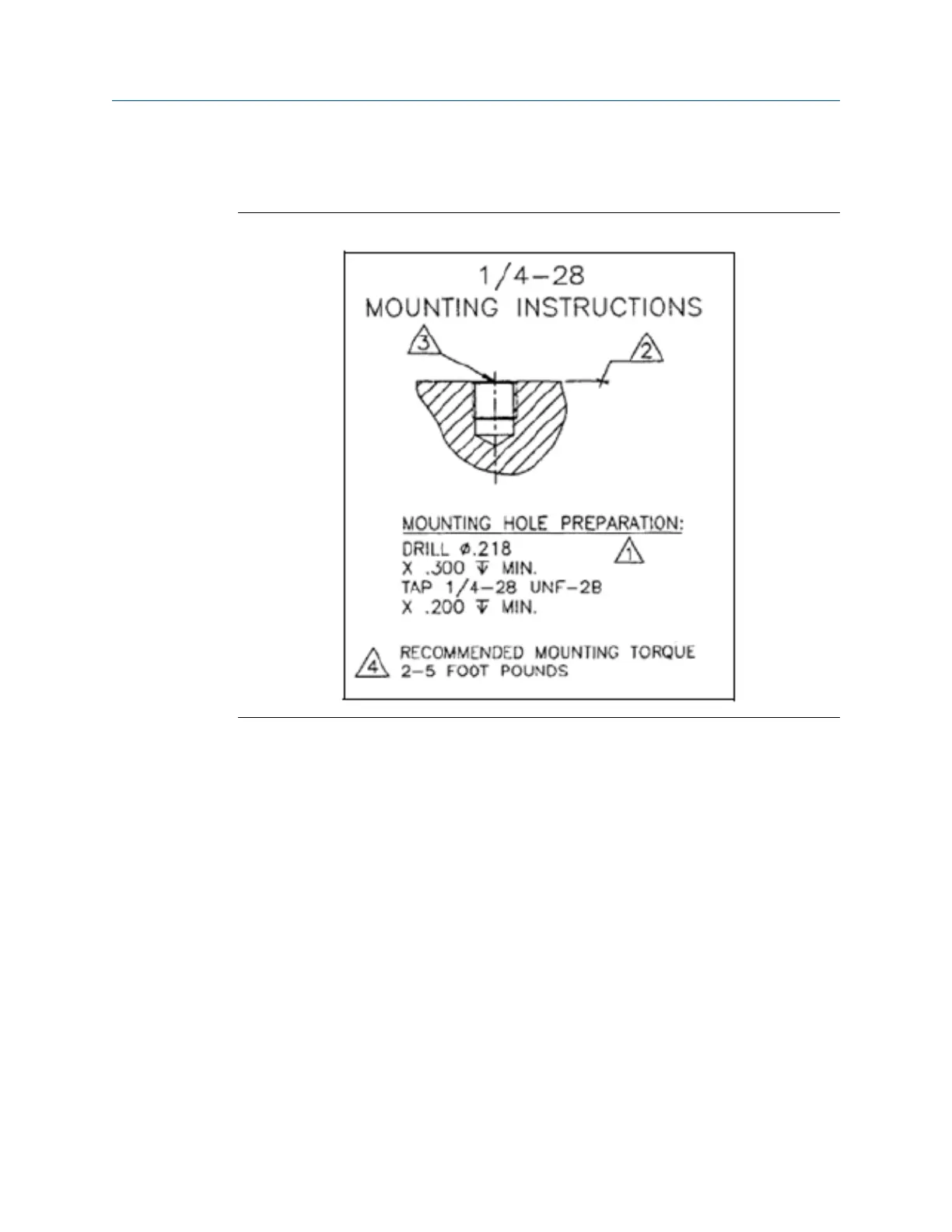

Figure A-5 shows the specifications for drilling, tapping a pilot hole, and torqueing the
mounting stud when mounting the sensor.
Accelerometer mountingFigure A-5:
Specifications and reference data
