14 Digitax ST Installation Guide
www.controltechniques.com Issue: 2

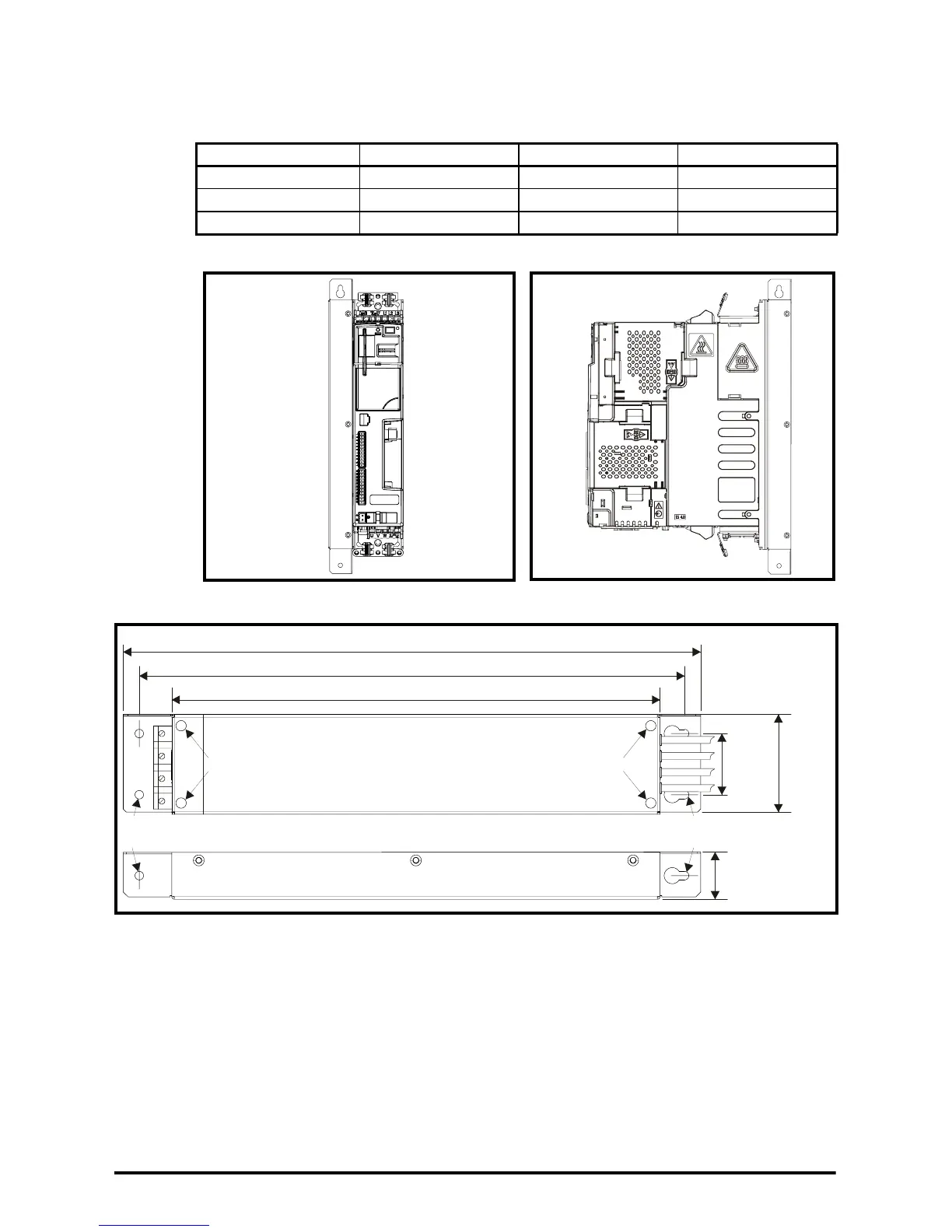

3.3 External EMC filter
There are three variants of external EMC filters available for the drive.
Table 3-1 Drive EMC filter details
Figure 3-7 Optional external EMC filter dimensions (all variants)
Figure 3-7 shows a 3 phase filter. For a single phase filter, there are only 3 input
terminals (L1, N, ground) and 3 output cables (L1, N, ground).
Drive No. of phases CT part no. Schaffner part no.
DST120X 1 4200-6000 FS23072-19-07
DST120X 3 4200-6001 FS23073-17-07
DST140X 3 4200-6002 FS23074-11-07
Figure 3-5 Bookcase mounting Figure 3-6 Footprint mounting
29mm (1.14in)
359mm
