22 Digitax ST Installation Guide
www.controltechniques.com Issue: 2
4.4.1 Encoder connections
Before using the encoder connectors for the first time, the break-outs need removing as
shown in Figure 4-8.

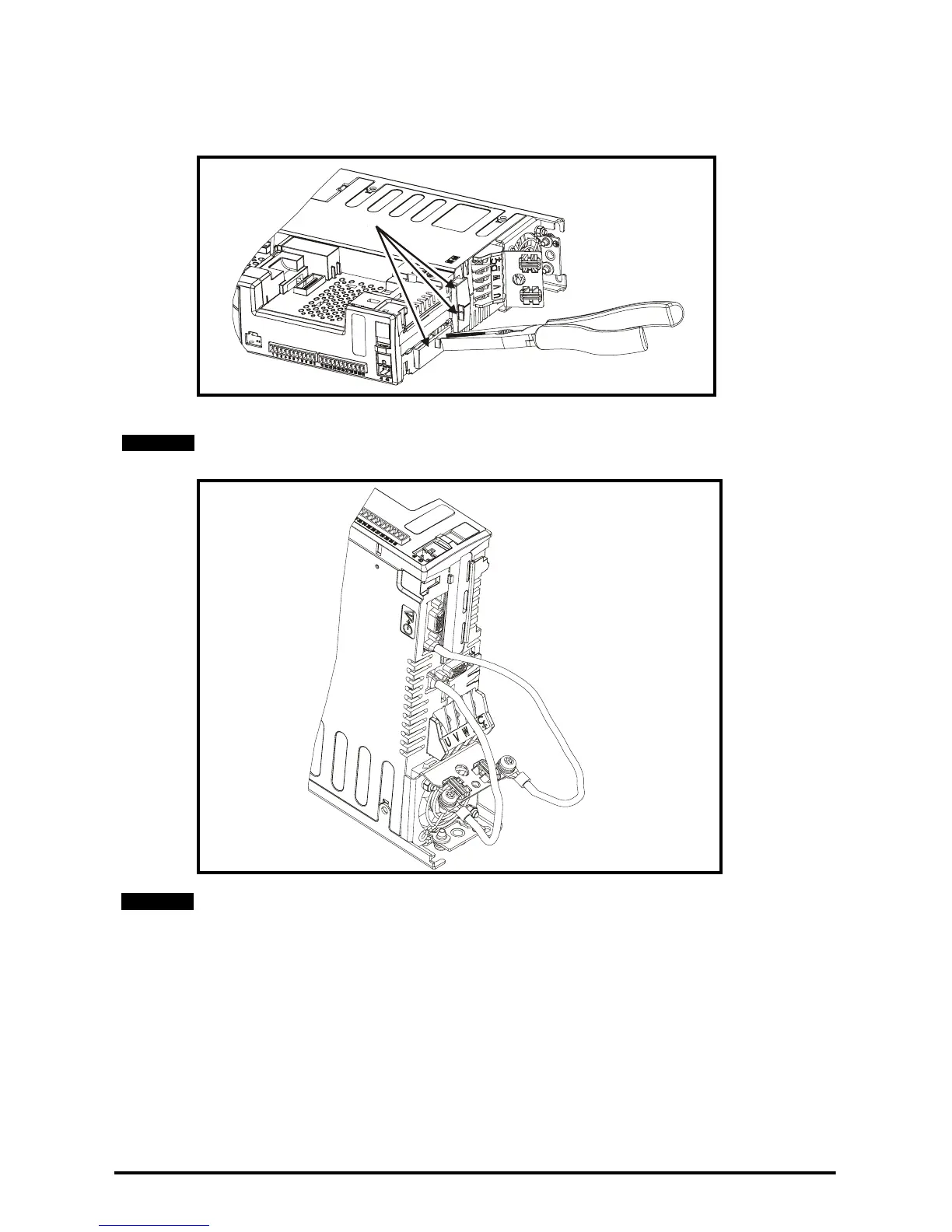

Figure 4-8 Access to encoder connections
After removing the break-outs, ensure that the ground tab is connected to ground.
Figure 4-9 Connecting the encoder ground tab to the EMC bracket
Break-outs
Do not remove break-out if the connections are not required.
NOTE
The size of the connecting cable between the encoder ground tab and the EMC bracket
should be equal to the input cable.
NOTE
