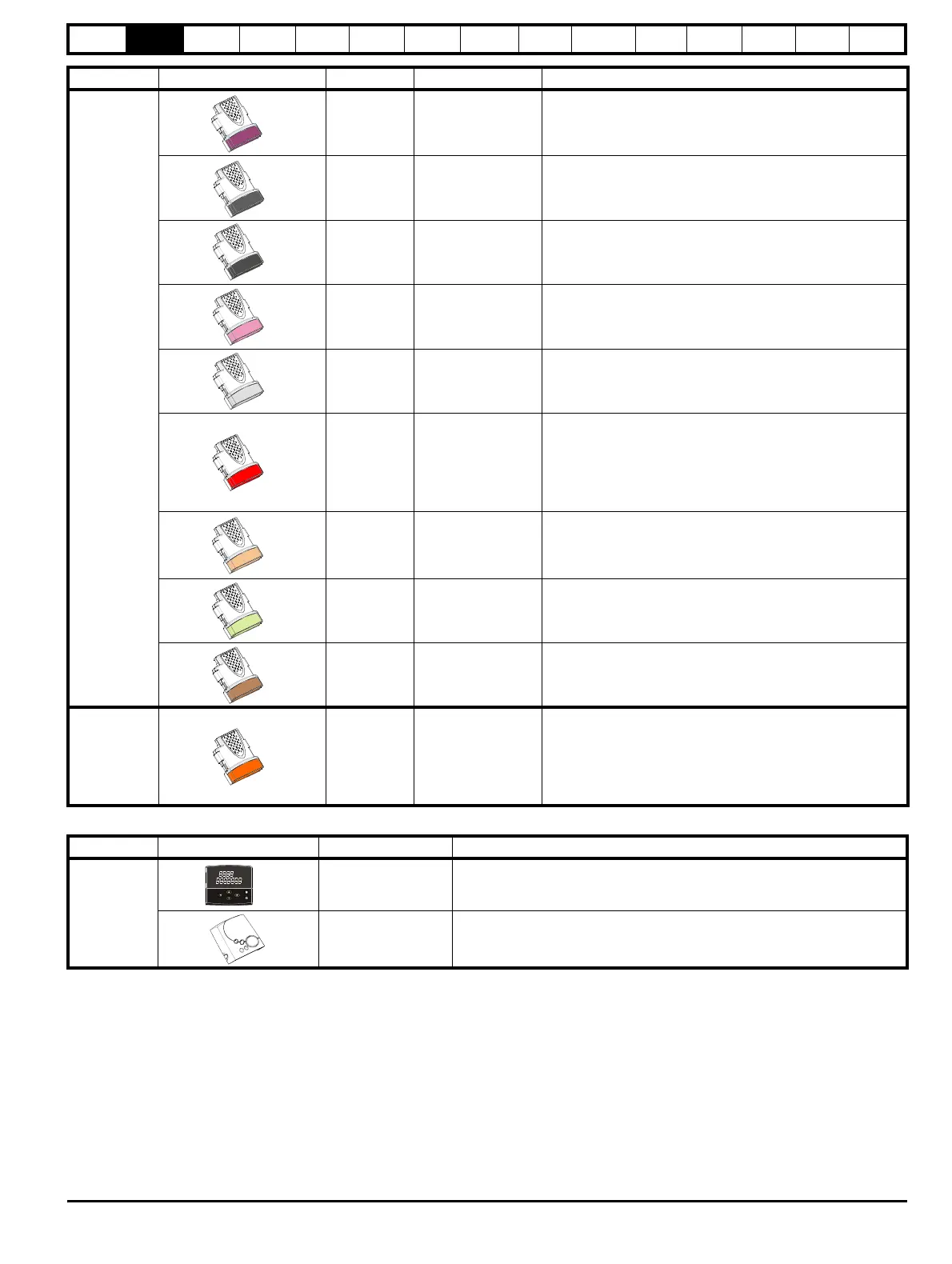

Table 2-3 Keypad identification
Fieldbus
Purple
SM-PROFIBUS-DP-
V1
Profibus option
PROFIBUS DP adapter for communications with the drive
Medium Grey SM-DeviceNet
DeviceNet option
Devicenet adapter for communications with the drive
Dark Grey SM-INTERBUS
Interbus option
Interbus adapter for communications with the drive
Pink SM-CAN
CAN option
CAN adapter for communications with the drive
Light Grey SM-CANopen
CANopen option
CANopen adapter for communications with the drive
Red SM-SERCOS
SERCOS option
Class B compliant. Torque velocity and position control modes
supported with data rates (bit/sec): 2 MB, 4 MB, 8 MB and 16
MB.
Minimum 250 μsec network cycle time. Two digital high speed
probe inputs 1 μsec for position capture
Beige SM-Ethernet
Ethernet option
10 base-T / 100 base-T; Supports web pages, SMTP mail and
multiple protocols: DHCP IP addressing; Standard RJ45
connection
Pale Green SM-LON
LonWorks option
LonWorks adapter for communications with the drive
Brown Red SM-EtherCAT
EtherCAT option
EtherCAT adapter for communications with the drive
SLM Orange SM-SLM
SLM interface
The SM-SLM allows SLM feedback to be connected directly to
the Digitax ST drive and allows operation in either of the
following modes:
• Encoder only mode
• Host mode
Type Solutions Module Color Name Further Details
Type Keypad Name Further Details
Keypad
Digitax ST Keypad
LED keypad option
Keypad with a LED display
SM-Keypad Plus
Remote keypad option
Keypad with an alpha-numeric LCD display with Help function
