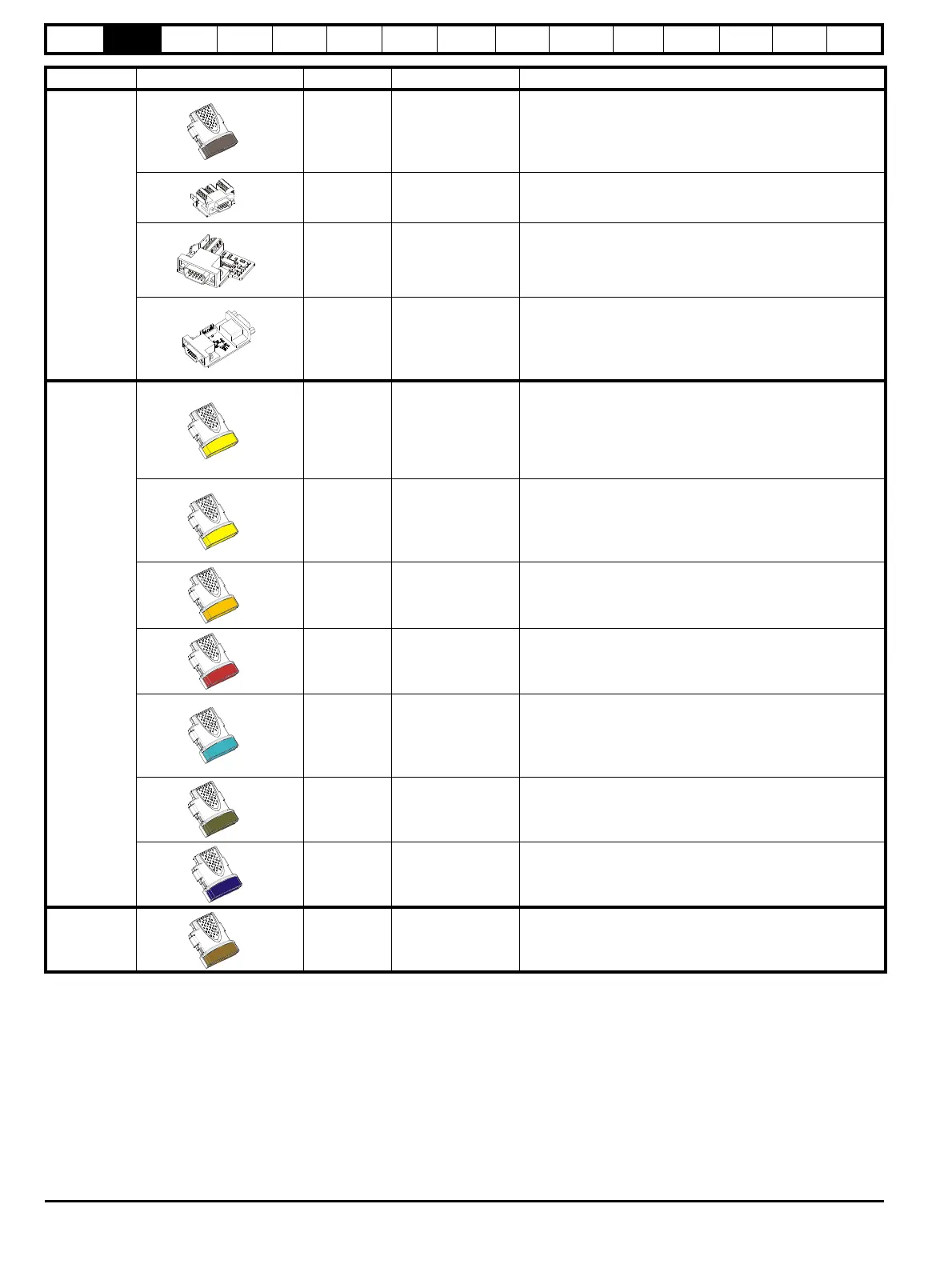

Dark Brown
SM-Encoder Output
Plus
Incremental encoder interface
Feedback interface for incremental encoders without
commutation signals.
Simulated encoder output for quadrature, frequency and
direction signals
N/A
15-way D-type
converter
Drive encoder input converter
Provides screw terminal interface for encoder wiring and spade
terminal for shield
N/A
Single ended
encoder interface
(15 V or 24 V)
Single ended encoder interface
Provides an interface for single ended ABZ or UVW encoder
signals, such as those from hall effect sensors. 15 V and 24 V
versions are available.
N/A
ERN1387 Encoder
Interface Board
ERN1387 Encoder Interface Board
Provides an interface for Heidenhain ERN1387 and ERN487
SinCos encoder which use a single SinCos cycle per revolution
commutation track. A SM-Universal Encoder Plus module is
required to use this interface board.
Automation
(I/O
Expansion)
Yellow SM-I/O Plus
Extended I/O interface
Increases the I/O capability by adding the following to the
existing I/O in the drive:
Yellow SM-I/O 32
Extended I/O interface
Increase the I/O capability by adding the following to the
existing I/O in the drive:
• High speed digital I/O x 32
• +24 V output
Dark Yellow SM-I/O Lite
Additional I/O
1 x Analog input (±10 V bi-polar or current modes)
1 x Analog output (0-10 V or current modes)
3 x Digital input and 1 x Relay
Dark Red SM-I/O Timer
Additional I/O with real time clock
As per SM-I/O Lite but with the addition of a Real Time Clock
for scheduling drive running
Turquoise SM-I/O PELV
Isolated I/O to NAMUR NE37 specifications
For chemical industry applications
1 x Analog input (current modes)
2 x Analog outputs (current modes)
4 x Digital input / outputs, 1 x Digital input, 2 x Relay outputs
Olive SM-I/O 120V
Additional I/O conforming to IEC 61131-2 120 Vac
6 digital inputs and 2 relay outputs rated for 120 Vac operation
Cobalt Blue
SM-I/O 24V
Protected
Additional I/O with overvoltage protection up to 48 V
2 x Analog outputs (current modes)
4 x Digital input / outputs, 3 x Digital inputs, 2 x Relay outputs
Automation
(Applications)
Golden
brown
SM-Register
Applications Processor
2
nd
processor for running position capture functionality with
CTNet support.
Type Solutions Module Color Name Further Details
• Digital inputs x 3 • Analog output (voltage) x 1
• Digital I/O x 3 • Relay x 2
• Analog inputs (voltage) x 2
