Digitax ST User Guide 11
Issue: 5
2.6 Options

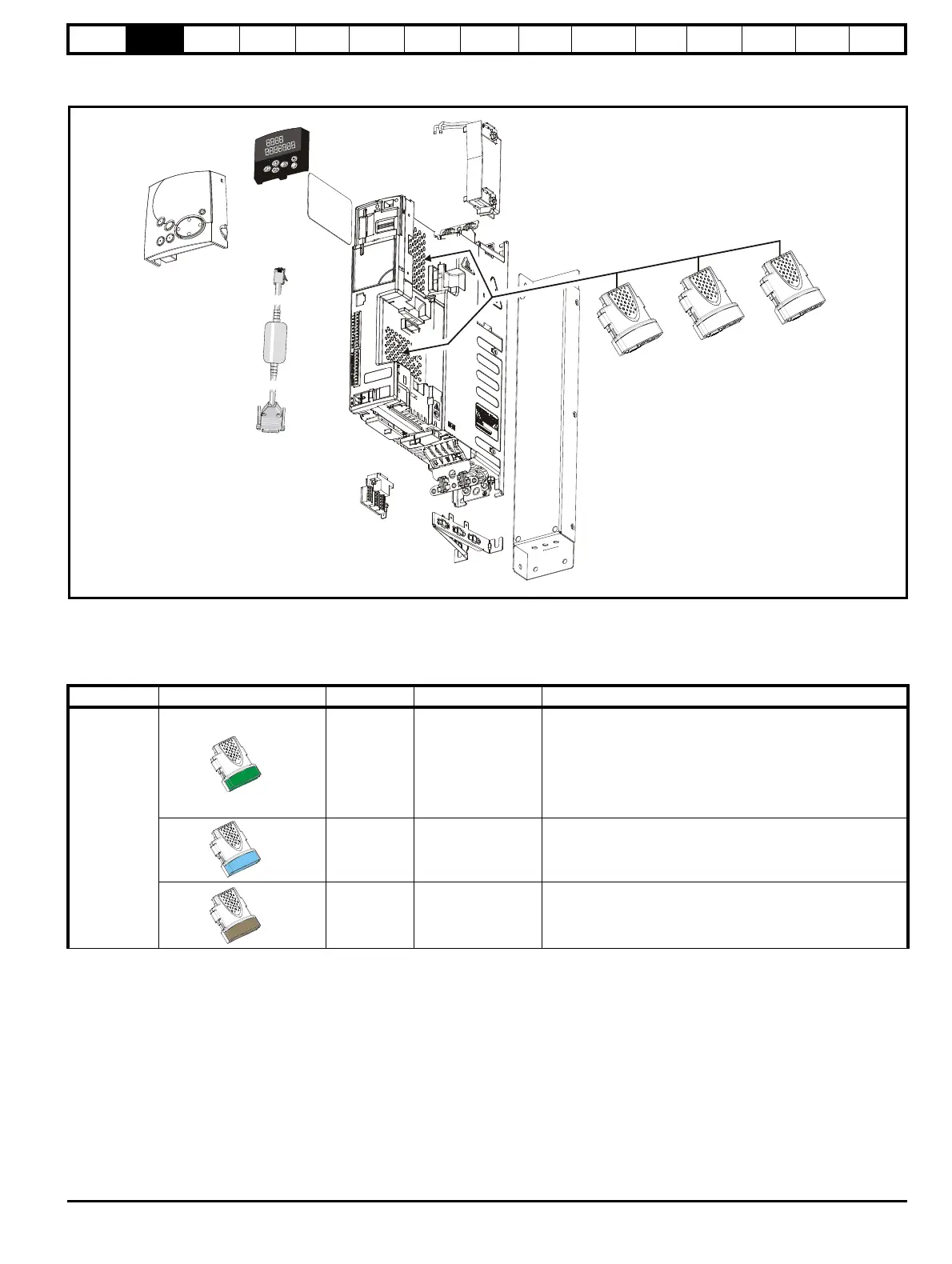

Figure 2-4 Options available with Digitax ST
* A SMARTCARD is provided as standard. For further information refer to Chapter 10 SMARTCARD Operation on page 101.
All Solutions Modules are color-coded in order to make identification easy. The following table shows the color-code key and gives further details on
their function.
Table 2-2 Solutions Module identification
SM-Keypad Plus
SMARTCARD*
DST Keypad
CT Comms
cable
External footprint/
bookcase EMC
filter
Internal
braking
resistor
Grounding
bracket
15-way
D-type
converter
I/O Expansion
Applications
Automation
Fieldbus
Feedback
S
l
o
t
2
S
l
o
t
1
*
Type Solutions Module Color Name Further Details
Feedback
Light Green
SM-Universal
Encoder Plus
Universal Feedback interface
Feedback interface for the following devices:
Light Blue SM-Resolver
Resolver interface
Feedback interface for resolvers.
Simulated quadrature encoder outputs
Brown SM-Encoder Plus
Incremental encoder interface
Feedback interface for incremental encoders without
commutation signals.
No simulated encoder outputs available
Inputs Outputs
• Incremental encoders • Quadrature
• SinCos encoders • Frequency and direction
• SSI encoders • SSI simulated outputs
• EnDat encoders
