Emerson dixell XC650CX User Manual

1592001431 XC650CX GB r3.5 21.07.2020 XC650CX 36/56

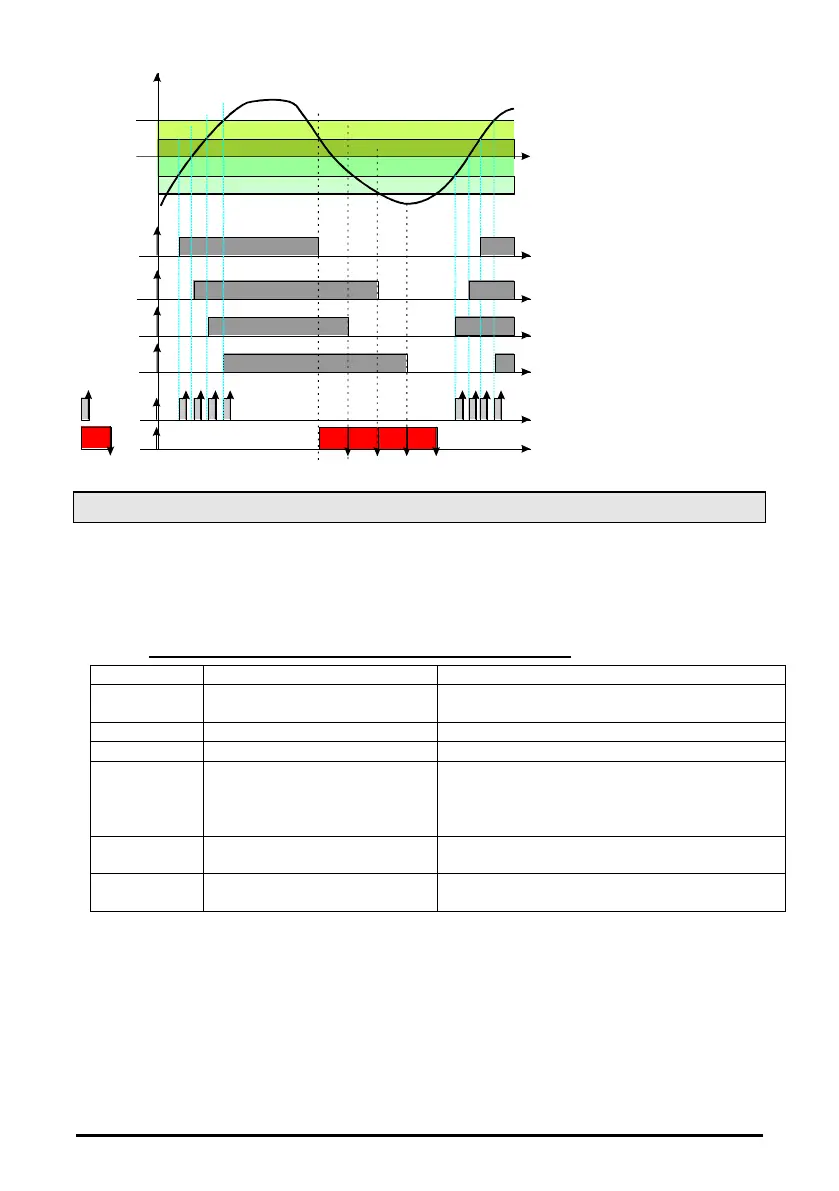

F1
F2
F3
F4
SETF
Set+Pb/2
Set-Pb/2
ZIC
Set+Pb/4
Set-Pb/4
Fon
FoF
ALL LOADS ON
ALL LOADS OFF
21.1 Condenser with Inverter or Eci Fans–Analog Output Setting
This configuration is used when all fans of the condensing group are ECI fans or driven by one
inverter or a chopped phase driver.
The capacity used by the inverter is proportional to the delivery pressure value inside the
regulation band (SETF-Pb/2÷ SETF+Pb/2.
21.1.1 Condenser fan configurations and Parameters
Parameter
Description
Action
oA(i) = inF
Set 1 relay for inverter
One relay is used to enable the action of the
inverter.
AoC = tEn
Analog output setting
Set the output as 0-10V
AoF = InF
Analog output function
Set the output to drive ECI or inverter fan
AOM =0
Minimum value for analog
output
The minimum voltage is 0V.
NOTE: verify on the inverter of ECI fan of
chopped phase driver that with this input a
proper output is supplied to the fan.
AOt = 5
Time of analog output at max
after the start
To start the fan the controller supplies 10V
output for 5s, then starts standard regulation
MPM = 100
Maximum % variation per
minute
The analog output takes 1 min to move from
the min to the maximum
