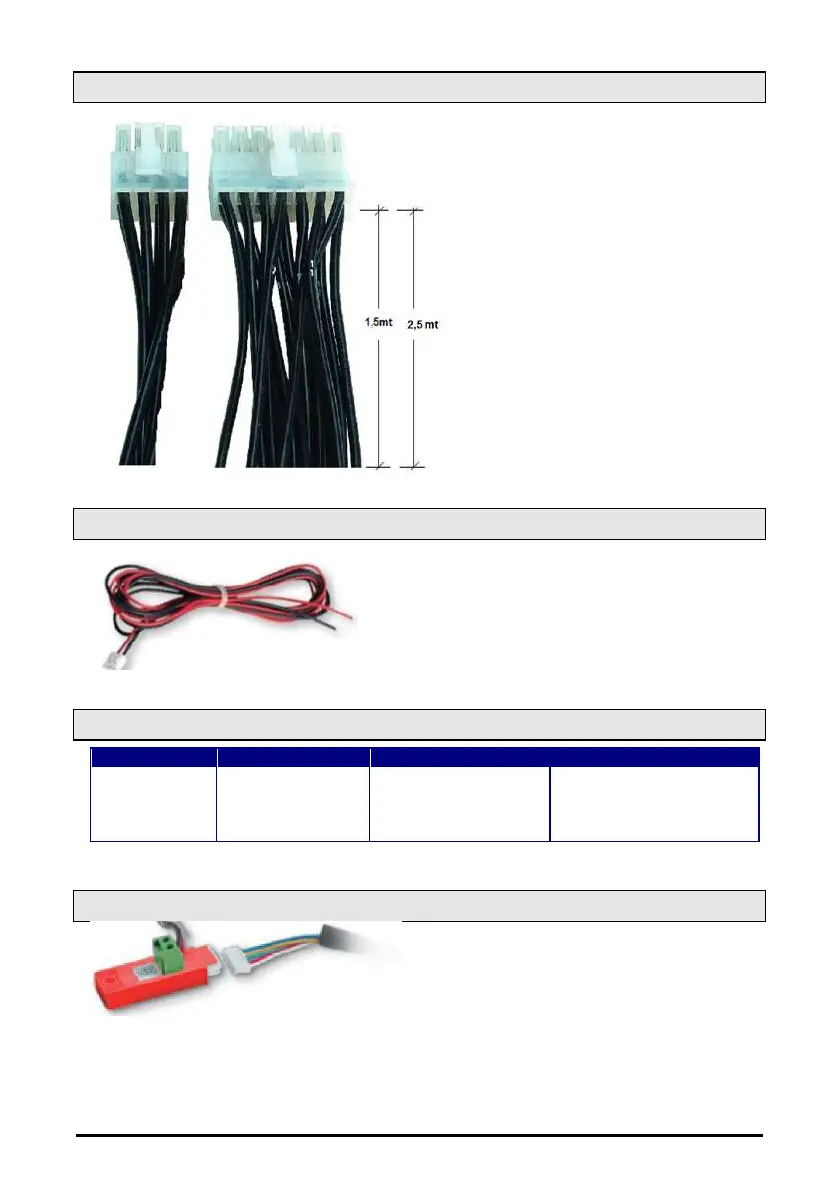

4.1 CW15KIT and CW25KIT: wiring kits
The XC650CX is provided with 2
socket connectors with 14 and 12
pins.
For the wiring the CW15KIT (1.5m
cable length) or CWC25KIT (2.5m
cable length) have to be used.
4.2 CABCJ15 or CABCJ30: 2 PIN connectors
NOTE:
Use the connection cable CABCJ15 (1.5m lenght) or the
CABCJ30 (3.0m lenght) for the:
- HP digital input (31-32),
- D.I.7 digital input 7 (33-34),
- 0-10Vdc or 4-20mA analogue output (29-30)
- oA6, 12Vdc/40mA digital output (27-28)
4.3 PP07, PP11, PP30 PP50: 4÷20mA pressure transducers
NAME
CABLE LENGTH
RANGE
DIXELL CODE
PP07
2,0MT
-0,5+7 bar rel FE
BE009302 00
PP11
2,0MT
-0,5+11 bar rel FE
BE009302 07
PP30
2,0MT
0+30 bar rel FE
BE009302 04
PP50
2,0MT
0+50 bar rel FE
BE009302 05
4.4 XJ485CX: TTL / RS485 serial converter
The XJ485CX is a TTL/RS485 external
converter. Insert it into the TTL receptacle to
convert the TTL output into a RS485 (+) and (-)
signal for the monitoring system MODBUS_RTU
compatible. (XWEB).
