May 2020
Installation, Operation and Maintenance Manual
VCIOM-15204-EN Rev. 1
4
OT OC
Section 4: Wiring Diagrams

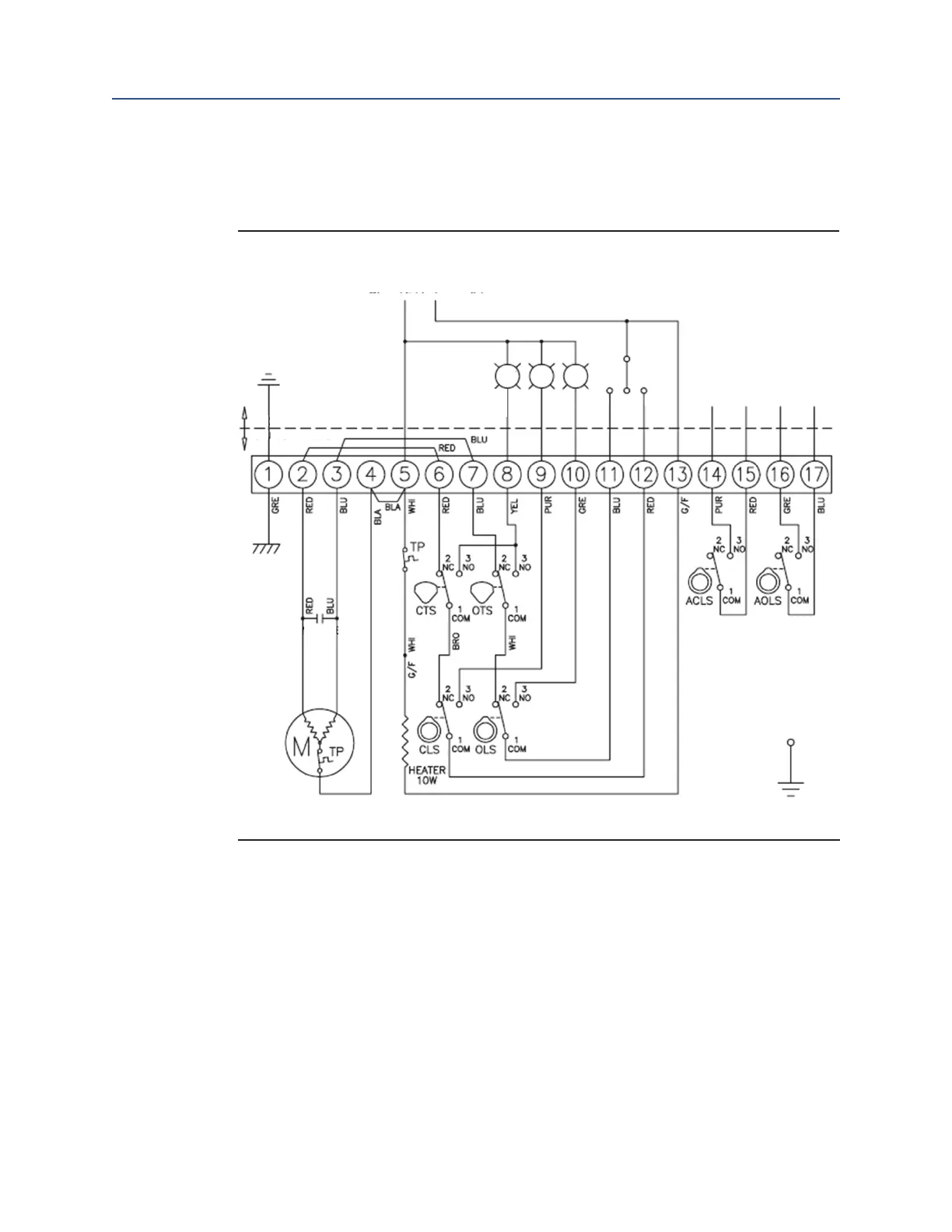

Figure 3 AC Single Phase Power Model HQ 015 - 300
POWER
(V)
INCOMING
AC 1PH
LIVE
NEUTRAL
OVER
TORQUE
LAMP
CLOSE
LAMP
OPEN
LAMP
OPEN STOP CLOSE
AUX. CONTACT
2 EXTRA SWITCHES
MAX. 250 V AC 16 A
SUGGESTED CUSTOMERS WIRING
ACTUATORS WIRING
CONDENSER
BASE
EARTH
Section 4: Wiring Diagrams
