Emerson EIM HQ Series User Manual

May 2020
Installation, Operation and Maintenance Manual
VCIOM-15204-EN Rev. 1
18
Section 17: Mounting Base Detail

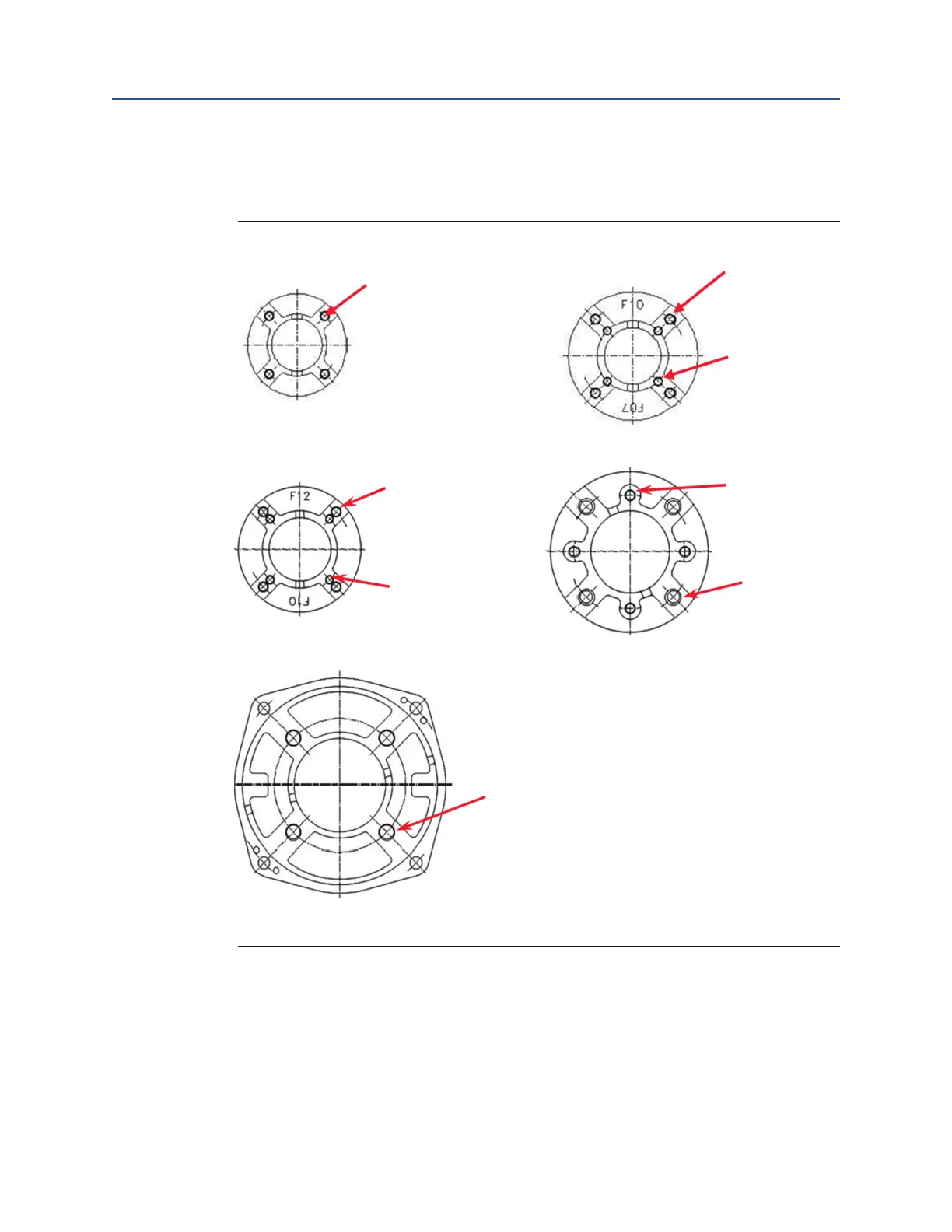

Figure 7 Mounting Base Detail
4-M8 Tap, Dp
12 P.C.D Ø70
(ISO 5211 F07)
4-M12 Tap, Dp 18
P.C.D Ø125
(ISO 5211 F12)
HQ-008/10
HQ-030/050/060
4-M10 Tap, Dp 18
P.C.D Ø125
(ISO 5211 F10)
4-M20 Tap, Dp 30
P.C.D Ø165
(ISO 5211 F16)
HQ-200/300
4-M16 Tap, Dp 24
P.C.D Ø140
(ISO 5211 F14)
HQ-080/120
4-M12 Tap, Dp 18
P.C.D Ø125
(ISO 5211 F12)
HQ-015/020
4-M8 Tap, Dp 12
P.C.D Ø70
(ISO 5211 F07)
4-M10 Tap, Dp 15
P.C.D Ø102
(ISO 5211 F10)
Section 17: Mounting Base Detail
Mounting Base Detail
